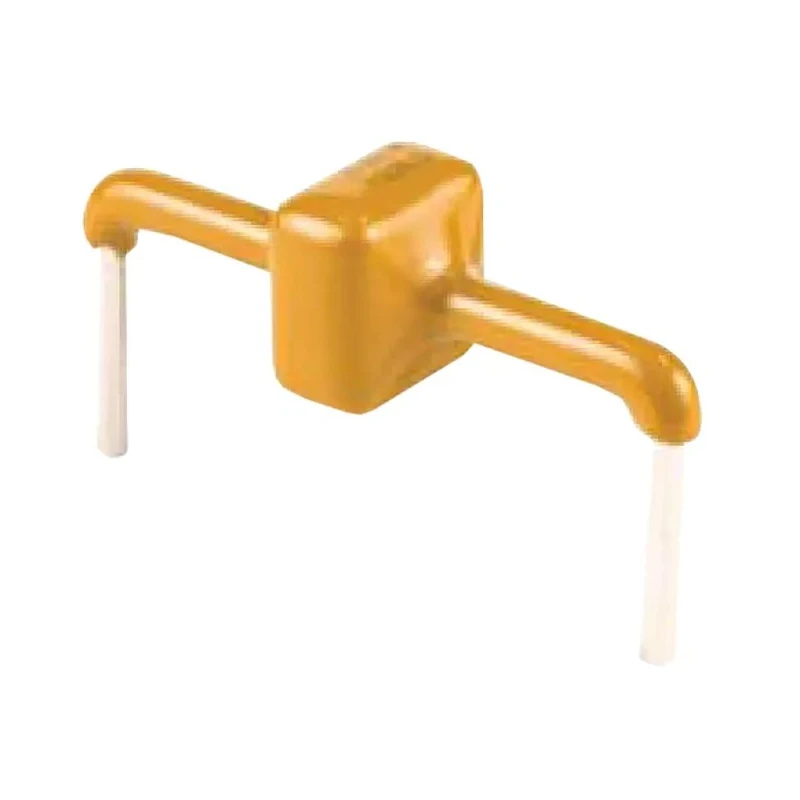

Bourns 1-Element Bi-Directional TVS Diode, Through Hole, 2-Pin, 16V Breakdown, 3kA Pulse PTVS3-015C-TH
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 10.8mm |
| Length | 4mm |
| Model | PTVS3-015C-TH |
| Width | 9.3mm |
| Mount Type | Through Hole |
| Series | PTV |
| Maximum Operating Temperature | 125°C |
| Package Type | PTVS3 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 28V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 16V |
| Maximum Reverse Stand-off Voltage Vwm | 15V |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 3kA |
| Maximum Reverse Leakage Current | 10μA |
Key Features
- Offers 3kA peak pulse current protection for voltage transients.
- Features a breakdown voltage of 16V with a maximum reverse standoff voltage of 15V.
- Clamping voltage is rated at 28V ensuring low voltage spike suppression.
- Constructed with a single diode element in a 2-pin PTVS3 package.
- Operates reliably within temperature range of -40°C to 125°C.
- Complies with RoHS standards for environmental safety.
- Low maximum reverse leakage current of 10μA minimizes standby power loss.
- Provides ESD protection suitable for industrial and electronics applications.
Product Description
Bourns PTVS3-015C-TH is a high current 1-element bi-directional TVS diode designed for protecting sensitive electronics and electrical circuits from damaging voltage transients. It is part of the PTVS3-xxxC series suitable for through-hole mounting, ideal for high power DC bus clamping applications where surge capability up to 3kA (8/20μs) is required.
This TVS Diode features a 16V minimum breakdown voltage with a maximum reverse standoff voltage of 15V and a low clamping voltage of 28V, which ensures effective voltage spike suppression to safeguard connected components.
Constructed with a compact 2-pin PTVS3 package, it measures 10.8mm in height, 9.3mm in width, and 4mm in length, facilitating mounting into standard electronic assemblies. Operating temperature ranges from -40°C up to 125°C, enabling use in diverse industrial and electronic environments.
The device exhibits very low maximum reverse leakage current of 10μA and is RoHS compliant, ensuring environmentally-friendly manufacturing standards. It provides reliable electrostatic discharge (ESD) protection, making it suitable for industrial, laboratory, and consumer electronics applications requiring robust transient voltage suppression.
Applications include power supply and distribution protection, semiconductor safeguarding, and general electronic component surge protection in industrial, manufacturing, and commercial electronics settings.
Offers 3kA peak pulse current protection for voltage transients. Features a breakdown voltage of 16V with a maximum reverse standoff voltage of 15V. Clamping voltage is rated at 28V ensuring low voltage spike suppression.
Constructed with a single diode element in a 2-pin PTVS3 package. Operates reliably within temperature range of -40°C to 125°C. Complies with RoHS standards for environmental safety. Low maximum reverse leakage current of 10μA minimizes standby power loss.
Height of 10.8mm, width of 9.3mm, and length of 4mm for easy PCB integration. Provides ESD protection suitable for industrial and electronics applications. Discover more advanced semiconductor devices and electronic components across EnvMart's extensive catalog, engineered to meet stringent industrial standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breakdown voltage of this model is 16V, with a maximum reverse standoff voltage of 15V.
It can handle a maximum peak pulse current of 3kA.
This unit measures 10.8mm in height, 9.3mm in width, and 4mm in length.
The clamping voltage is rated at 28V, ensuring effective voltage spike suppression.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum reverse leakage current is 10μA, which minimizes standby power loss.
This model is constructed with a single diode element.
It is designed for through-hole mounting.
It provides ESD protection suitable for industrial, laboratory, and consumer electronics applications.
Yes, it complies with RoHS standards for environmental safety.
The test current is specified at 10mA.
This diode is part of the PTV series.
