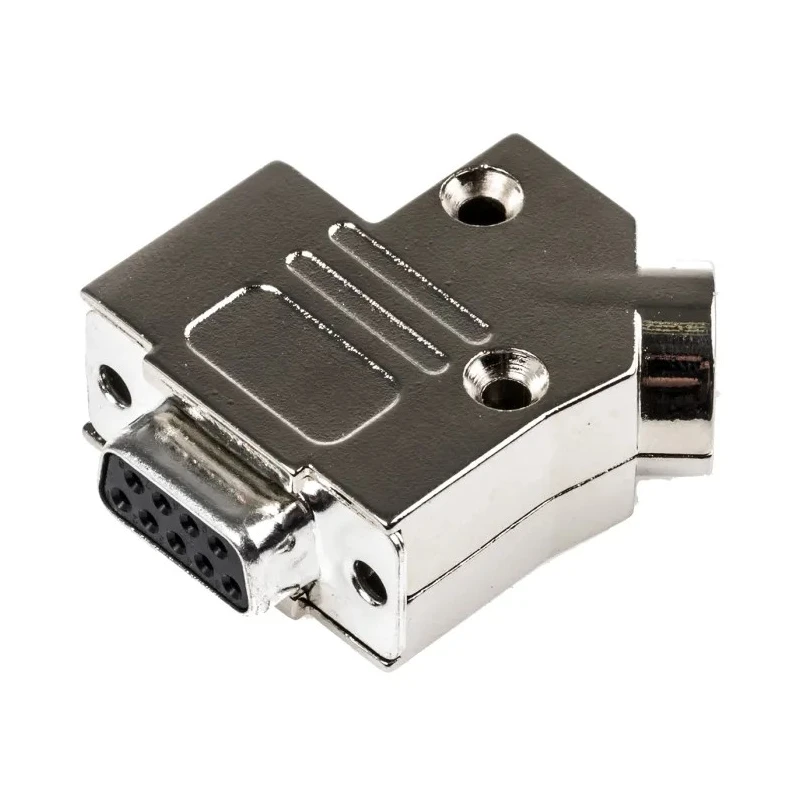

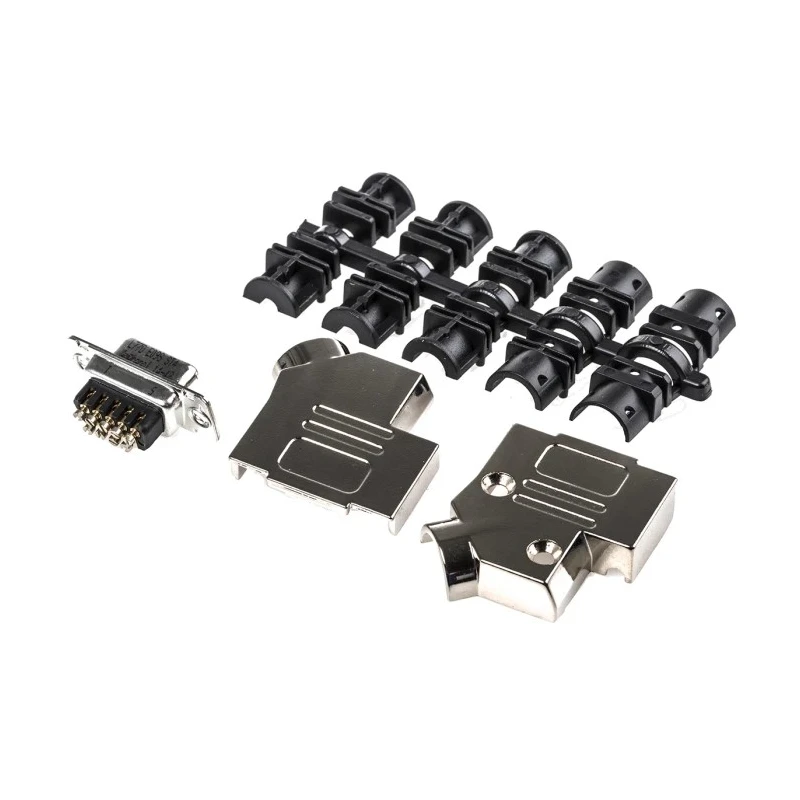

Amphenol Communications Solutions 9 Way Straight Panel Mount Female D-Sub Connector L77DE09SST4
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 7.5A |
| Model | L77DE09SST4 |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Bronze |
| Termination Type | Screw |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | UL94-0, RoHS |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | E09 |
| Connector Type D | D-Sub |
Key Features
- Standard 9 way shell size with female contact layout for versatile connectivity.
- Constructed with a durable steel housing to provide enhanced mechanical strength.
- Rated for 7.5A current and 300V voltage for robust power handling.
- Screw termination ensures secure and stable wiring connections.
- Gold plated bronze contacts provide excellent conductivity and corrosion resistance.
- Designed to operate within a temperature range from -55°C to 85°C.
- Complies with UL94-0 and RoHS standards for safety and environmental compliance.
- Panel mount orientation with straight connector design for ease of assembly.
Product Description
Amphenol Communications Solutions L77DE09SST4 9 Way Straight Panel Mount Female D-Sub Connector is engineered for high-quality electrical and electronic applications requiring reliable signal transmission and power handling. This connector features a standard 9 way shell size and layout, compatible with many industry-standard devices and assemblies.
The housing is crafted from robust steel material, ensuring mechanical stability and durability under demanding operating conditions. The connector is designed to handle a current of 7.5A and a voltage rating of 300V, suitable for medium-power electronic equipment.
Contacts are made from bronze with gold plating, providing superior electrical conductivity and excellent resistance to corrosion and wear. Termination is via screw type, offering secure and reliable wiring connections for panel mount applications.
Operating temperature range from -55°C to 85°C allows deployment in various environmental conditions without performance degradation. The connector complies with UL94-0 flammability rating and RoHS environmental regulations, emphasizing safety and sustainability.
This product is ideal for use in industrial electronics, power connectors, communication systems, and other commercial and laboratory equipment requiring precise and durable interconnect solutions.
Standard 9 way shell size with female contact layout for versatile connectivity. Constructed with a durable steel housing to provide enhanced mechanical strength. Rated for 7.5A current and 300V voltage for robust power handling.
Screw termination ensures secure and stable wiring connections. Gold plated bronze contacts provide excellent conductivity and corrosion resistance. Designed to operate within a temperature range from -55°C to 85°C. Complies with UL94-0 and RoHS standards for safety and environmental compliance.
Panel mount orientation with straight connector design for ease of assembly. Explore more high-quality connectors and components in the Power Connectors category at EnvMart for your industrial and commercial electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7.5A and a voltage of 300V, making it suitable for medium-power electronic applications.
The housing is made from steel, while the contacts are bronze with gold plating for enhanced conductivity and corrosion resistance.
It operates within a temperature range from -55°C to 85°C, allowing for use in various environmental conditions.
Wiring is terminated via a screw type connection, ensuring secure and stable wiring for panel mount applications.
This model complies with UL94-0 for flammability and RoHS standards for environmental safety.
The connector features a straight orientation, designed for easy assembly in panel mount applications.
The L77DE09SST4 has a total of 9 contacts, designed in a female layout for versatile connectivity.
It is ideal for use in industrial electronics, power connectors, communication systems, and various commercial and laboratory equipment.
The contact size for this model is E09, which is standard for 9-way D-Sub connectors.
This connector is manufactured in China, as indicated by its country of origin.
It is classified as a D-Sub connector, specifically a 9-way straight panel mount female connector.
The gold plating on the bronze contacts provides excellent conductivity and resistance to corrosion, enhancing the connector's performance and longevity.
