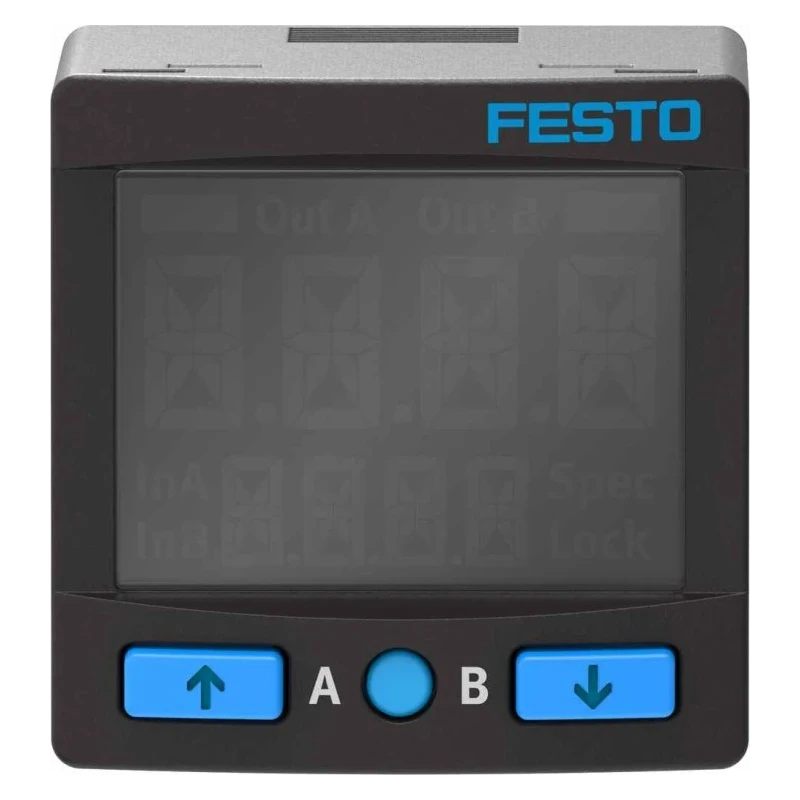

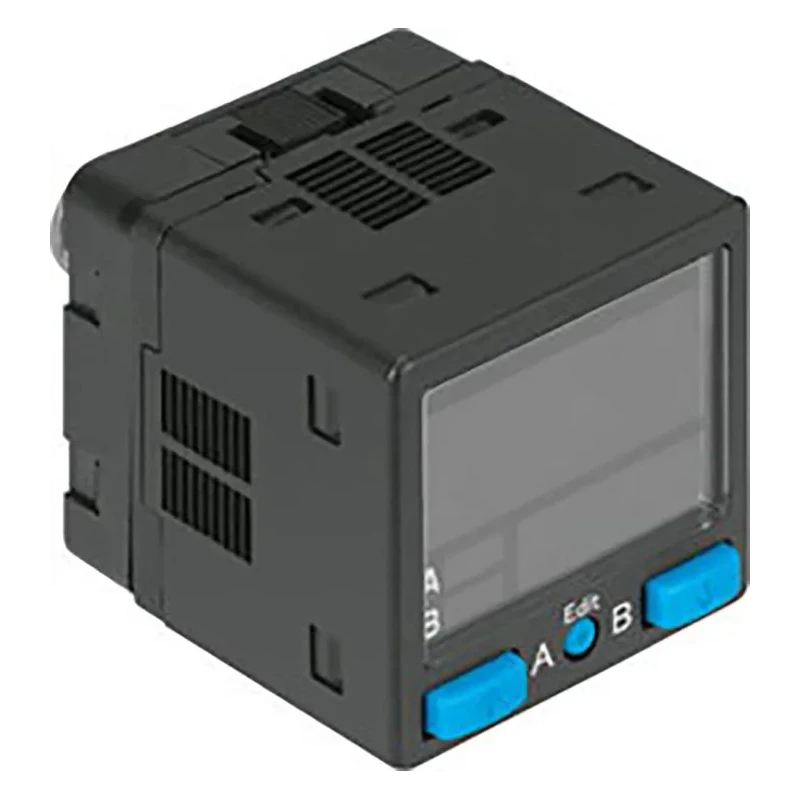

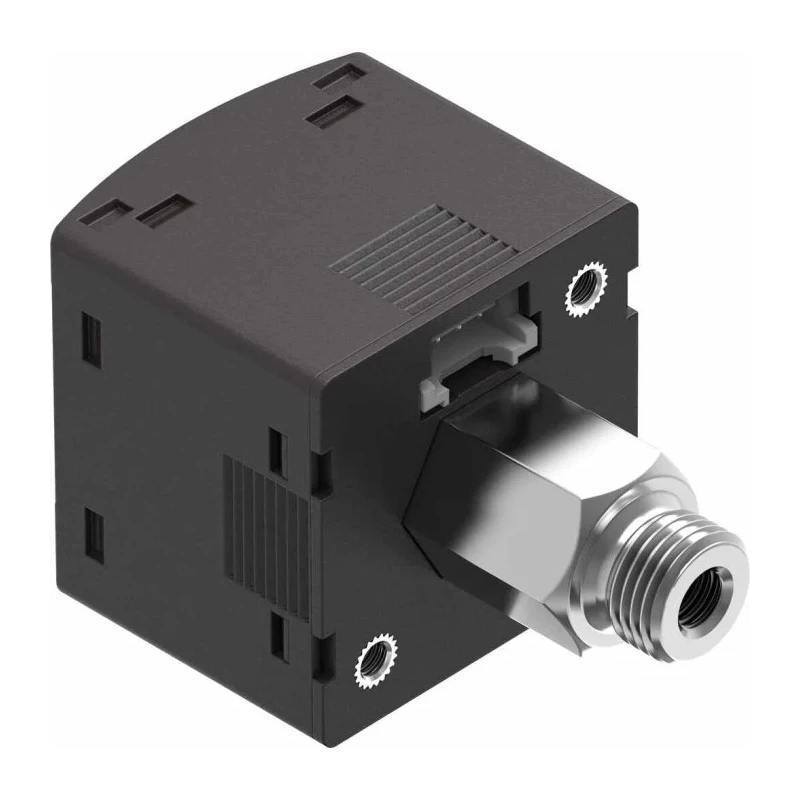

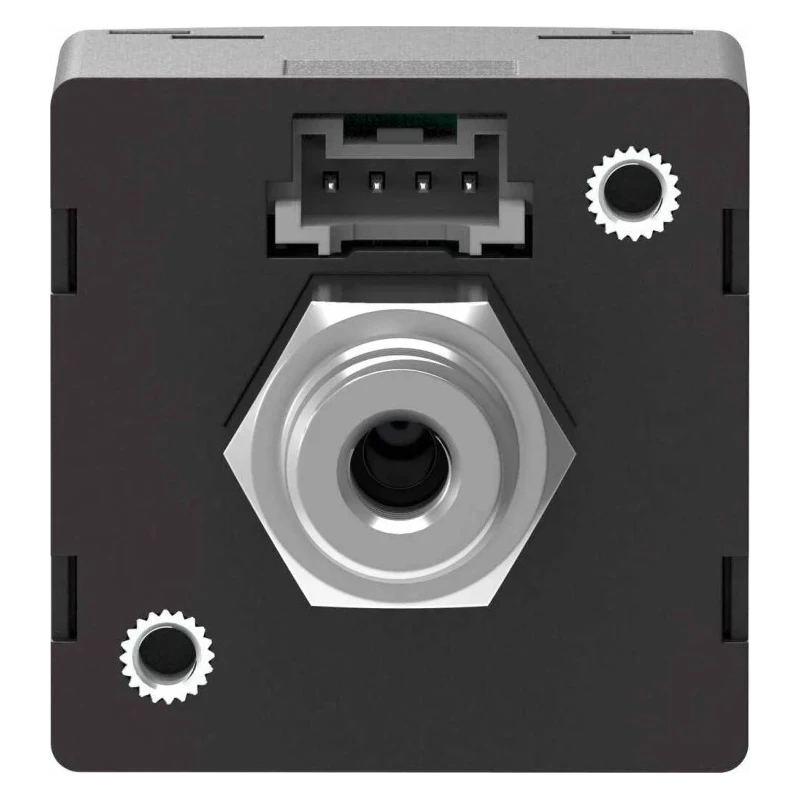

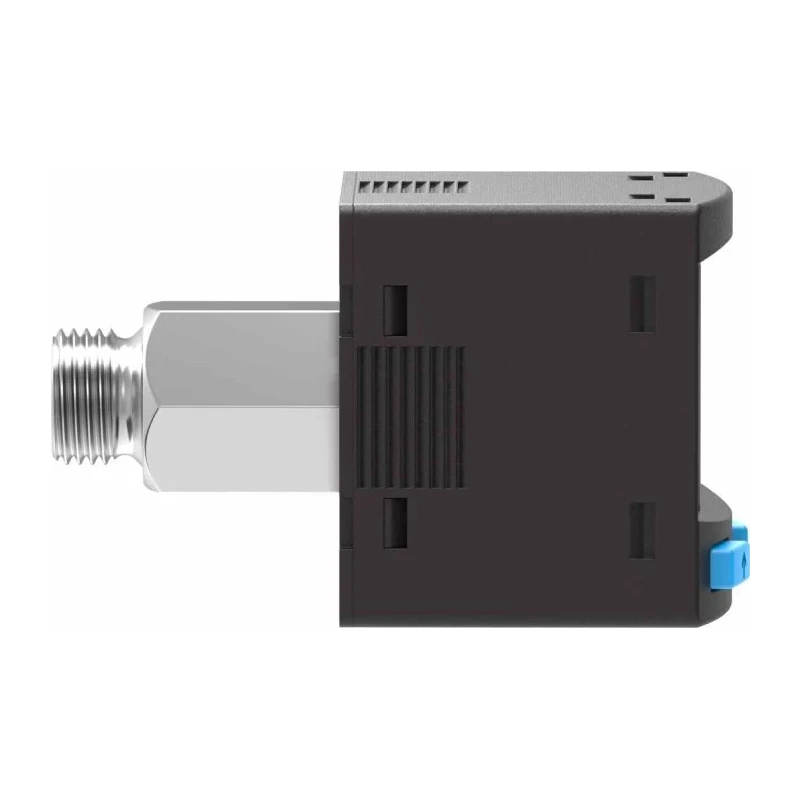

Festo Pneumatic Pressure Sensor IP40 15-30 V 1 bar 50 °C

Festo SPAN-B2R-G18M-PN-PN-L1 pneumatic pressure sensor is designed for precise monitoring of compressed air and non-corrosive gases in industrial environments. It supports relative pressure measurement based on a piezoresistive measuring cell, ensuring accuracy and reliability in various pneumatic applications.

The sensor operates within a voltage range of 15 to 30 volts and withstands operating temperatures from 0 °C up to 50 °C. It features an IP40 rating to protect against tampering with wires and screws, making it suitable for factory-floor installations.

The device offers a versatile range of electrical outputs including PNP and NPN switch outputs, with two output channels. Its compact 30 mm by 30 mm size, combined with a large, high-contrast two-line digital display, facilitates easy reading and configuration using teach-in functions.

Connection flexibility is supported through Gx, NPT, and Rx thread standards and both male and female port gender options. The sensor’s IO-link capability enables communication with controllers for remote monitoring and advanced diagnostics, enhancing maintenance and operational efficiency.

Typical use cases include industrial automation, pneumatic system performance monitoring, fluid power control, and process instrumentation where reliable air pressure sensing is critical. The device’s robustness and precise accuracy ratings of 1.5% to 2% allow for effective pressure threshold, range, or differential pressure settings.

High accuracy pressure measurement with 1.5% and 2% options. Wide operating voltage from 15 V to 30 V for flexible installation. IP40 rated housing protects against tampering. Operates reliably between 0 - 50 °C temperature range.

Supports relative pressure detection via piezoresistive cell. Compact 30 mm x 30 mm size with digital display interface. Multiple electrical output options: PNP and NPN switches. Standard connection threads: Gx, NPT, and Rx.

Includes IO-link for remote system integration. Suitable for industrial pneumatic, manufacturing, and process control applications.

This sensor is part of Festo’s Span series and is built in Bulgaria. It complies with RoHS standards, ensuring environmental safety. For more industrial measuring instruments and pneumatic sensors, explore the Pneumatic Pressure Sensor category at EnvMart.
