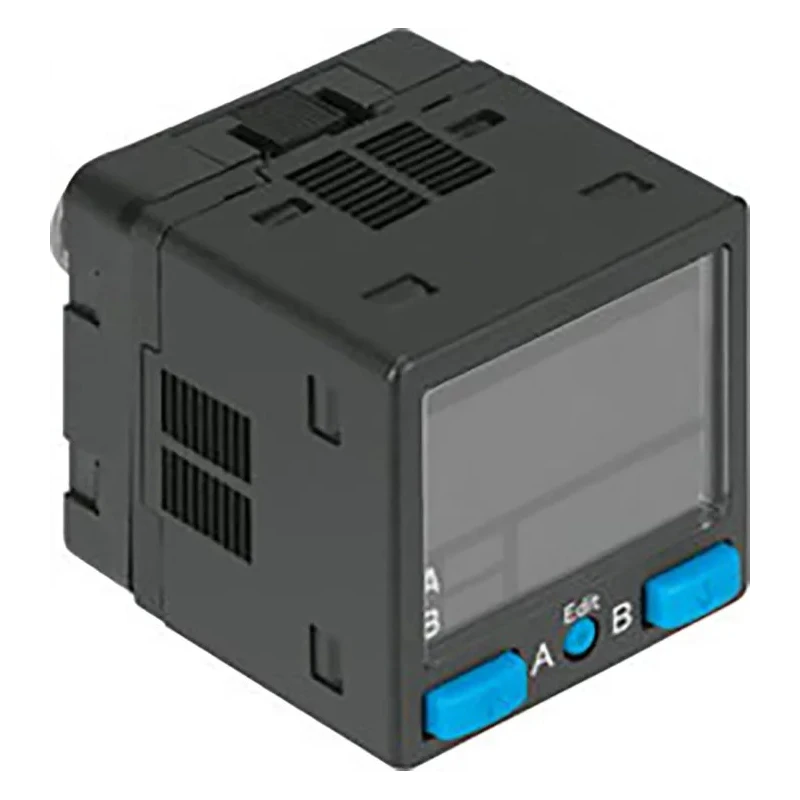

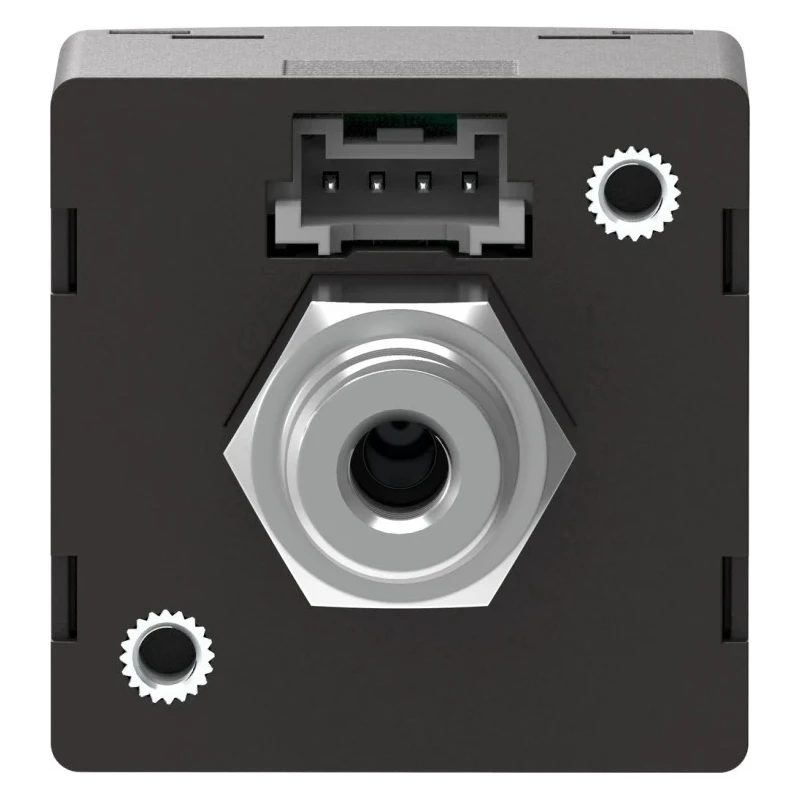

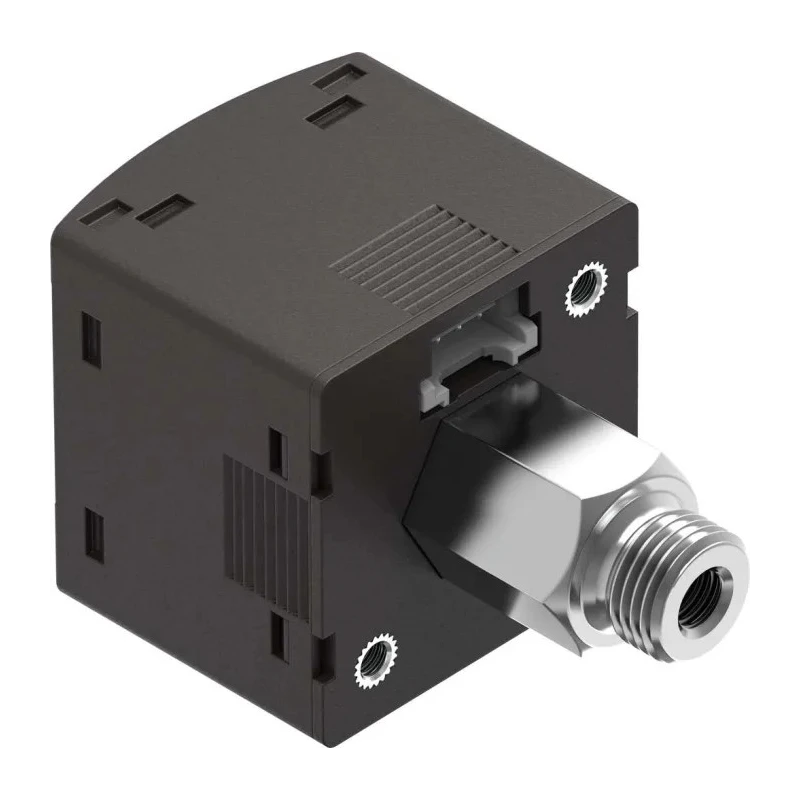

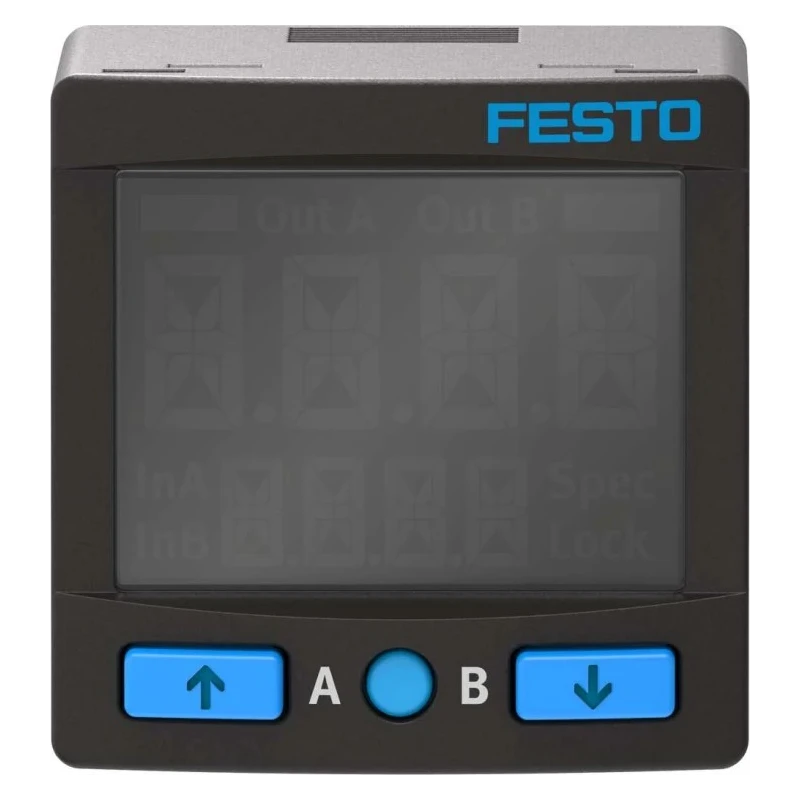

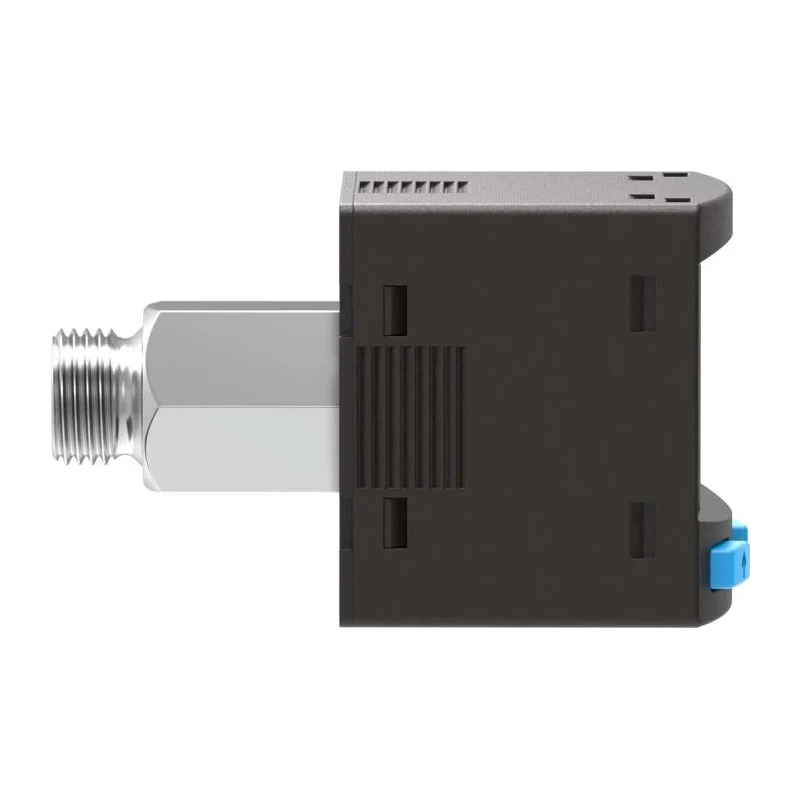

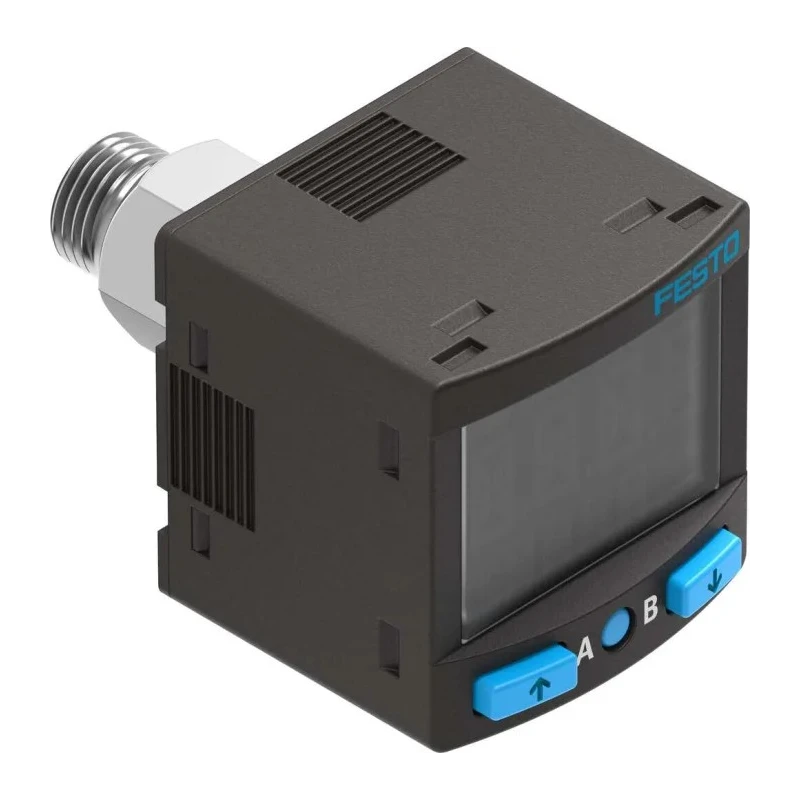

Festo Pneumatic Pressure Sensor, Relative Pressure, IP40, 15 Bar, 15V/30V, Digital Display, Span Series
Specifications
| Country of Origin | Bulgaria |
|---|---|
| Accuracy | 2%, 1.5% |
| Voltage | 15, 30V |
| Brand | Festo |
| Maximum Operating Pressure | 15 bar |
| Height | 3mm |
| Model | IP40 |
| Depth | 20mm |
| IP Rating | IP40 |
| Width | 3mm |
| Mount Type | Wall, Threaded, Surface, Front Panel Mount |
| Series | Span |
| Maximum Operating Temperature | 50°C |
| Pressure Type | Relative Pressure |
| Switch output | PNP, NPN (2 Output) |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Connection Thread Standard | NPT, G |
| Electrical Connection Type | Plug |
| Minimum Operating Pressure | 0bar |
| Port Gender | Male/Female |
| Suitable Medias | Air |
Key Features
- Measures relative pressure with high accuracy of 1.5% and 2% options.
- Operates on 15 V or 30 V supply voltage for flexible control integration.
- Supports multiple mounting types including wall, threaded, surface, and front panel mount.
- Equipped with dual PNP and NPN outputs for easy PLC interface.
- Suitable for compressed air and gas media monitoring in industrial environments.
- Includes digital display for clear pressure readout up to 15 bar and 50°C max temperature.
- Compact dimensions of 3mm x 3mm x 20mm enable versatile installation.
- Designed for protected indoor use with IP40 enclosure rating.
Product Description
Festo SPAN-P10R-G18M-PN-PN-L1 pneumatic pressure sensor provides precise relative pressure monitoring with an accuracy option down to 1.5%. Designed to measure pressures up to 15 bar, it operates with a voltage supply between 15 V and 30 V, making it compatible with various industrial control circuits.
The sensor's IP40 rated enclosure protects its internal electronics for use in standard indoor environments. Its digital display offers clear and immediate pressure readings, aiding in effective process monitoring.
Installation flexibility is maximized through multiple mounting options including wall, threaded, surface, and front panel mounting. It supports both NPT and G connection standards and can be fitted using male or female port configurations.
Dual PNP and NPN switching outputs enable straightforward integration with PLCs and automation systems, optimizing control applications in pneumatic and gas systems. This sensor is ideal for use in production plants for compressed air line monitoring, pressure safety interlocks on actuators, and gas line monitoring in laboratory automation setups.
The plug-style electrical connection facilitates quick and secure wiring into 30 V DC circuits. Operating temperatures from 0°C to 50°C permit use within typical indoor industrial spaces without additional thermal management.
Measures relative pressure with high accuracy of 1.5% and 2% options. Operates on 15 V or 30 V voltage supply for flexible control integration. Supports multiple mounting types including wall, threaded, surface, and front panel mount.
Equipped with dual PNP and NPN outputs for easy PLC interface. Suitable for compressed air and gas media monitoring in industrial environments. Includes digital display for clear pressure readout up to 15 bar and 50°C max temperature.
Compact dimensions for versatile installation in confined spaces. Designed for protected indoor use with IP40 enclosure rating. Accepts both NPT and G threaded connections with male or female port options.
This Festo Span Series pressure sensor is an essential component for industries requiring precise pneumatic pressure monitoring and control, including manufacturing, laboratory automation, and production plant air supply systems.
Discover more Pneumatic Pressure Sensors and related automation products at EnvMart for efficient and reliable system integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 15 bar.
It operates on a voltage supply of either 15 V or 30 V.
The sensor offers an accuracy of 1.5% and 2% options for pressure measurements.
This model supports multiple mounting types including wall, threaded, surface, and front panel mount.
It is equipped with dual PNP and NPN outputs for easy integration with PLCs and automation systems.
The operating temperature range for this unit is from 0°C to 50°C.
The sensor has an IP40 enclosure rating, making it suitable for protected indoor use.
It accepts both NPT and G threaded connections with male or female port configurations.
This sensor is suitable for monitoring compressed air and gas media in industrial environments.
The compact dimensions of this model are 3mm in height, 3mm in width, and 20mm in depth.
This pneumatic pressure sensor complies with RoHS standards.
