3M 5100 Series Right Angle Through Hole PCB Socket, 34-Contact, 2 Row, 2.54 mm Pitch, 12A Current, 1kV Voltage 5134-B7A2 PL

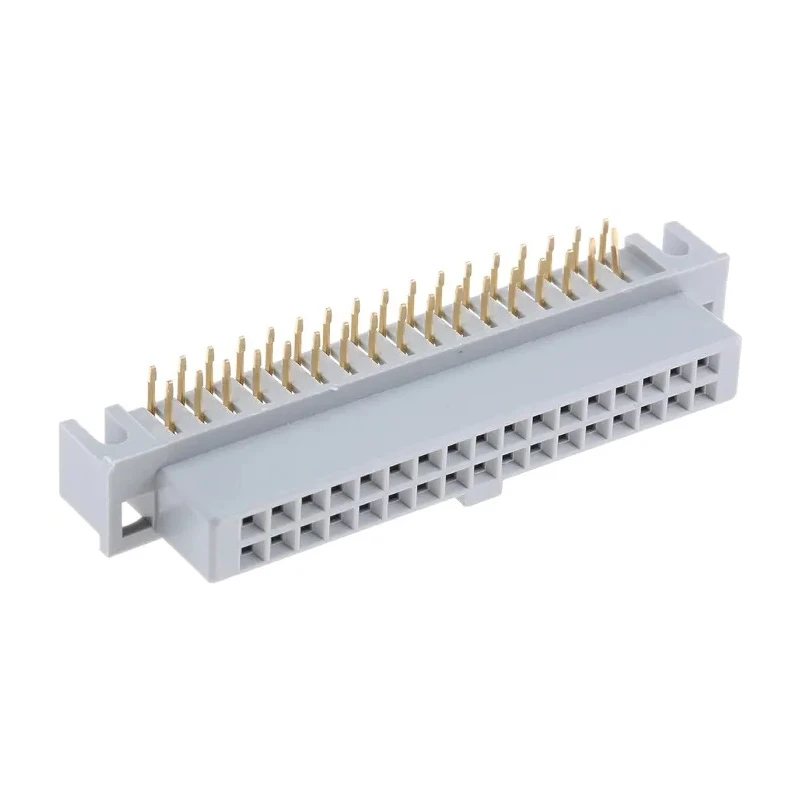

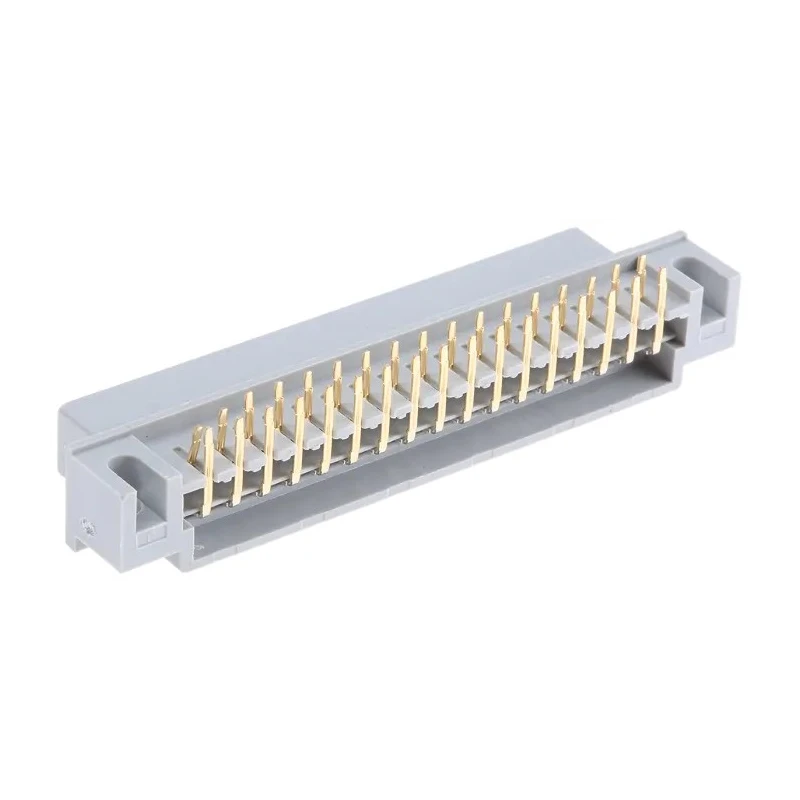

3M 5134-B7A2 PL is a high-quality 5100 series right angle through hole PCB socket designed specifically for reliable electronic board connections. Featuring 34 female contacts arranged in 2 rows with a 2.54 mm pitch, this PCB socket enables precise and secure board-to-board interfacing in compact electronic devices.

The connector supports a continuous current rating of 12A and a voltage rating of 1kV, making it suitable for demanding industrial, automation systems, and electronic electrical applications. The socket housing is constructed from robust glass filled polyester material which provides excellent mechanical stability and electrical insulation.

Contact surfaces are made from copper with a gold plating finish, which enhances conductivity, resistance to corrosion, and ensures long-term dependable performance even in harsh environments. The right angle orientation of the socket optimizes PCB layout by minimizing protrusion, beneficial for compact and multi-layer designs.

The device features a stacking height of 8.89 mm allowing efficient vertical board stacking. This socket employs a through-hole mounting method, which ensures strong mechanical bonding to the PCB suitable for high density and vibration-prone environments.

Designed to meet UL 94V-0 flammability rating and fully compliant with RoHS 2011/65/EU directives, it guarantees safety and environmental compliance. It operates reliably over a wide temperature range from -55°C up to 105°C, suitable for diverse industrial and electronic system environments.

Typically used in automation systems, electronic instrumentation, custom electronic assemblies, and various electrical devices requiring durable and compact PCB board sockets. Manufactured in Japan, this connector assures premium quality and manufacturing excellence.

34 contacts enable stable and reliable electrical connections. Right angle design for optimized PCB space usage. Gold plated copper contacts for superior conductivity and corrosion resistance. Through hole mounting ensures firm mechanical fixation.

Wide operating temperature range from -55°C to 105°C. Compliant with UL 94V-0 and RoHS standards for safety and environmental regulations.

Explore the 3M 5100 series right angle PCB Sockets category on EnvMart for a comprehensive range of electronic connectors designed for industry-grade board connections. Trust 3M’s engineered solutions for high performance and reliability.
