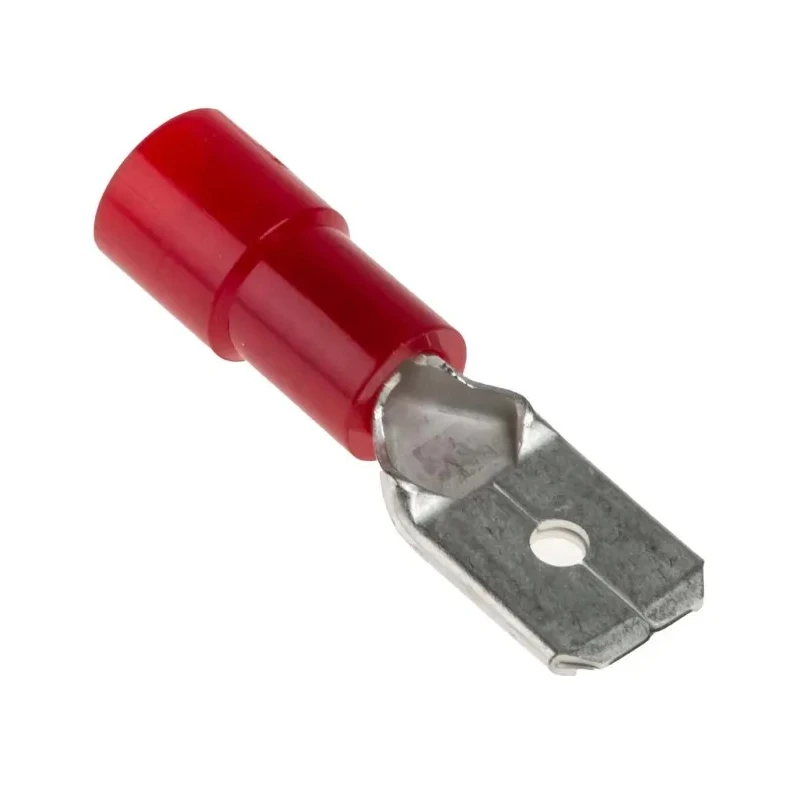

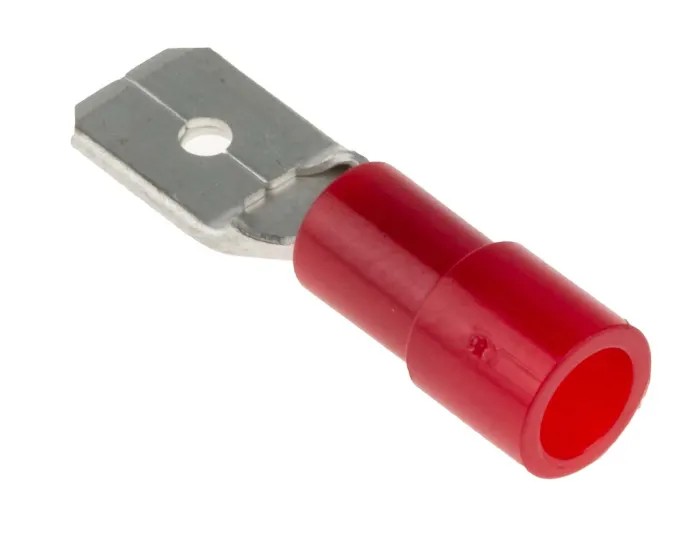

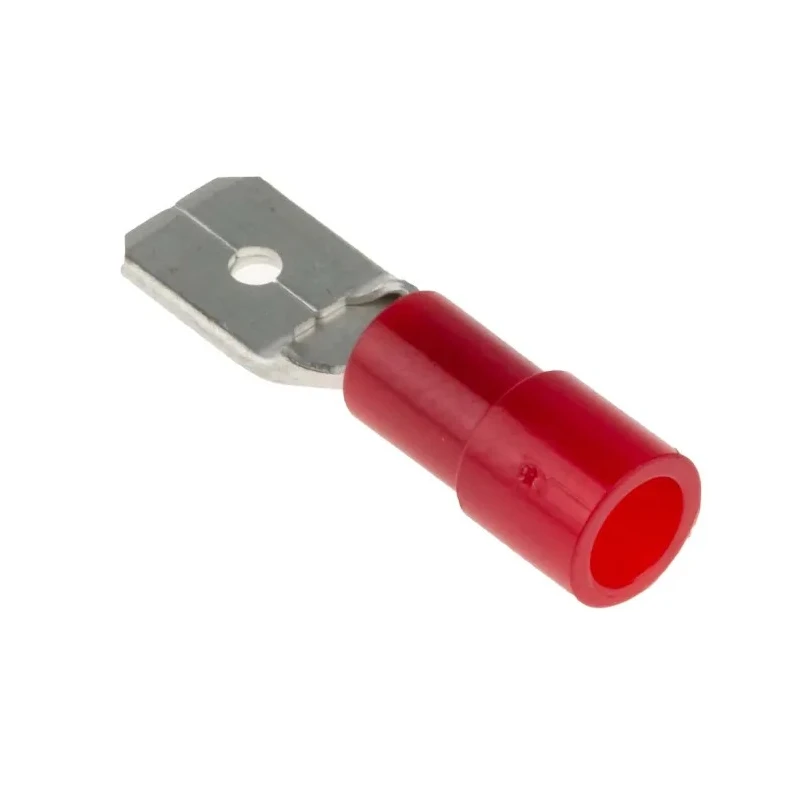

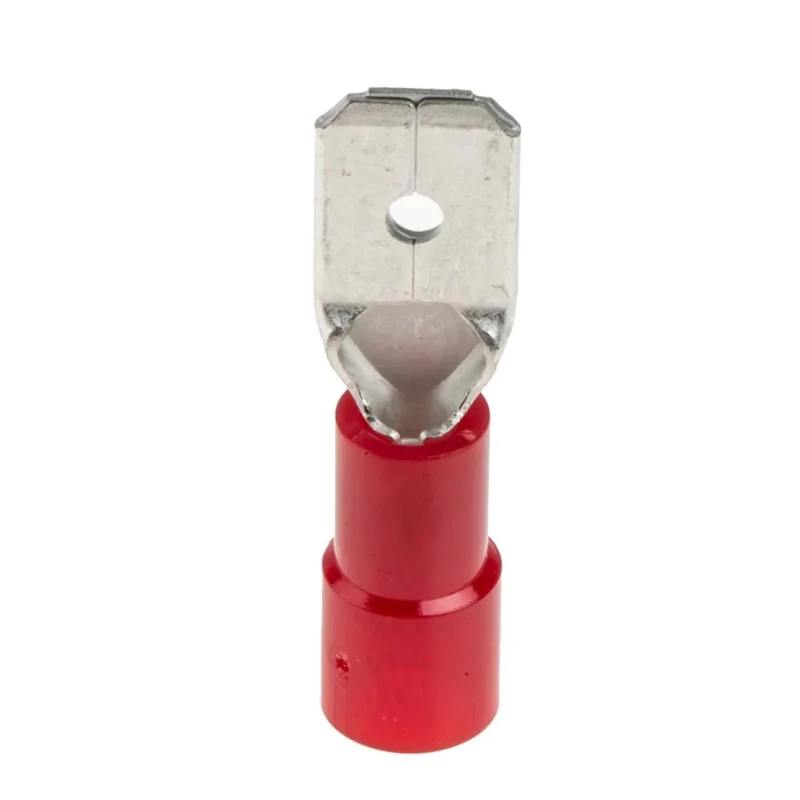

RS PRO Red Insulated Male Spade Connector Crimp, 6.35 x 0.8 mm Tab Size, 22 AWG to 16 AWG 613-9744
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Orientation | Straight |
| Model | 613-9744 |
| Gender | Male |
| Insulation | Insulated |
| Overall Length | 22mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Polycarbonate |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Per Unit, RS stock no | 613-9744 |
| RS stock no | 270-7605 |
| Tab Width | 6.35mm |
| Tab Thickness | 0.8mm |
| Tab Size | 6.35 x 0.8 mm |
| RS PRO Push Wire Terminal, 0.5 → 1.5 mm², RedBrand | RS PRO |
| RF-M Red Insulated Crimp Quick Disconnect Terminal, 6.35 x 0.8mm Tab SizeBrand | NEUTRAL |
Key Features
- The connector features a crimp termination type ensuring secure mechanical connection.
- Brass contact material with tin plating offers strong conductivity and corrosion resistance.
- Polycarbonate insulation provides electrical safety and durability with a red color indication.
- Supports wire sizes ranging from 0.5 mm² to 1.5 mm² for versatile application.
- Tab dimensions are 6.35 mm in width and 0.8 mm thickness, with an overall length of 22 mm.
- The orientation of the spade connector is straight, suitable for quick connect/disconnect use.
- Ideal for automotive electronics and domestic appliance wiring where secure terminal connections are required.
- Designed and manufactured with high-quality standards, meeting UL safety certification for insulation material.
Product Description
RS PRO 613-9744 Red Insulated Male Spade Connector is a high-quality crimp connector designed to connect single wires securely to terminals or components with tab size 6.35 x 0.8 mm. It supports wire gauges from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²) and is ideal for use in electronic, automotive, and domestic appliances applications.
The connector features tin-plated brass contacts that provide excellent conductive properties and resist corrosion. The polycarbonate insulation offers robust electrical insulation and complies with UL safety standards, ensuring safe and reliable operation.
The crimp termination method offers a durable and solder-free connection, making installation efficient and mechanically strong. The straight orientation and unshrouded design facilitate easy insertion and removal from mating terminals.
This product has an overall length of 22 mm, with a tab width of 6.35 mm and thickness of 0.8 mm, making it suitable for 6.35 mm receptacle fittings commonly used in automotive and electronic systems.
The connector is insulated with polycarbonate for enhanced electrical safety. Brass contact material with tin plating ensures high conductivity and corrosion resistance. Crimp termination provides strong mechanical and electrical connection without soldering.
Wire size compatibility from 0.5 mm² to 1.5 mm² accommodates a wide range of wiring needs. Red color insulation aids in easy identification during installation and maintenance. The straight orientation is compatible with standard male spade terminals.
Suitable for applications in automotive electronics, household appliances, and other electrical systems. Manufactured under strict quality controls, with UL certification for insulation material.
This RS PRO Spade Connector is an essential component for reliable electrical connections in industrial, automotive, and laboratory environments. It is part of the trusted RS PRO series that offers engineers and technicians high-quality and dependable electronic components.
Explore the wide selection of wire terminals and splicing solutions in the Electronics & Electricals category at EnvMart for professional-grade products designed to meet rigorous industry demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports wire sizes ranging from 0.5 mm² to 1.5 mm², which corresponds to 22 AWG to 16 AWG.
The tab dimensions are 6.35 mm in width and 0.8 mm in thickness.
The overall length of this model is 22 mm.
It features a crimp termination type, ensuring a secure mechanical connection without soldering.
The contacts are made of brass with tin plating, which provides strong conductivity and corrosion resistance.
It is insulated with polycarbonate, which offers electrical safety and durability.
The orientation is straight, making it suitable for quick connect and disconnect applications.
Yes, it is ideal for automotive electronics and domestic appliance wiring where secure terminal connections are required.
It meets UL safety certification for the insulation material, ensuring safe operation.
The country of origin for this product is Taiwan.
This connector is male, designed for connection to female terminals.
The insulation is red, which aids in easy identification during installation and maintenance.
