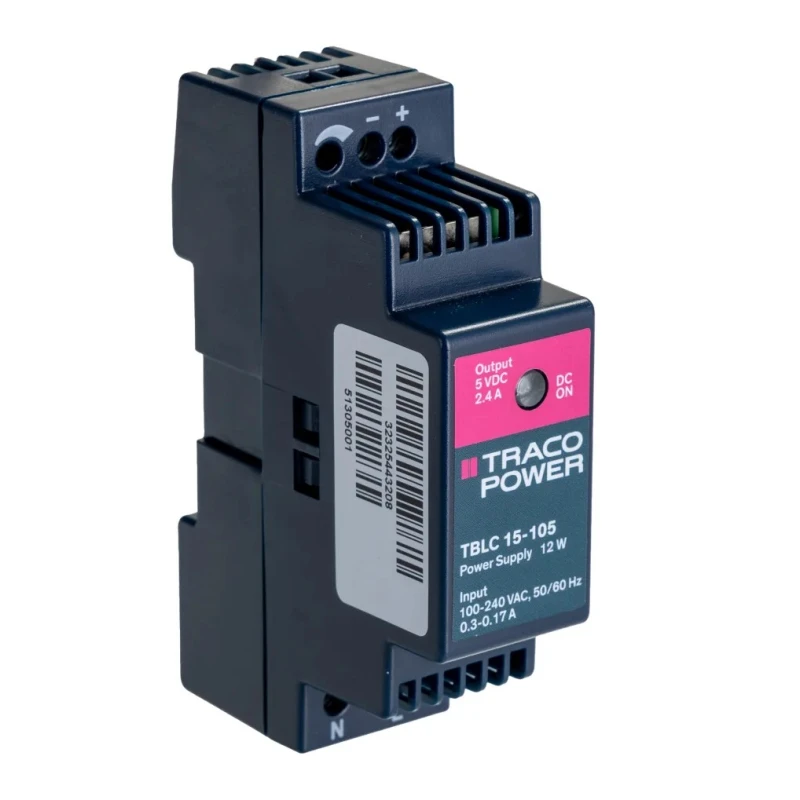

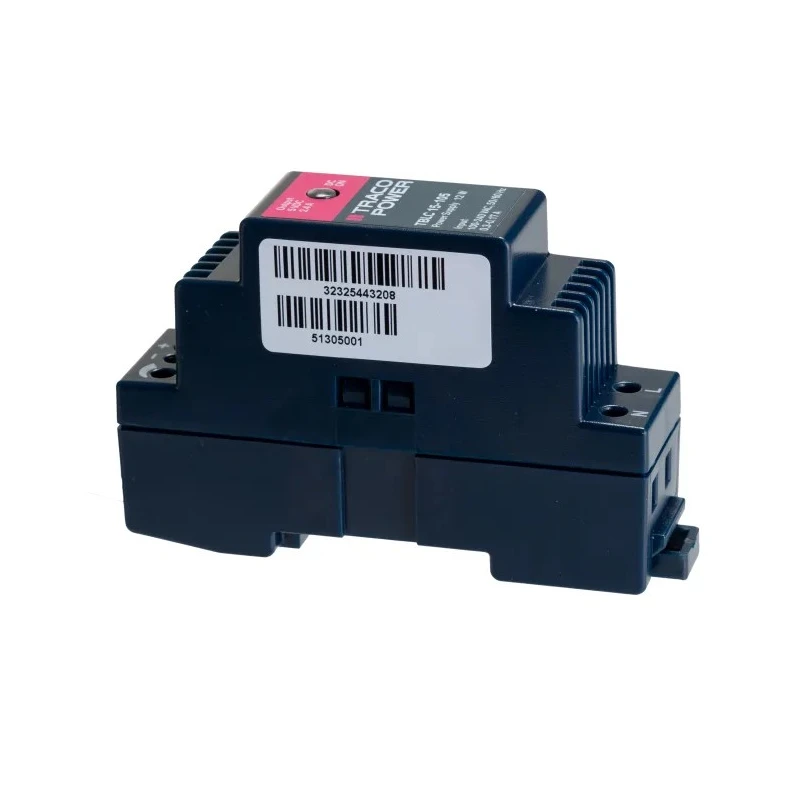

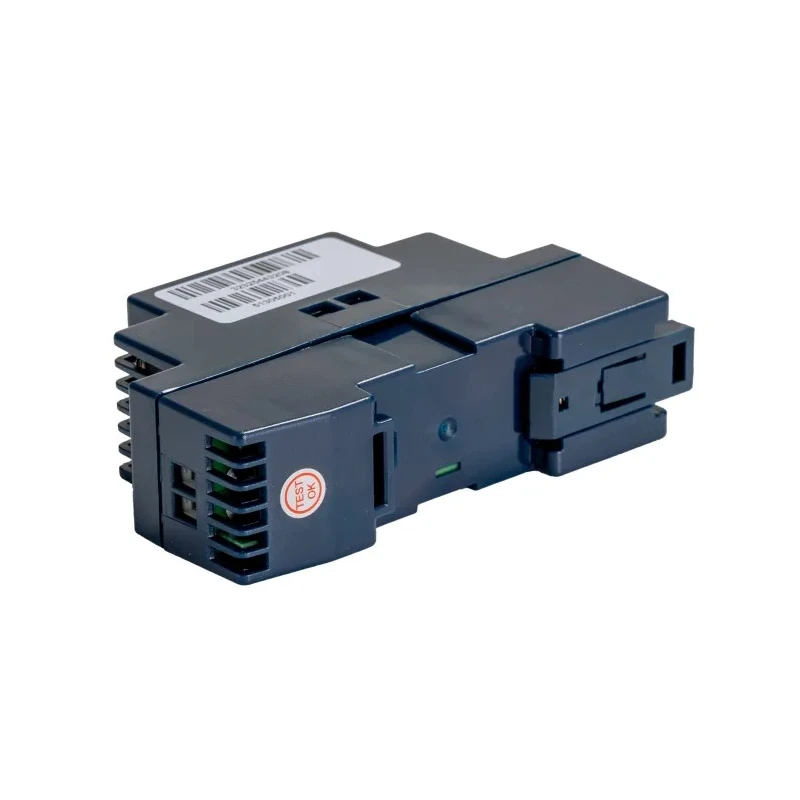

TRACOPOWER TBLC 15-105 DIN Rail Power Supply 264V AC Input 5.5V DC 2.4A Output 12W
Specifications
| Country of Origin | China |
|---|---|
| Brand | TRACOPOWER |
| Power | 12W |
| Efficiency | 81% |
| Height | 89.5mm |
| Model | TBLC 15-105 |
| Depth | 59.5mm |
| IP Rating | IP20 |
| Width | 27mm |
| Series | TBLC 15 |
| Output Current | 2.4A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Power Supply |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | IEC/UL 60950-1 |
| Maximum Output Voltage | 5.5V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Provides stable 5 to 5.5V adjustable DC output voltage for versatile power requirements.
- Single output design with 2.4A maximum output current capacity.
- Operates efficiently with 81% efficiency rating to conserve energy.
- Compact size conforms to DIN 43880 standard with dimensions 89.5 x 27 x 59.5 mm.
- Wide operating temperature range from -25°C to 70°C suitable for varied environments.
- Certified to IEC/UL 60950-1 standards ensuring safety and compliance.
- Input voltage range spans 85 to 264V AC for flexible application.
- IP20 rated protection for safe and reliable industrial and residential use.
Product Description
TRACOPOWER TBLC 15-105 DIN Rail Power Supply is a compact and efficient power module designed for industrial and residential electrical applications. It features a single output delivering 5.5V DC voltage at a current of 2.4A, providing a total power output of 12W. The unit supports an AC input voltage range between 85V and 264V, accommodating diverse supply conditions.
The power supply complies with IEC/UL 60950-1 certification, affirming its safety for various deployments. It operates with an impressive efficiency of 81%, minimizing energy losses and heat generation. The device maintains stable voltage output with low ripple and noise, essential for sensitive electronic components.
Engineered to conform to standard DIN 43880 dimensions (89.5 mm height, 27 mm width, 59.5 mm depth), it can be mounted easily on DIN rails in control panels or enclosure systems. The IP20 rating provides basic protection against solid foreign objects, making it suitable for protected indoor environments.
Designed to function reliably within a wide temperature span from -25°C to 70°C, it ensures consistent performance in variable climate conditions. The adjustable output voltage from 5 to 5.5V allows customization according to specific operational needs.
This DIN rail power supply is particularly suitable for powering sensors, controllers, and various industrial machinery components requiring a stable 5V DC supply. Its compact form factor and high reliability make it a valuable component in electrical power distribution and automation systems.
Provides stable 5 to 5.5V adjustable DC output voltage for versatile power requirements. Single output design with 2.4A maximum output current capacity. Operates efficiently with 81% efficiency rating to conserve energy.
Compact size conforms to DIN 43880 standard with dimensions 89.5 x 27 x 59.5 mm. Wide operating temperature range from -25°C to 70°C suitable for varied environments. Certified to IEC/UL 60950-1 standards ensuring safety and compliance.
Input voltage range spans 85 to 264V AC for flexible application. IP20 rated protection for safe and reliable industrial and residential use. Explore more DIN Rail Power Supplies and power distribution products at EnvMart for your electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TBLC 15-105 provides an adjustable DC output voltage range from 5 to 5.5V.
It has a maximum output current capacity of 2.4A.
The input voltage range spans from 85V to 264V AC, accommodating various supply conditions.
The dimensions of the TBLC 15-105 are 89.5 mm in height, 27 mm in width, and 59.5 mm in depth.
This model operates with an efficiency rating of 81%.
It operates reliably within a wide temperature range from -25°C to 70°C.
It has an IP20 rating, providing basic protection against solid foreign objects, suitable for protected indoor environments.
Yes, it is certified to IEC/UL 60950-1 standards, ensuring safety and compliance for various applications.
This power supply features a single output design.
The country of origin for this model is China.
This power supply operates on a single electrical phase.
