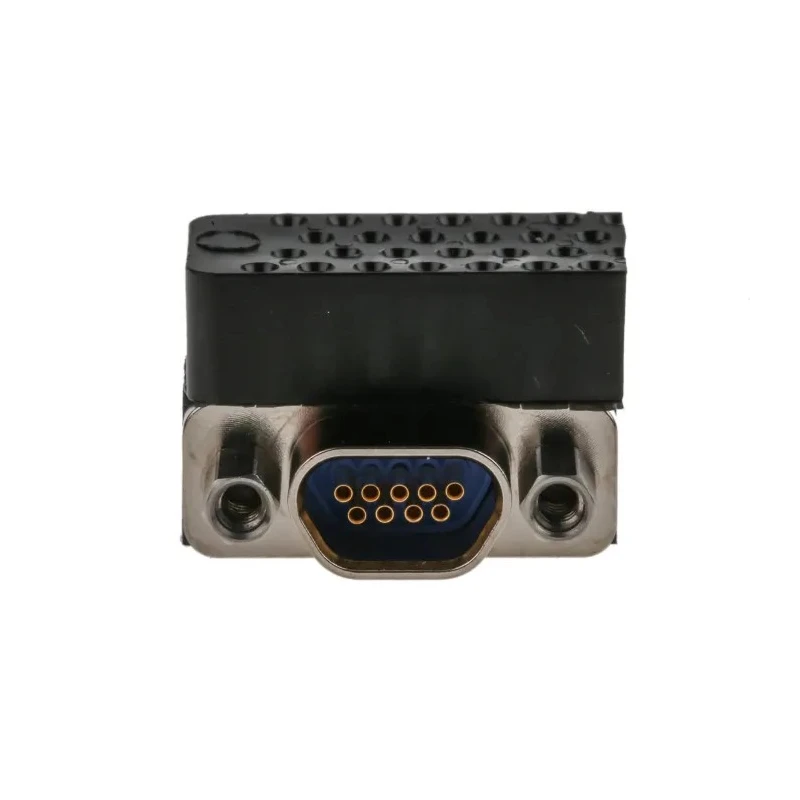

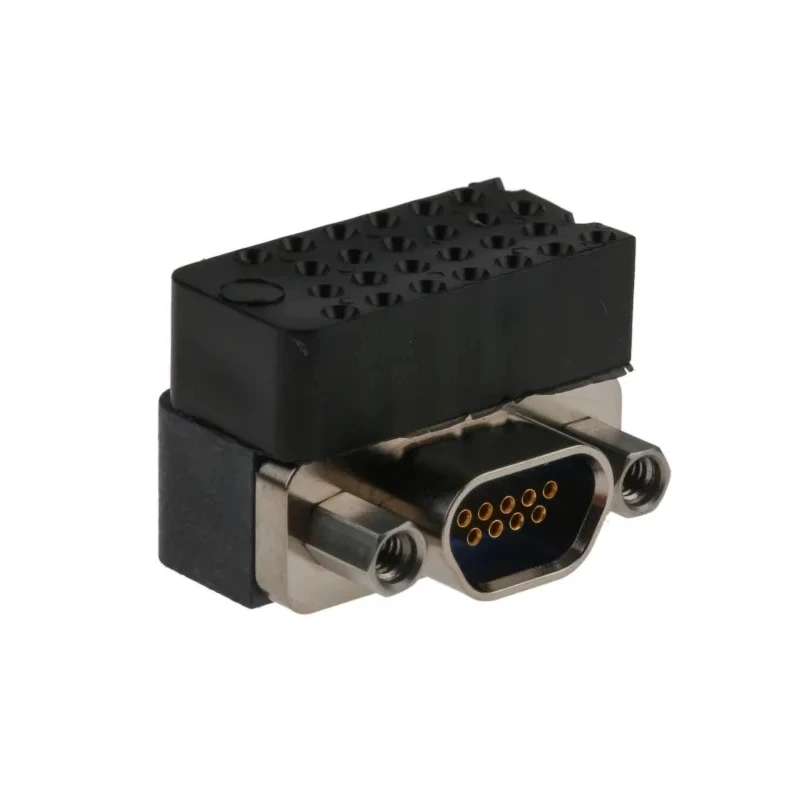

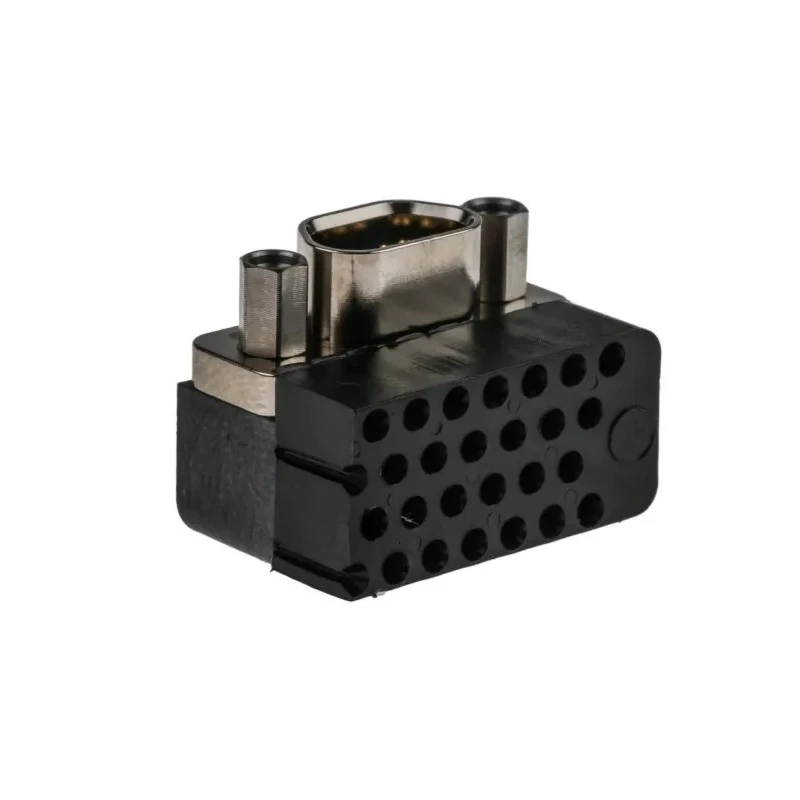

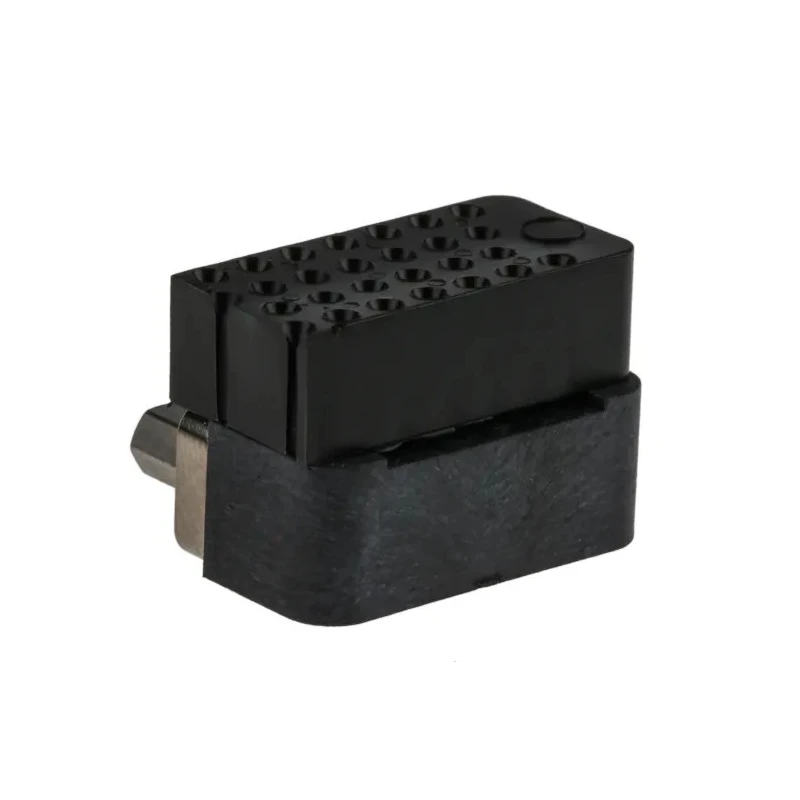

Glenair Micro-D Right Angle 9 Way Through Hole D-Sub Connector Female 2.54 mm Pitch MWDM2L-9SCBRP-.110
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Glenair |
| Orientation | Right Angle |
| Current | 3A |
| Model | MWDM2L-9SCBRP-.110 |
| Mount Type | Through Hole |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | MWDM |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | Micro-D |
Key Features
- The connector features 9 contacts with a 3 Amp current rating.
- It has a right angle orientation with through hole mount type for secure PCB installation.
- The housing material is aluminium alloy, providing durability and shielding.
- Contact material is copper alloy plated with gold over nickel for excellent conductivity and corrosion resistance.
- It supports a temperature range from -55°C to 150°C for harsh environment use.
- Termination type is solder with female connector gender and contact gender.
- Designed to MIL-C-83513 standard for military and industrial applications.
- The pitch between contacts is 2.54 mm ensuring compact and high-density connections.
Product Description
Glenair MWDM2L-9SCBRP-.110 is a Micro-D 9 Way Right Angle Through Hole D-Sub Connector Female featuring a 2.54 mm pitch designed for electronic systems requiring exceptional mechanical and electrical integrity. This connector is engineered with high performance and durability in mind, suitable for use in commercial, military aerospace, land, sea, industrial, and telecommunication applications.
The connector offers a 3 Amp contact current rating with gold plated copper alloy contacts and aluminium alloy housing that provides excellent shielding and robustness. It supports operation over a wide temperature range from -55°C to 150°C, ensuring reliability even in harsh environments.
The right angle orientation and through hole mount type allow for secure PCB mounting while maintaining a horizontal narrow profile with a 0.1 inch x 0.1 inch termination grid and 0.02 inch diameter copper termination tails. The design includes metal jackposts supplied installed and a high-density 0.05 inch contact pitch.
This Micro-D connector complies with MIL-C-83513 standards and RoHS directives for environmental compliance and features a high-performance liquid crystal polymer molded housing with trapezoidal polarization to prevent mismating.
The connector features 9 reliable contacts rated at 3 Amperes current capacity. Gold over nickel plating on contacts ensures long-lasting corrosion resistance and electrical performance. Robust aluminium alloy housing provides mechanical strength and EMI shielding.
Supports operation in extreme temperature conditions from -55°C to 150°C. Right angle and through-hole configuration facilitates versatile PCB designs. Ideal for demanding industrial and military environments. Micro-D size and pitch optimize connector density and electrical performance.
This connector is part of Glenair’s MWDM series, well-respected for high-quality interconnect solutions in demanding industries. It is suitable for industrial, laboratory, aerospace, military, telecommunications, and commercial electronic equipment applications.
Explore EnvMart’s extensive range of power and D-Sub Connectors for compatible and complementary products that meet various industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a current rating of 3 Amperes.
It supports an operating temperature range from -55°C to 150°C.
This model features a through hole mount type for secure PCB installation.
The housing is made of aluminium alloy, while the contacts are copper alloy plated with gold over nickel.
The connector features 9 contacts.
The pitch between the contacts is 2.54 mm.
It has a right angle orientation.
The termination type is solder, with a female connector gender.
Yes, it is designed to MIL-C-83513 standards for military and industrial applications.
It is suitable for use in commercial, military aerospace, industrial, and telecommunication applications.
Both the connector and contact genders are female.
The connector is manufactured in the United Kingdom.
