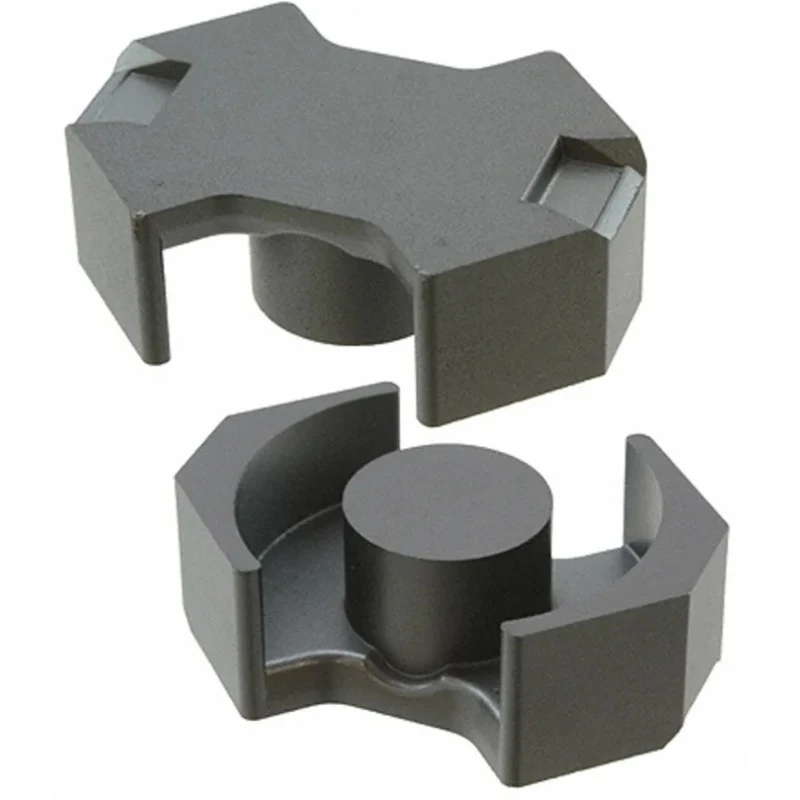

TDK N97 RM 10 Transformer Ferrite Core, 4200 nH, 28.5mm x 24.7mm x 18.7mm, 155°C Maximum Operating B65813J0000R097

TDK B65813J0000R097 Transformer Ferrite Core RM 10 is engineered for use in power transformer manufacturing, featuring optimized magnetic characteristics provided by the N97 ferrite material. This core type RM 10 is especially designed to deliver an AL rating of 4200 nH, which is essential for efficient inductance in transformer windings.

The core measures 28.5 mm in length, 24.7 mm in width, and a depth of 18.7 mm, making it suitable for space-constrained transformer designs prevalent in industrial and electronic power supply applications. Its maximum operating temperature rating of 155°C ensures reliable performance and stability even under elevated thermal operating conditions.

Compliant with IEC 62317-4 international standards, this ferrite core ensures durability, safety, and consistent quality suitable for use in manufacturing transformers for various industrial, electrical, and electronic equipment environments.

These RM 10 cores are delivered as sets without center holes, which facilitates custom transformer builds, especially when designing power transformers requiring compact ferrite core geometries.

This ferrite core is constructed from high-quality N97 material for superior magnetic performance. The AL rating of 4200 nH supports precise inductance values for transformer operations. Dimensionally optimized at 28.5 x 24.7 x 18.7 mm to fit compact transformer assemblies.

Operates safely up to 155°C, suitable for high-temperature industrial environments. Meets IEC 62317-4 standards for transformer core quality and safety compliance. Manufactured in the Czech Republic under stringent quality controls.

This product is ideal for industrial, laboratory, construction, and power supply manufacturing applications where precise core specifications and high thermal ratings are critical. The RM 10 transformer ferrite core enables efficient design and manufacturing of power transformers used in various commercial and industrial electronic appliances.
