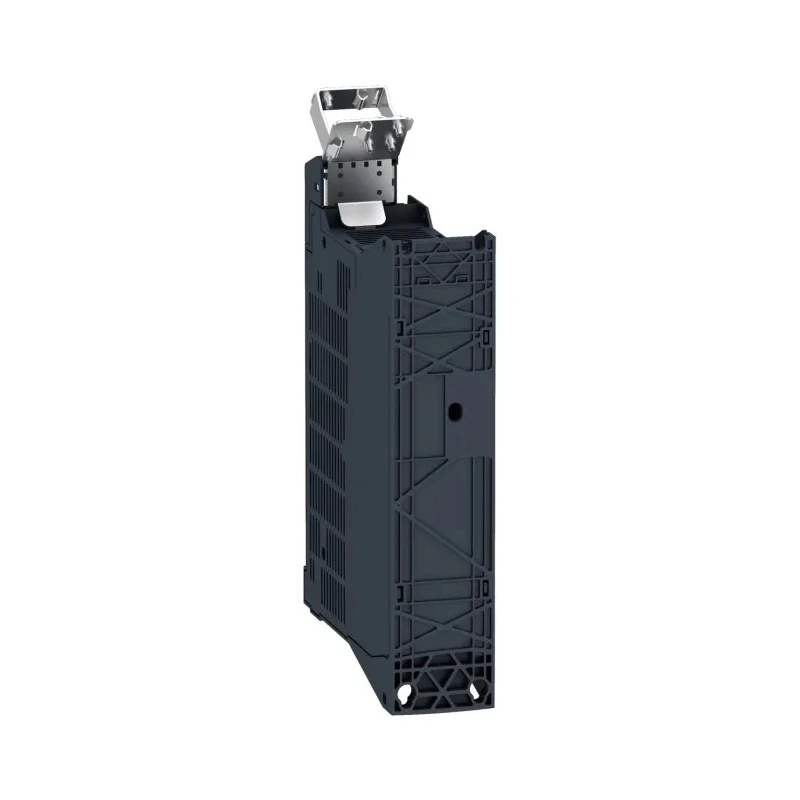

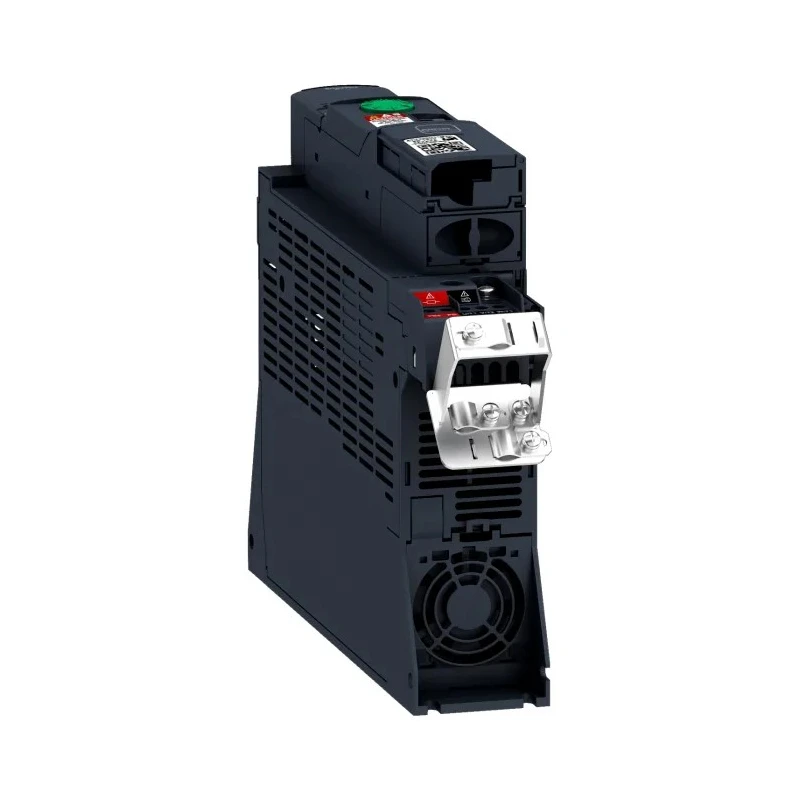

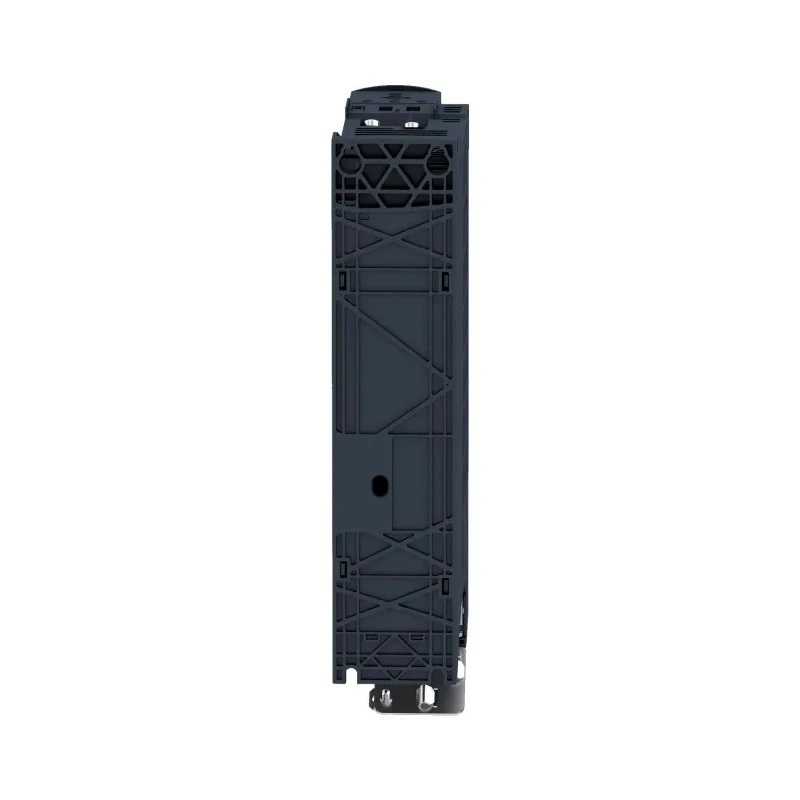

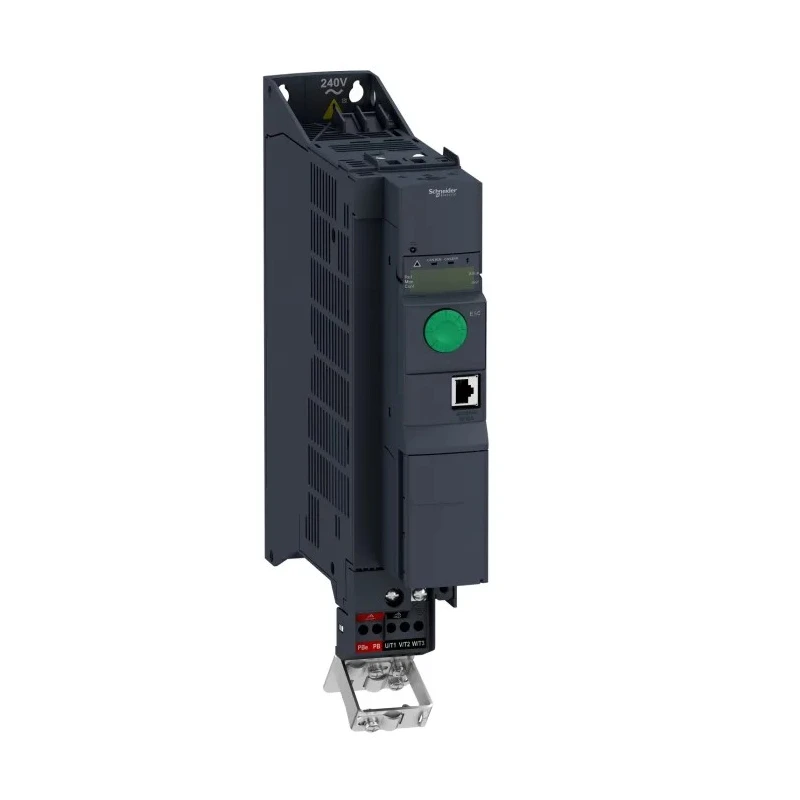

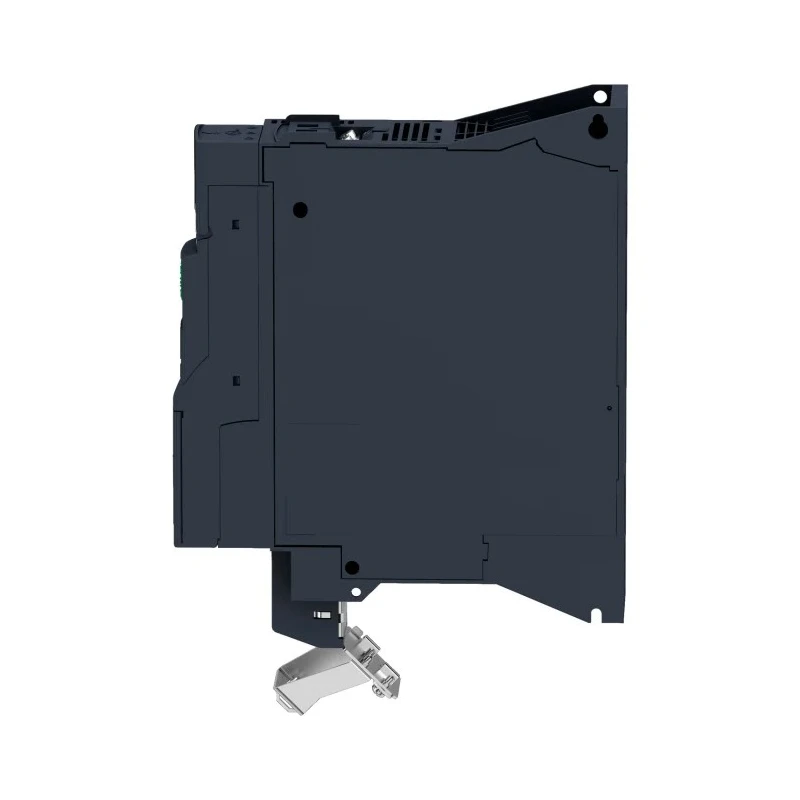

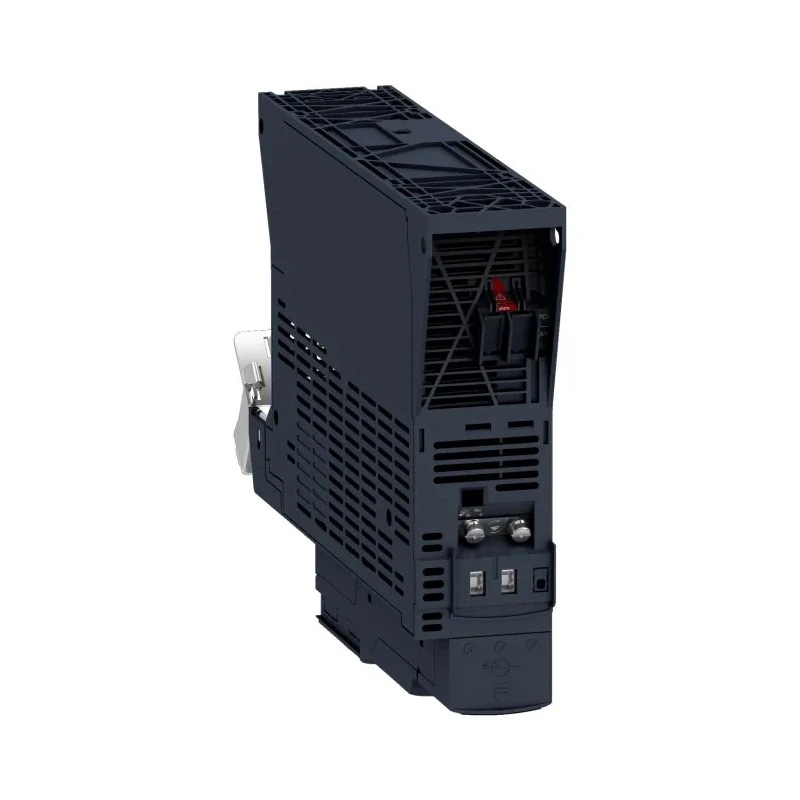

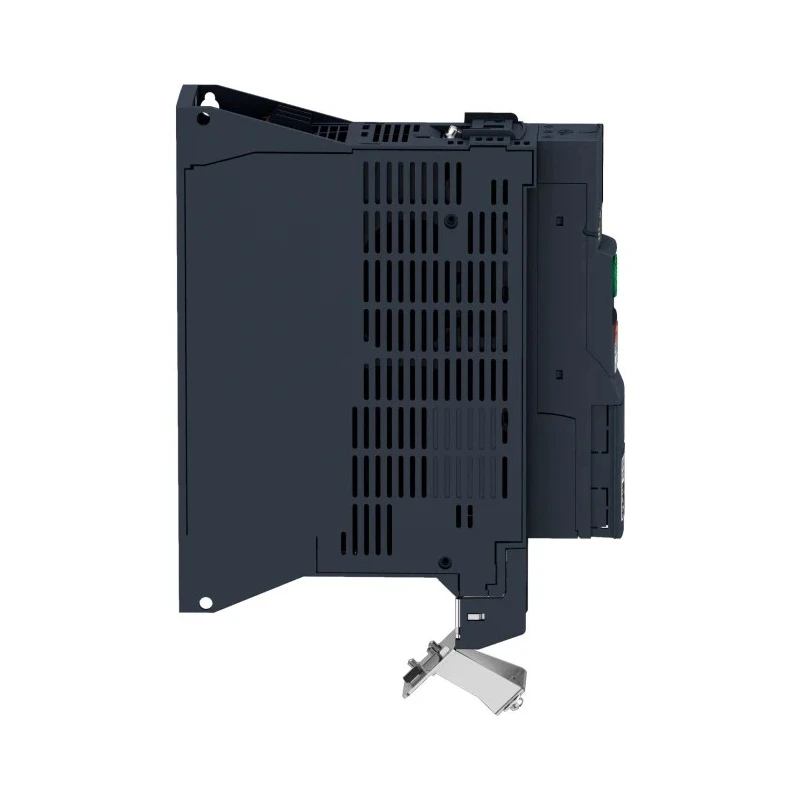

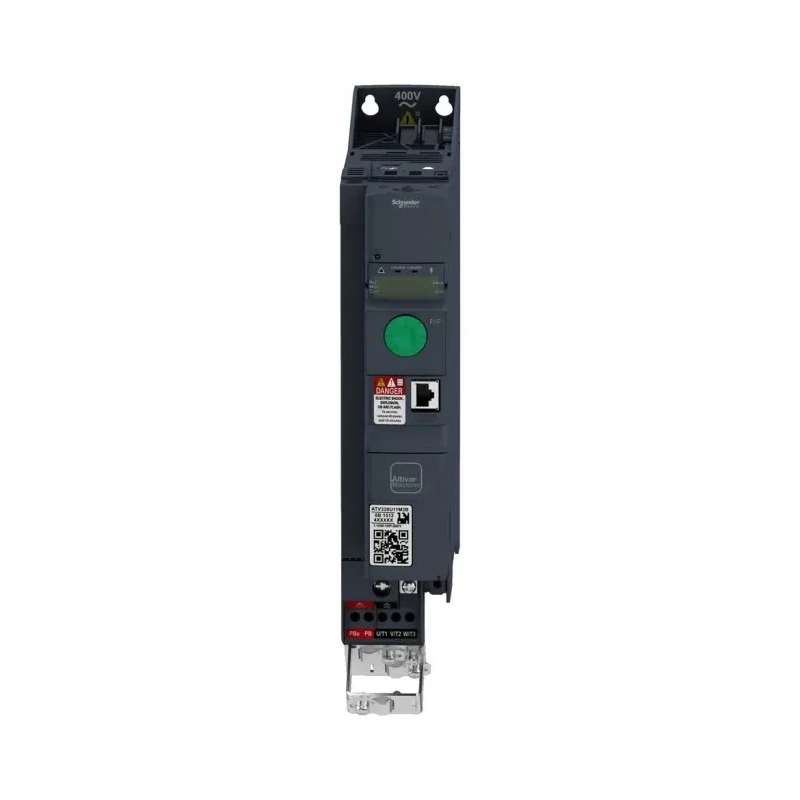

Schneider Electric Variable Speed Drive 2.2 kW 3 Phase 400V AC 8.7 A Altivar Series ATV320U22N4B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320U22N4B |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | DIN Rail |
| Overall Length | 60mm |
| Series | Altivar |
| Overall Width | 245mm |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.1, 599Hz |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 3 |
| Maximum Output Current | 8.7A |
| Overall Depth | 325mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Synchronous, Asynchronous Motor |
Key Features
- Compact DIN Rail mount design suitable for cabinet mounting.
- Supports output frequency range from 0.1 to 599 Hz for versatile motor control.
- Integrated C2 EMC filter reduces external electrical interference effectively.
- Adjustable switching frequency from 2 to 16 kHz to manage acoustic loss efficiently.
- Features built-in brake chopper and DC injection for smooth motor stopping operations.
- Includes STO safety input and Safe Stop 1 for enhanced functional safety compliance.
- Compatible with various communication protocols like Modbus, CANopen, EtherCAT, Profibus, and PROFINET.
- Protection against input phase loss, overcurrent, short circuit, thermal overload, and overheating.
Product Description
Schneider Electric ATV320U22N4B Variable Speed Drive is a 2.2 kW power, 3 phase inverter drive from the Altivar series, rated for 400V AC supply and delivering a maximum output current of 8.7 A. This compact unit is designed for precise motor control in complex industrial and manufacturing environments.
The drive supports synchronous and asynchronous motors and provides a wide output frequency range from 0.1 Hz to 599 Hz, enabling high-speed tasks and varied operation modes. Its construction allows DIN Rail mounting suitable for cabinet integration with an IP20 protection rating.
Equipped with an integrated C2 EMC filter, it minimizes external electromagnetic interference, ensuring reliable operation. The adjustable switching frequency from 2 kHz up to 16 kHz allows control over acoustic noise and switching losses, enhancing operational efficiency.
Safety and control features include a built-in brake chopper and DC injection module for controlled stopping, plus support for STO safety input and Safe Stop 1 functional safety standards. Protection functions safeguard against electrical faults including input phase loss, overcurrent scenarios, short circuits among motor phases, thermal overload, and overheating detection.
It supports multiple communication protocols including Modbus serial, CANopen, EtherCAT, Profibus DPV1, PROFINET, Ethernet Powerlink, EtherNet/IP, and DeviceNet, facilitating seamless integration into machine networks and coordinated multi-axis control systems.
This Variable Speed Drive is ideal for industrial applications such as machine tools requiring high-frequency motor control, conveyor systems with mixed motor types, packaging equipment needing rapid acceleration, and various industrial processes operating up to 50°C ambient temperature.
The Schneider Electric ATV320U22N4B represents a reliable and efficient solution for energy-saving motor control within electrical automation and industrial automation sectors. Compact DIN Rail mounting for easy cabinet installation.
Wide output frequency range enhances motor task flexibility. Integrated electromagnetic compatibility (EMC) filter minimizes interference. Adjustable switching frequency reduces acoustic noise and losses. Built-in brake chopper and DC injection improve stopping control.
Supports advanced safety functions such as STO and Safe Stop 1. Multiple communication protocols ensure system compatibility. Comprehensive protection against electrical faults and overloads. Suitable for diverse industrial motor control applications.
Explore more automation and motor control solutions by browsing our extensive range of Inverter Drives and variable speed drives.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is 2.2 kW.
It has a maximum output current of 8.7 A.
The output frequency range is from 0.1 Hz to 599 Hz.
It is compatible with both synchronous and asynchronous motors.
The overall dimensions are 60 mm in length, 245 mm in width, and 325 mm in depth.
The IP rating of this model is IP20.
The minimum operating temperature is -10°C, while the maximum is 50°C.
The integrated C2 EMC filter reduces external electromagnetic interference, ensuring reliable operation.
It includes a built-in brake chopper, DC injection for smooth stopping, and supports STO safety input and Safe Stop 1 compliance.
This unit is designed for DIN Rail mounting, suitable for cabinet integration.
It supports multiple communication protocols including Modbus, CANopen, EtherCAT, Profibus, and PROFINET.
It provides protection against input phase loss, overcurrent, short circuits, thermal overload, and overheating.
