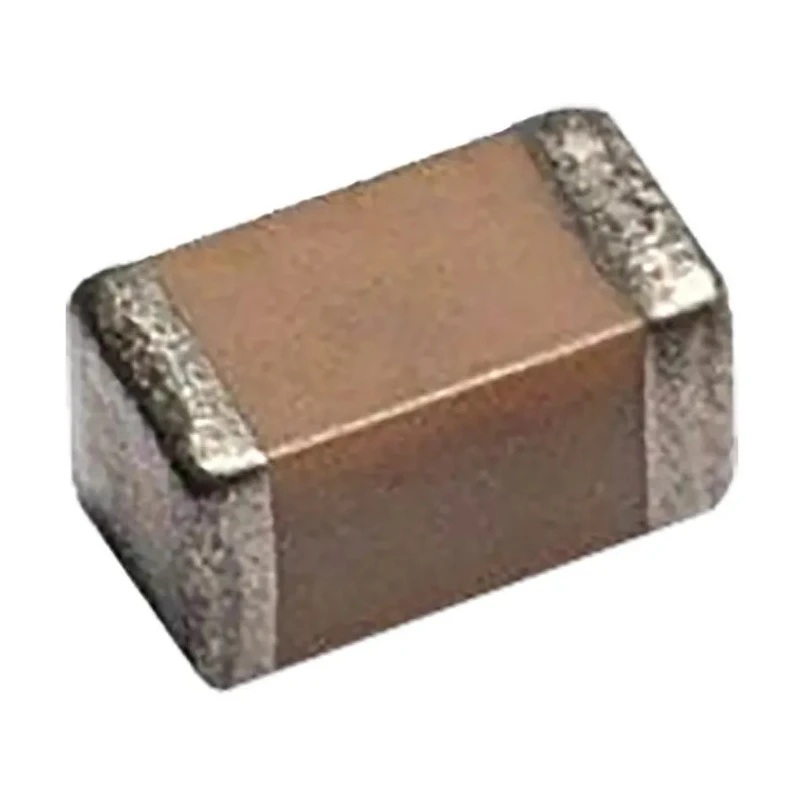

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor X7R Dielectric 16V dc ±10% Surface Mount 0603 0201YC102KAT2A

The KYOCERA AVX 0201YC102KAT2A is a high-quality multilayer ceramic capacitor designed for surface mount applications. It provides a capacitance of 1 nF with a nominal voltage rating of 16V dc, utilizing the X7R dielectric material known for temperature stability and reliability across industrial environments.

This capacitor features a compact 0603 package, measuring 0.6 mm in length, 0.3 mm in width, and 0.33 mm in height, making it ideal for high-density circuit boards. It operates effectively within a temperature range from -55°C up to 125°C, ensuring functionality in demanding temperature variations.

Capacitance tolerance is ±10%, which balances precision and cost-effectiveness for a wide range of applications. The termination type is surface mount, employing nickel barrier terminations covered with a layer of plated tin (NiSn) to enhance solderability and durability.

The X7R dielectric ceramic falls under EIA Class II materials and exhibits non-linear capacitance variation under voltage and temperature stress, typical for these components. This makes it well-suited for decoupling, filtering, and timing applications in mobile phones, video equipment, tuner designs, and other electronic devices with moderate capacitance stability requirements.

Packaged in reels, this capacitor supports automated manufacturing, streamlining assembly lines. Although not rated for automotive-specific standards, it is suitable for a broad range of industrial electronics where reliable, stable capacitors are required.

This capacitor provides reliable performance for demanding industrial and consumer electronics. Its small footprint facilitates miniaturization of electronic circuits. The reel packaging enables high-volume automated placement.

Temperature stability ensures operation in harsh environments. Applications include mobile, video, and tuner circuit designs.

Choose KYOCERA AVX capacitors for proven quality and consistent performance in Multilayer Ceramic Capacitor applications. Explore the Electronics Components category at EnvMart for additional passive components including a wide range of MLCCs.
