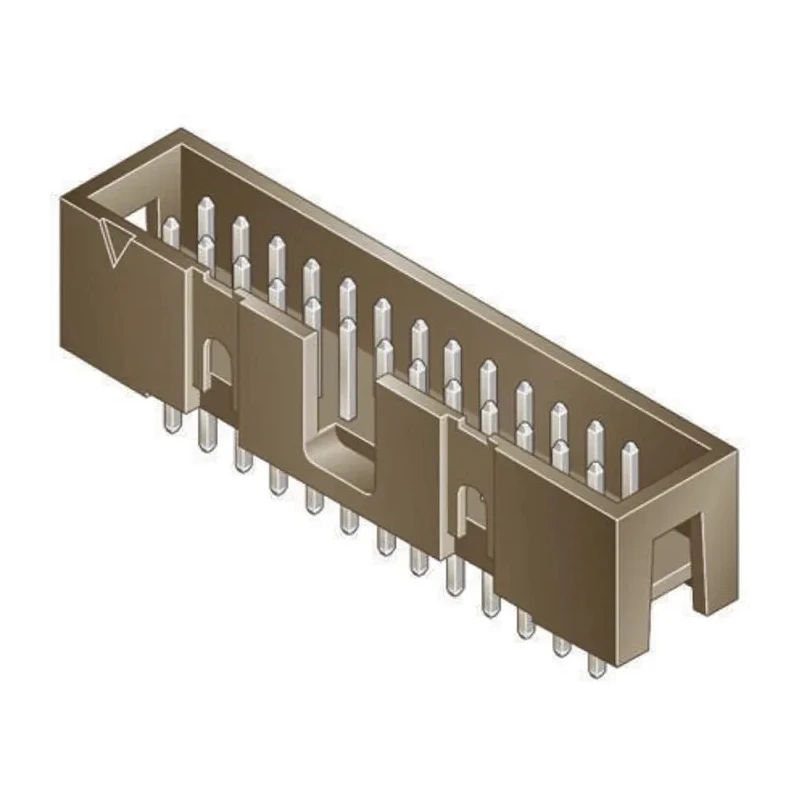

Amphenol Communications Solutions Quickie Series Straight Through Hole PCB Header, 16 Contact, 2.54 mm Pitch, 2 75869-103LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Model | 75869-103LF |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Thermoplastic Polyester |
| Contact Material | Phosphor Bronze |
| Series | Quickie |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| No polarization | 75869-130LF, 75869-131LF and 75869-132LF |
| Right polarization | 75869-101LF and 75869-102LF |
| Right and Left polarization | 75869-103LF, 75869-104LF and 75869-105LF |
Key Features
- Constructed with glass filled thermoplastic polyester housing for durability.
- Contacts are male phosphor bronze with gold plating for superior conductivity.
- Shrouded design ensures precise polarization and corrosion resistance.
- Through hole mount type is suitable for PCB assembly with solder termination.
- Operates reliably from -65°C up to 105°C maximum temperature.
- Compatible with IDC Quickie receptacles for seamless wire-to-board connections.
- Designed for industrial and electronic applications requiring strong electrical and mechanical performance.
Product Description
Amphenol Communications Solutions 75869-103LF Quickie Series is a straight through hole PCB header designed for reliable wire-to-board connectivity in industrial and electronic components applications. This product features 16 male phosphor bronze contacts with gold plating, arranged in two rows with a 2.54 mm pitch suitable for precision aligned PCB layouts.
The housing is made from durable glass filled thermoplastic polyester, providing excellent mechanical support and resistance to environmental stress. The shrouded design enhances polarization, reducing incorrect mating risks and ensuring connector integrity during usage. Rated for a maximum current of 3A and voltage of 500V, it can operate in harsh conditions ranging from -65°C to 105°C.
Termination is by solder through-hole mount, making it compatible with standard PCB assembly processes. This header series offers a robust solution for applications in industrial automation, telecommunications, power distribution, and other electrical component assembly requirements.
The 75869-103LF model includes right and left polarization features tailored to prevent misconnection, enhancing system reliability. It is part of Amphenol's comprehensive Quickie interconnection system, ensuring seamless integration with IDC Quickie receptacles.
Constructed with glass filled thermoplastic polyester housing for durability. Contacts are male phosphor bronze with gold plating for superior conductivity. Shrouded design ensures precise polarization and corrosion resistance.
Through hole mount type is suitable for PCB assembly with solder termination. Operates reliably from -65°C up to 105°C maximum temperature. Compatible with IDC Quickie receptacles for seamless wire-to-board connections. Designed for industrial and electronic applications requiring strong electrical and mechanical performance.
The product is manufactured in France and adheres to industry standards for quality and performance. This Quickie Series header is ideal for electronics manufacturing, prototyping, and maintenance projects, offering high reliability and ease of installation.
Explore more high-quality PCB Headers and connectors at EnvMart, trusted for industrial electrical and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 3A.
This PCB header is rated for a maximum voltage of 500V.
It operates reliably within a temperature range of -65°C to 105°C.
This model features 16 male contacts arranged in two rows.
The termination type for this header is solder, suitable for through-hole mounting.
The housing is constructed from glass filled thermoplastic polyester, providing durability.
Yes, it is compatible with IDC Quickie receptacles for seamless wire-to-board connections.
The pitch of the contacts is 2.54 mm.
The shrouded design enhances polarization and reduces the risk of incorrect mating.
This product is manufactured in France.
It is designed for industrial automation, telecommunications, power distribution, and other electrical component assembly requirements.
This model features both right and left polarization, preventing misconnection.
