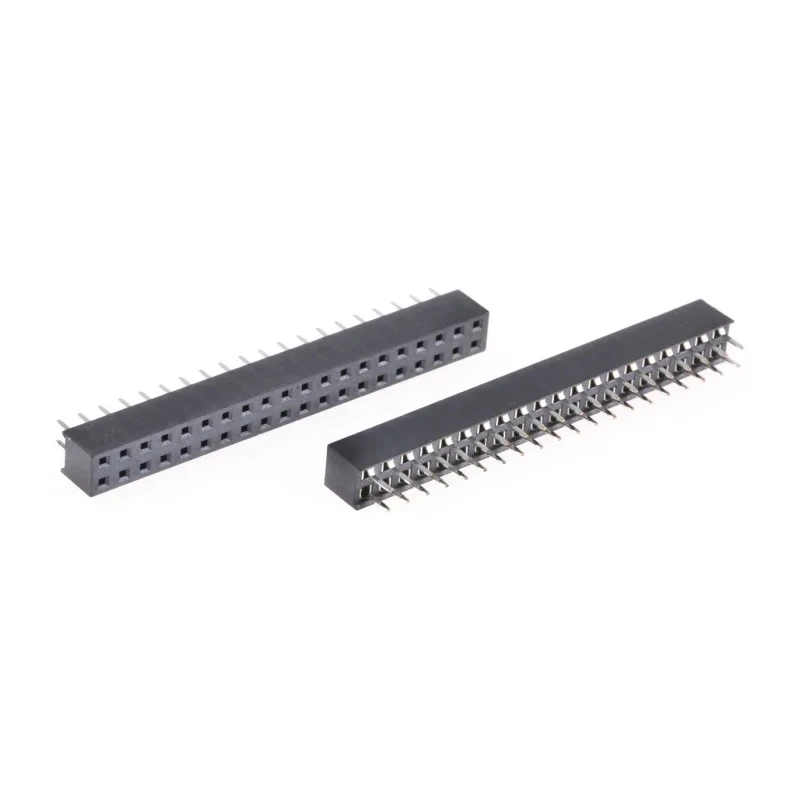

HARWIN M22 Series 40-Contact 2 Row 2 mm Pitch Straight Through Hole PCB Socket 500V 12A M22-7142042

HARWIN M22-7142042 PCB Socket is a 40-contact, 2 row, 2 mm pitch straight through hole connector designed specifically for high-density board-to-board interconnections. Manufactured with UL94V-0 liquid crystal polymer housings, this socket is suitable for harsh industrial and consumer electronic applications, capable of withstanding modern reflow soldering processes.

Its female contacts are made from bronze with gold plating and dual beam construction, enhancing the electrical connection's reliability and durability. The socket supports a current rating of 12A per contact and a maximum voltage of 500V, making it ideal for use in embedded PCs, motherboards, industrial monitoring systems, communications, and drive controls.

The product is engineered to operate in temperatures ranging from -25°C to 105°C, offering robustness for varied industrial and commercial environments. The compact 2-row, 40-contact configuration allows for efficient space utilization on printed circuit boards with a mounting type of through hole and a straight connector orientation.

Designed for high mating cycle durability with up to 300 mating operations, this connector is well suited for applications demanding consistent reliability. The housing material's high-temperature resistance and compact footprint meet stringent design requirements for PCB density and height restrictions.

Fine 2 mm pitch PCB socket for dense board layouts. High temperature Liquid Crystal Polymer housing for durability and heat resistance. Gold plated dual beam bronze contacts for superior conductivity. 12A current and 500V voltage rating for robust electrical performance.

Suitable for embedded systems, industrial controls, and communication devices. Through hole mount with straight orientation for secure PCB installation. Operating temperature range of -25°C to 105°C for diverse environments.

Supports up to 300 mating cycles for long-term reliability.

This HARWIN PCB Socket is a trusted solution for electrical connection needs across industrial, manufacturing, computing, and electronics sectors. Explore more from HARWIN connectors and PCB components to optimize your design applications on EnvMart.
