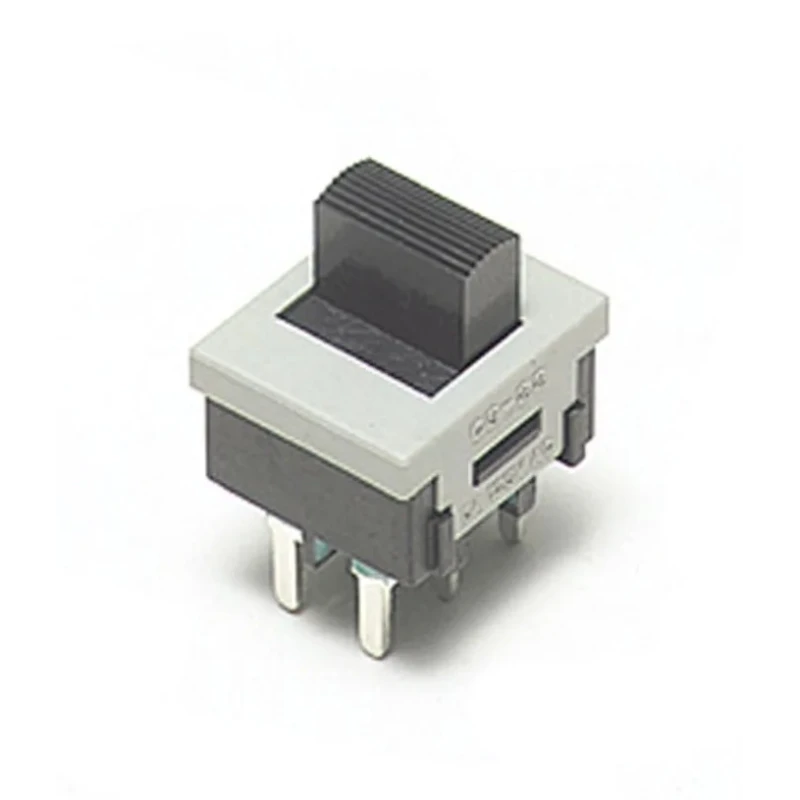

NKK Switches PCB Slide Switch DPDT Latching 3A Copper CS22BNW03

Free Delivery in India | Lowest Global Shipping Charges

NKK Switches PCB Slide Switch DPDT Latching 3A Copper CS22BNW03

Name: NKK Switches PCB Slide Switch DPDT Latching 3A Copper CS22BNW03
Brand: NKK Switches
SKU: 197494
Price: 3.29 USD
Availability: InStock



Category Slide Switch Brand NKK Switches Condition New

Specifications

Country of Origin	China
Brand	NKK Switches
Length	14mm
Model	CS22BNW03
Depth	12.7mm
Width	12.7mm
Mount Type	PCB
Series	CS
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Terminal type	Straight PC Pin
Standards/Approvals	UL
Switch Operation	Latching
Switch Contact Current	3A
Mechanical Life	50000Cycles
Contact AC Voltage	250V ac
Actuator Material	Copper

Key Features

High performance and quality construction ensures reliable operation.
The switch features a double pole double throw (DPDT) contact configuration.
Switch operation is latching with an On-On configuration type.
Switch contact current rating is 3A with an AC voltage rating of 250V.
Constructed with copper actuator material providing durability and conductivity.
Terminals are straight PC pins for easy PCB integration.
The switch supports a mechanical life of up to 50,000 cycles.
Meets UL standards with UL94V-0 molded cover and case for antistatic properties.

Product Description

NKK Switches CS22BNW03 PCB Slide Switch DPDT Latching 3A Copper is a miniature power rated slide switch designed to deliver high reliability and performance for PCB applications. Its compact dimensions (Length 14mm, Width 12.7mm, Depth 12.7mm) allow it to be used in space-constrained electronic assemblies.

This slide switch features a double pole double throw (DPDT) contact configuration with latching On-On operation, making it suitable for switching multiple circuits. The contact current capacity is rated at 3A with a maximum AC voltage of 250V, which makes this switch suitable for control and switching tasks in telecommunications equipment, audio devices, and household appliances.

The switch actuator is made of copper providing excellent conductivity and mechanical strength. Straight PC pin terminals facilitate reliable soldering and mounting on printed circuit boards. Its molded cover and case comply with UL94V-0 standards, offering antistatic protection and high resistance to electrical and mechanical stress.

With a robust mechanical life of 50,000 cycles, this switch ensures long-term reliability in demanding industrial and commercial applications. It operates safely within a temperature range from -30°C to 85°C, accommodating diverse operating environments.

High quality and high performance power rated miniature slide switch. DPDT contact configuration with latching On-On switch operation. Rated for 3A contact current and 250V AC voltage. Copper actuator material ensures durability and conductivity.

Straight PC pin terminals for easy PCB mounting. Molded cover and case with UL94V-0 antistatic rating. Epoxy sealed terminals for enhanced reliability. Mechanical life of 50,000 cycles for long-term use. Operating temperature range: -30°C to 85°C.

Ideal for telecommunications, electronic controls, audio devices, and household applications.

This NKK PCB Slide Switch is an essential component for electronics manufacturers and repair technicians requiring a compact, reliable, and robust switch solution. Available with NKK’s quality assurance, it fits applications across industrial, commercial, and consumer electronics segments.

Explore the full range of switches and electronic components in the Electronics & Electricals category on EnvMart for comprehensive solutions tailored to your industrial and technical needs.
