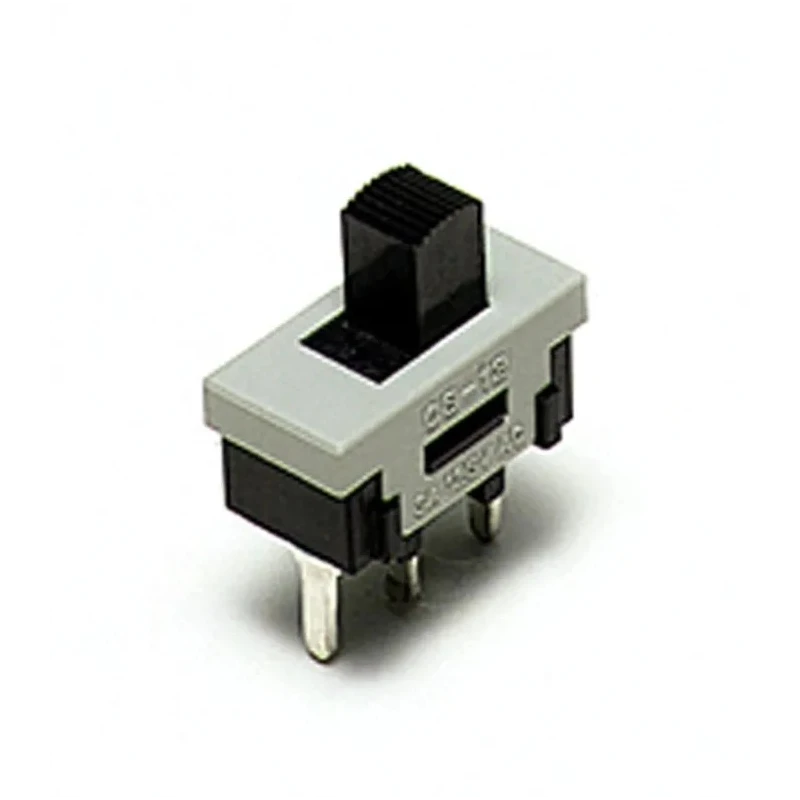

NKK Switches PCB Slide Switch SPDT Latching 3A Copper CS12ANW03

Name: NKK Switches PCB Slide Switch SPDT Latching 3A Copper CS12ANW03
Brand: NKK Switches
SKU: 197491
Price: 2.32 USD
Availability: InStock



Category Slide Switch Brand NKK Switches Condition New

Specifications

Country of Origin	China
Brand	NKK Switches
Length	14mm
Model	CS12ANW03
Depth	11.5mm
Width	11.5mm
Mount Type	PCB
Series	CS
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Terminal type	Straight PC Pin
Standards/Approvals	UL
Switch Operation	Latching
Switch Contact Current	3A
Mechanical Life	50000Cycles
Contact AC Voltage	250V ac
Actuator Material	Copper

Key Features

Features a single-pole double-throw (SPDT) contact configuration for versatile electrical control.
Operates with a latching mechanism ensuring reliable switch position retention.
Supports a continuous contact current of 3 amperes and contact AC voltage up to 250V AC.
Constructed with copper actuator material for durability and excellent conductivity.
Equipped with straight PC pins for easy PCB mounting and integration.
Compact dimensions measuring 14 mm length, 11.5 mm width, and 11.5 mm depth.
UL approved with a mechanical life expectancy of 50,000 cycles for long-term reliability.
Stable operation within a temperature range of -30°C to 85°C to suit various industrial environments.

Product Description

NKK Switches CS12ANW03 PCB Slide Switch is a miniature power-rated SPDT (single-pole double-throw) latching slide switch capable of handling 3 Amperes contact current and 250V AC voltage. Constructed with high quality copper actuator material and housed in a molded cover and case compliant with UL94V-0 standards, it ensures reliable and safe performance even in demanding environments.

This switch features a robust latching mechanism providing secure switch position retention, suitable for a wide range of industrial and commercial applications including telecommunications equipment, electronic controls, audio devices, and household appliances. The epoxy sealed terminals offer enhanced protection against environmental factors leading to improved durability.

The compact form factor with dimensions of 14 mm length, 11.5 mm width, and 11.5 mm depth facilitates easy PCB mounting with straight PC pins. It has a mechanical life cycle rating of 50,000 cycles, ensuring long-term reliability under frequent use.

Operating temperature range from -30°C to 85°C allows use in diverse environmental conditions. This model is UL approved, meeting rigorous safety and quality standards. Single-pole double-throw (SPDT) contact configuration.

Latching switch operation for secure switching. 3A contact current with 250V AC voltage rating. Copper actuator material for durability and conductivity. Straight PC pin terminal type for PCB mounting. Compact size: 14 x 11.5 x 11.5 mm (L x W x D).

UL standard approved with 50,000 mechanical cycles. Epoxy sealed terminals for enhanced reliability. Operating temperature from -30°C to 85°C.

This product is manufactured in China and is new in condition. The NKK CS12ANW03 slide switch is an ideal choice for industrial, laboratory, electronic manufacturing, and commercial applications requiring high-quality, reliable switching components.
