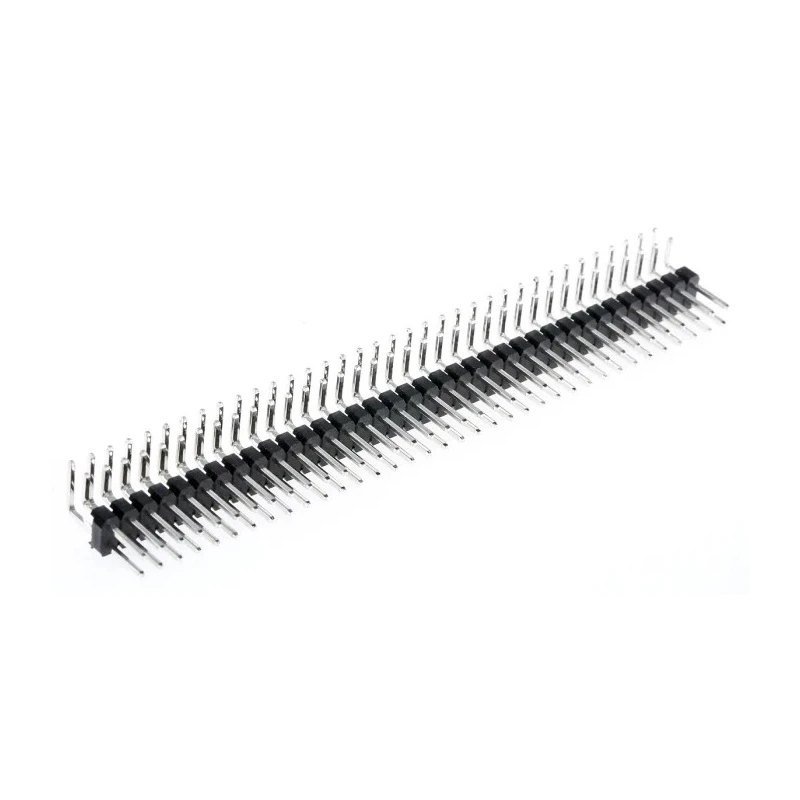

HARWIN M20 Series Right Angle Through Hole Pin Header, 72 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded M20-99536-46
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 750V |
| Brand | HARWIN |
| Orientation | Right Angle |
| Current | 3A |
| Model | M20-99536-46 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 72 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.1mm |
| Connector,PCB,header,tin plated,double row,r/a,72 wayBrand | RS PRO |
Key Features
- Features a right angle orientation for versatile PCB mounting.
- Contains 72 male contacts arranged in 2 rows.
- Constructed with a nylon housing and brass contacts plated with tin for durability.
- Supports current rating of 3A and voltage rating up to 750V.
- Tail pin length is 3mm and mating pin length is 6.1mm for secure soldering.
- Suitable for high temperature soldering processes due to thermoplastic housing.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Unshrouded design allows ease of use and cutting to custom sizes.
Product Description
HARWIN M20-99536-46 Right Angle Through Hole Pin Header is a high-quality electrical connector designed for printed circuit board (PCB) applications. It features 72 male contacts arranged in two rows with a 2.54 mm pitch, making it suitable for dense and reliable board-to-board and wire-to-board connections in various electronic systems.
The connector housing is made from durable nylon thermoplastic which can withstand reflow soldering temperatures, ensuring robustness during manufacturing. The brass contacts feature tin plating which provides corrosion resistance and excellent electrical conductivity. With a current rating of 3A and a maximum voltage of 750V, this pin header is engineered for performance and safety.
This right angle through hole mounting pin header includes tail pins with a length of 3mm and mating pin length of 6.1mm, facilitating secure solder joints and reliable electrical connection. Its unshrouded design offers flexibility and allows users to cut the connector to a smaller size as needed, although care must be taken with the tails during modification.
Operating temperature ranges from -40°C to 105°C, making the connector suitable for a variety of industrial and commercial applications including embedded PCs, motherboards, large electronic systems, industrial monitoring, communications, drives and controls, and consumer electronics.
Right angle orientation for flexible PCB mounting. 72 male brass contacts with tin plating. 2.54 mm pitch, 2 rows configuration. Nylon housing capable of reflow soldering process. Supports 3A current and 750V voltage rating.
Tail pin length 3mm, mating pin length 6.1mm. Unshrouded design allows cutting to custom sizes. Wide operating temperature range from -40°C to 105°C. Ideal for industrial, commercial, and consumer electronics applications.
This HARWIN M20 series pin header is a reliable connector choice for engineers and manufacturers seeking robust, high-performance PCB connectivity solutions. Browse our selection of PCB Headers and related components at EnvMart for your electronic design needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A and a maximum voltage rating of 750V.
The contacts are arranged in a 2-row configuration with a pitch of 2.54 mm.
The housing is made from nylon thermoplastic, while the contacts are brass plated with tin.
It operates reliably within a temperature range of -40°C to 105°C.
The tail pin length is 3mm, and the mating pin length is 6.1mm.
It uses a through hole mounting type for PCB applications.
Yes, it is designed for both board-to-board and wire-to-board connections.
It features a right angle orientation for versatile PCB mounting.
Yes, the nylon housing is capable of withstanding reflow soldering temperatures, making it suitable for high temperature soldering processes.
It has a total of 72 male contacts arranged in 2 rows.
This model has an unshrouded design, allowing for ease of use and the ability to cut to custom sizes.
The country of origin for this product is Taiwan.
