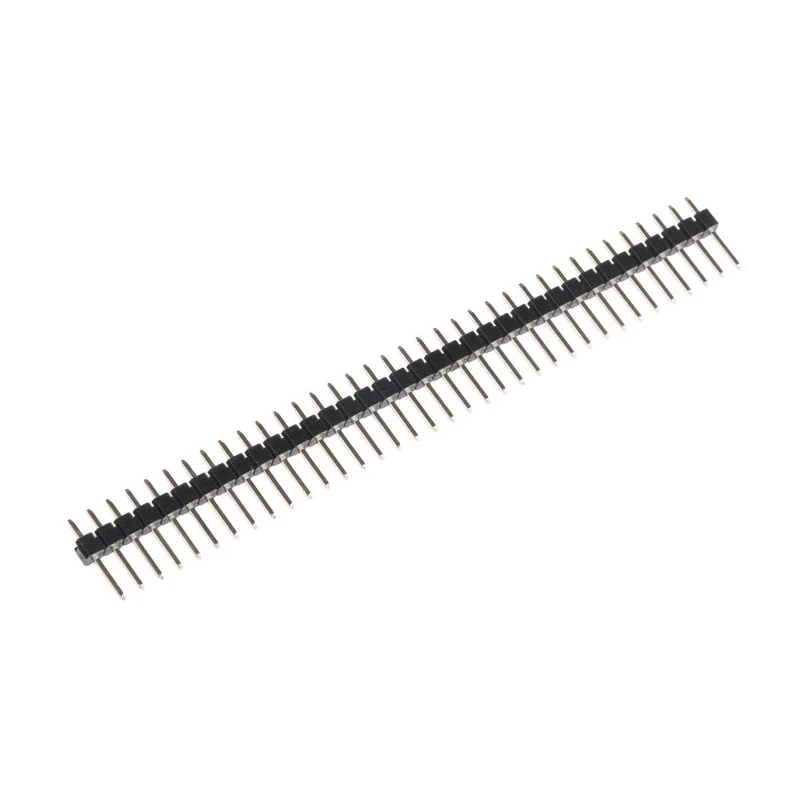

HARWIN M20 Series Straight Through Hole Pin Header, 36 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded M20-9993645

HARWIN M20-9993645 is a high-quality straight through hole pin header designed for printed circuit board (PCB) applications that require a robust and reliable connection. Featuring 36 contacts arranged in a single row with a 2.54 mm pitch, this unshrouded header connector is suitable for various electronics manufacturing needs.

The contacts are made of brass with gold plating to provide excellent electrical conductivity and resistance to corrosion. The housing is crafted from durable nylon thermoplastic that withstands high temperatures during reflow soldering processes, making it compatible with modern PCB assembly techniques.

The connector system supports both board-to-board and wire-to-board configurations, enhancing its flexibility across multiple electronic devices including embedded PCs, motherboards, consumer electronics, and industrial controls. Operating voltage is rated at 1.5 kV with a current rating of 3A, meeting diverse industrial and commercial requirements.

Designed for harsh environments, the operating temperature range of -40°C to 105°C enables consistent performance even under extreme conditions. The tail pin length is 3 mm with mating pin length at 6.1 mm to ensure secure solder connections and mechanical stability.

This M20 series pin header can be trimmed carefully if shorter lengths are needed without compromising mechanical integrity, allowing designers to adapt connectors to their specific PCB layouts.

This pin header supports a current rating of 3A for efficient electrical performance. It features a brass contact material plated with gold to ensure durability and reliable conductivity. The nylon housing enables high-temperature resistance suitable for reflow soldering.

The pins have a tail length of 3 mm and mating pin length of 6.1 mm for secure connections. Its operating temperature ranges from -40°C to 105°C for robust performance in varied environments. The connector system supports board-to-board and wire-to-board mounting configurations.

The product is unshrouded and has a straight orientation with a single row layout for versatile PCB integration. Rated at 1.5 kV voltage withstand capability ensuring electrical safety during operation.

Applications include consumer electronics, communications equipment, industrial monitoring, embedded systems, and motherboards used in commercial computing products. Its versatility makes it a standard component in electronic design and manufacturing segments.
