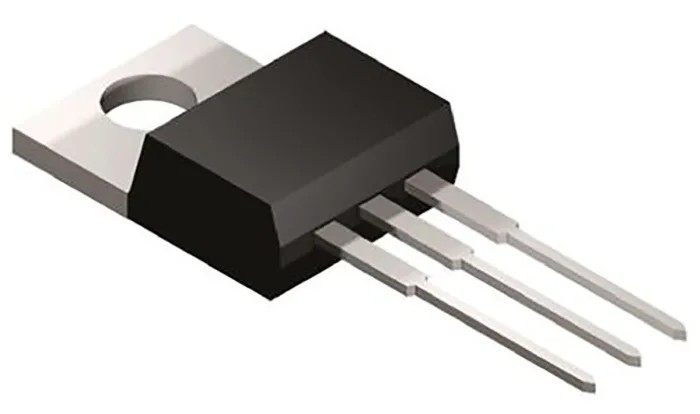

onsemi 35 V 25 A Diode Switching 3-Pin TO-220AB MBR2535CTLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 9.28mm |
| Length | 10.28mm |
| Model | MBR2535CTLG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 25A |
| Peak Reverse Repetitive Voltage Vrrm | 35V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.55V |
| Diode,Schottky,MBR2535CTLBrand | ON Semiconductor |
Key Features
- Provides a maximum continuous forward current of 25 amperes.
- Features a peak reverse repetitive voltage rating of 35 volts.
- Constructed with a common cathode diode configuration.
- Equipped with a low forward voltage drop of 0.55 volts for high efficiency.
- Operates reliably in temperatures ranging from -65°C to 150°C.
- Designed in a compact TO-220AB through-hole package with three pins.
- Supports non-repetitive forward surge currents up to 150 amperes.
- Peak reverse current is limited to 5 milliamperes to reduce leakage.
Product Description
onsemi MBR2535CTLG is a high-performance Schottky barrier diode designed for switching applications. It handles a maximum continuous forward current of 25 amperes and peak reverse voltage of 35 volts, ensuring efficient power rectification and fast switching response.
The diode is housed in a durable TO-220AB through-hole package featuring 3 pins enabling easy mounting on printed circuit boards. It exhibits a low forward voltage drop of 0.55 volts, which helps minimize power loss and heat generation in electronic circuits.
This diode operates effectively across a wide temperature range from -65 degrees Celsius to 150 degrees Celsius, making it suitable for harsh industrial environments. It also supports a peak non-repetitive forward surge current rating of 150 amperes for transient load conditions.
With a common cathode configuration and a peak reverse current of just 5 milliamperes, the MBR2535CTLG maintains minimal leakage currents and high reliability in power management applications.
Its compact dimensions of 10.28 mm length, 4.82 mm width, and 9.28 mm height facilitate integration into power supply designs, automotive electronics, and other industrial systems requiring robust diode solutions.
Maximum continuous forward current: 25 A. Peak reverse repetitive voltage: 35 V. Low forward voltage drop: 0.55 V. Operating temperature range: -65°C to 150°C. TO-220AB package with 3 pins. Peak forward surge current: 150 A.
Common cathode diode configuration. Minimal peak reverse current: 5 mA. Compact dimensions: Length 10.28 mm, Width 4.82 mm, Height 9.28 mm. This diode is ideal for use in industrial power supplies, switching regulators, and various electronic equipment requiring efficient rectification and switching performance.
Explore more Schottky diode and rectifier products from onsemi at EnvMart for reliable electronic components tailored to advanced industrial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 25 amperes.
This diode features a low forward voltage drop of 0.55 volts.
It operates reliably in temperatures ranging from -65°C to 150°C.
It is designed in a compact TO-220AB through-hole package with three pins.
The peak non-repetitive forward surge current rating is 150 amperes.
This model is constructed with a common cathode diode configuration.
The dimensions are 10.28 mm in length, 4.82 mm in width, and 9.28 mm in height.
This model is a Schottky barrier diode designed for switching applications.
It features a through-hole mounting type, suitable for easy PCB integration.
The country of origin for this diode is India.
