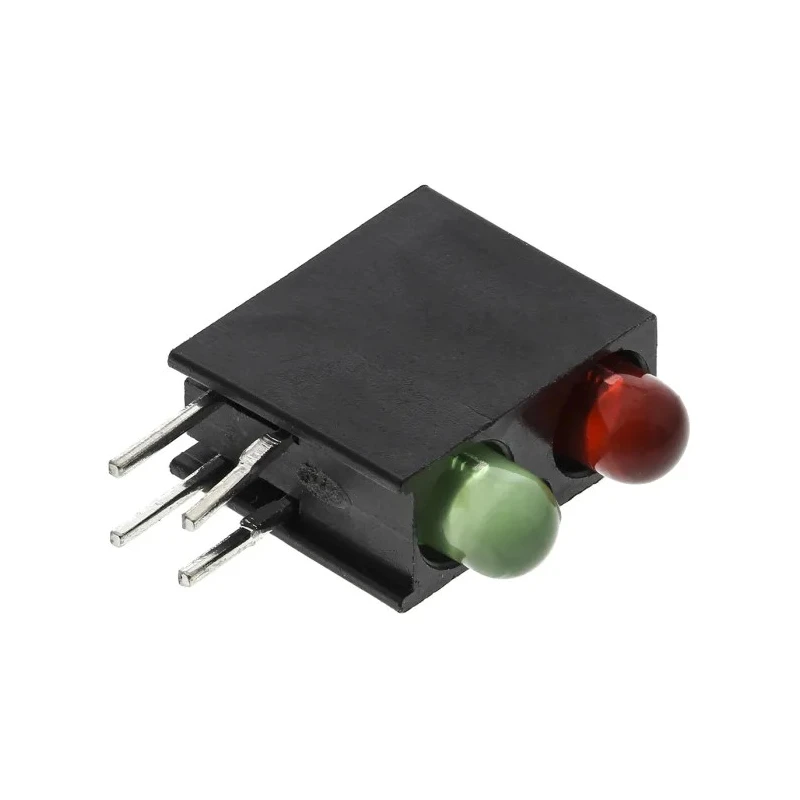

Dialight Green, Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs 2.2 V Multicolour 553-0212F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Length | 8.1mm |
| Model | 553-0212F |
| Mount Type | Through Hole |
| Series | 553 |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 60 ° |
| Sub Type | Multicolour |
| Power Dissipation | 80mW |
| Lens Colour | Red, Green |
| Luminous Intensity | 10mcd |
| Standards/Approvals | MIL-STD-202F, RoHS, UL 94 V-0 |
| LED Colour | Green, Red |
| Number of Pins | 4 |
| Lens Finish | Diffused |
| Minimum Supply Voltage | 2.2V |
| LED Material | GaAsP, GaP |
| Multicolour/Single Colour | Multicolour |
| LED Orientation | Right Angle |
| LED Size | 5 mm (T-1 3/4) |
| Red/green PCB mount LED,5530212 2mA 3mmBrand | Dialight |
Key Features
- The indicator includes two 3 mm LEDs in a right-angle black plastic housing for space-efficient PCB mounting.
- This multicolour LED offers green and red luminous outputs with 10mcd intensity for clear indication.
- It supports a maximum forward current of 30mA with a power dissipation of 80mW.
- The LED has a diffused lens finish with a 60° viewing angle for wide visibility.
- Complies with MIL-STD-202F, RoHS, and UL 94 V-0 standards ensuring reliability and safety.
Product Description
Dialight 553-0212F Green, Red Right Angle PCB LED Indicator is a multicolour PCB-mounted LED indicator designed for reliable visual signalling in electronic applications. This product features two right-angle oriented 3 mm (T-1) LEDs housed in a black plastic package which provides high contrast to the LED light output.
Operating at a minimum supply voltage of 2.2 V, the indicator supports a maximum forward current of 30mA and power dissipation up to 80mW. The LED elements are manufactured using GaAsP and GaP materials, delivering distinct green and red colours with luminous intensity rated at 10 millicandela. Its diffused lens finish and 60-degree viewing angle ensure clear visibility from multiple angles.
The 553 series indicators are through-hole mounted for secure PCB installation and designed to withstand vibration and shock, complying with MIL-STD-202F testing requirements. Additionally, it meets RoHS regulations and is rated UL 94 V-0 for flame retardance, guaranteeing robust and safe use in electronic and industrial controls.
Typical applications include status indication on circuit boards in industrial, commercial, and instrumentation environments, where compact space and clear indication are critical. The right-angle design facilitates efficient use of PCB space, and the bi-level multicolour functionality enables distinct signal representation.
The indicator consists of two 3 mm through-hole LEDs in a compact right-angle configuration. The black housing enhances LED contrast for improved visual clarity. It offers high reliability under harsh conditions including vibration and shock.
Compliance with industry standards ensures suitability for demanding electronic systems. Ideal for electronics manufacturing, industrial instrumentation, and control panels. Explore the comprehensive range of Dialight PCB LED Indicators for durable, high-performance visual signalling solutions in your industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this model is rated at 10 millicandela (mcd).
The minimum supply voltage required for the 553-0212F is 2.2 V.
This LED indicator supports a maximum forward current of 30 mA.
The length of this model is 8.1 mm.
This unit is designed for through-hole mounting on PCBs.
The viewing angle of the 553-0212F is 60 degrees.
The LED elements are manufactured using GaAsP and GaP materials.
It complies with MIL-STD-202F, RoHS, and UL 94 V-0 standards.
The lens finish of this model is diffused.
This indicator includes two 3 mm LEDs.
Typical applications include status indication on circuit boards in industrial, commercial, and instrumentation environments.
The power dissipation for the 553-0212F is rated at 80 mW.
