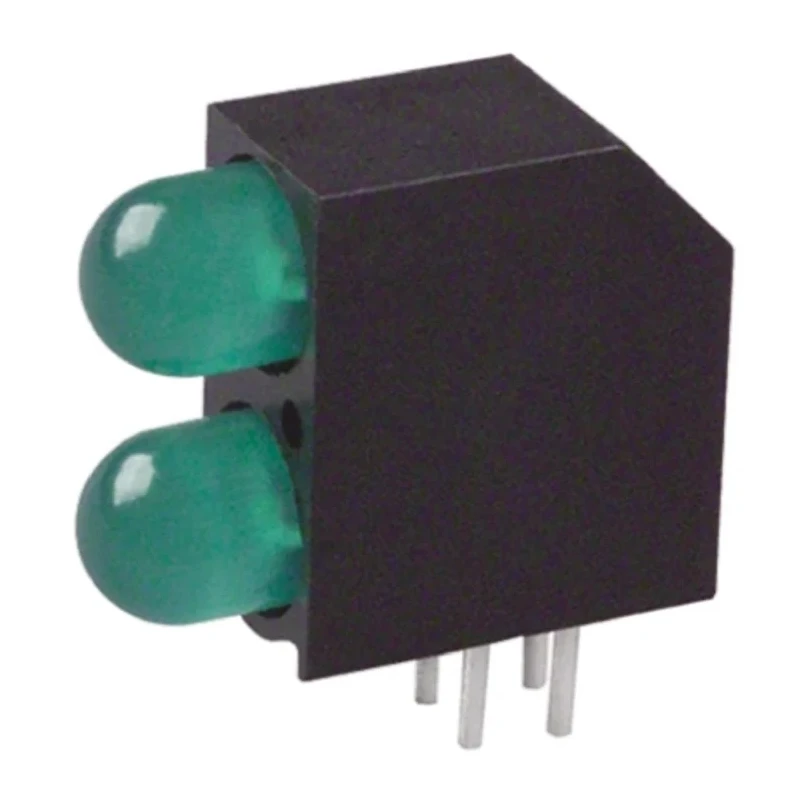

Dialight Green Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs 2.1 V Single Colour 552-0222F

Dialight 552-0222F Green Right Angle PCB LED Indicator 5 mm (T-1 3/4), with 2 LEDs and 2.1 V single colour specification, is an integral component for electronic circuit board applications. This indicator is designed for through-hole mounting on printed circuit boards, offering reliable and efficient signalling with bright green illumination.

The unit features a right-angle LED orientation that facilitates compact PCB design and optimal light direction. The two 5 mm diameter LEDs employ GaAsP and GaP materials, ensuring long-lasting performance and brightness. With a diffused green lens finish, these indicators provide uniform light distribution, enhancing visibility.

The indicator supports a maximum forward current of 30 mA, balancing brightness with power consumption, and has a luminous intensity of 10 millicandela. Its 65-degree viewing angle allows for broad viewing accessibility, making it suitable for applications where visibility from various angles is necessary.

Power dissipation is limited to 80 mW, making this component energy efficient for PCB applications. The indicator length is precisely 15.35 mm, designed for easy integration into electronic assemblies. It meets RoHS standards, ensuring compliance with environmental requirements.

This LED indicator is part of the Dialight 552-0xxx CBI® Circuit Board Indicators series, known for high efficiency, integral resistor, and high-contrast black housing that complies with UL 94V-0 flammability rating. The housing design supports PCB cleaning with stand-offs and features solderability according to MIL-STD-202F method 208F.

Used extensively in industrial electronics, control panels, instrumentation, and signal indication applications, this PCB LED indicator delivers reliable performance in demanding environments.

The LED indicator includes 2 green LEDs with a 5 mm (T-1 3/4) diffused lens. It has a right-angle LED orientation suitable for through-hole PCB mounting. The device supports a maximum forward current of 30 mA for reliable operation.

The viewing angle is 65 degrees, providing wide visibility. The LED material consists of GaAsP and GaP, enhancing performance and durability. Luminous intensity of 10 mcd ensures clear indication in various environments.

Power dissipation is rated at 80 mW for energy efficiency. The indicator has 4 pins for secure through-hole mounting on PCBs. Explore more PCB LED Indicators and related electronic components at EnvMart for industrial and laboratory applications.
