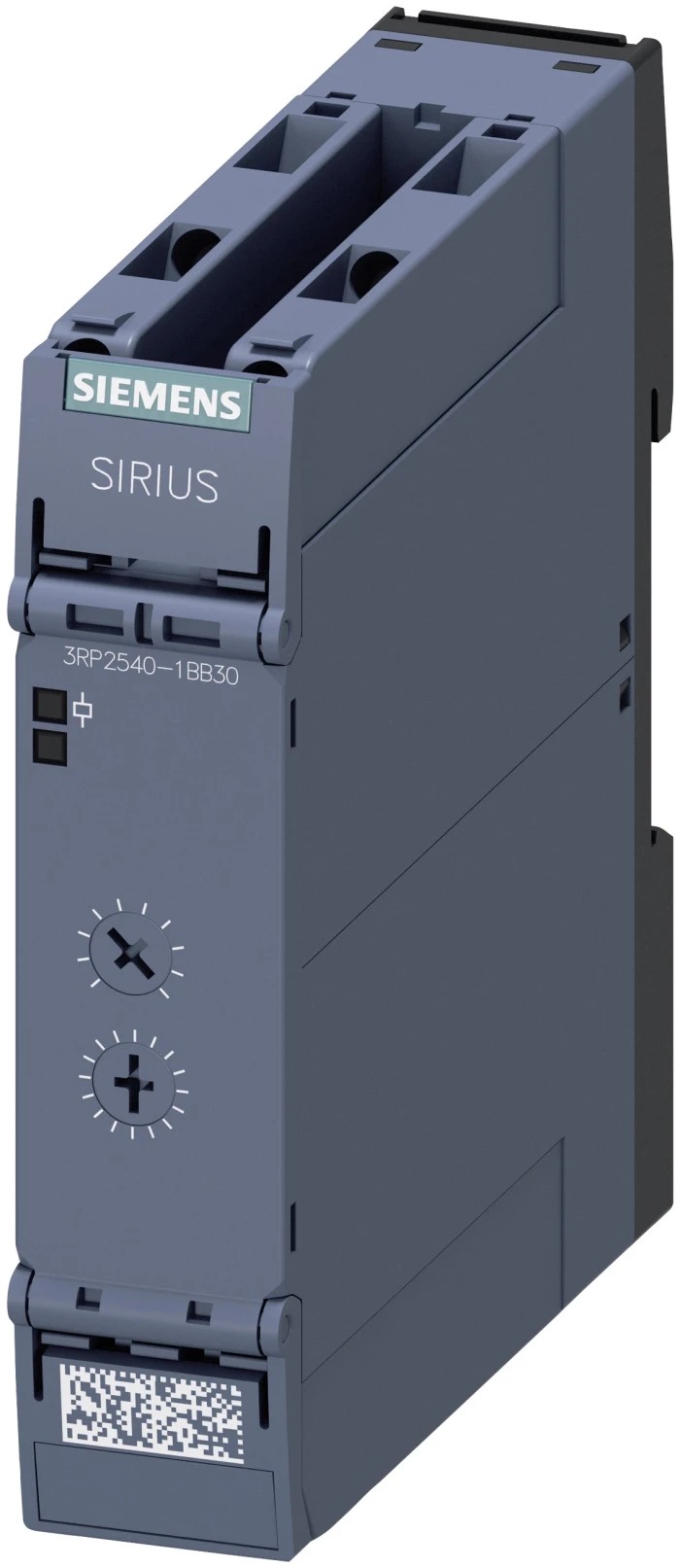

Siemens 3RP25 Series DIN Rail Timer Relay 2-Contact 24 V DC/AC 0.05 to 600 s Time Range OFF Delay DPDT Switch 3RP2540-1BB30

Free Delivery in India | Lowest Global Shipping Charges

Siemens 3RP25 Series DIN Rail Timer Relay 2-Contact 24 V DC/AC 0.05 to 600 s Time Range OFF Delay DPDT Switch 3RP2540-1BB30

Name: Siemens 3RP25 Series DIN Rail Timer Relay 2-Contact 24 V DC/AC 0.05 to 600 s Time Range OFF Delay DPDT Switch 3RP2540-1BB30
Brand: Siemens
SKU: 196899
Price: 265.53 USD
Availability: InStock



Category Timer Relays Brand Siemens Condition New

Specifications

Country of Origin	Germany
Brand	Siemens
Height	100mm
Function	90° Offset, Straight
Length	22.5mm
Model	3RP2540-1BB30
IP Rating	IP20
Mode	OFF Delay
Width	91.6mm
Mount Type	DIN Rail
Series	3RP25
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-25°C
Time Range	0.05 to 600 s, 1 to 20 s
Terminal type	Screw
Number of Contacts	2
Number of Timer Functions	1
Switching Voltage	300V
Contact Current	5A
Supply DC Voltage	24 V dc
Supply AC Voltage	24V ac
Siemens Auxiliary Switch Block, 2 Contact, 1NC, 1NO, DIN, SIRIUS 3RT19262Brand	Siemens
Siemens Auxiliary Contact, 2 Contact, 1 NO/1 NC, 3RT1, 20 mA, 3RT1926-2FJ31Brand	Siemens

Key Features

This timer relay supports a dual voltage supply of 24 V DC and 24 V AC.
The adjustable time range spans from 0.05 to 600 seconds with a selectable 1 to 20 seconds range.
It features an OFF delay mode suitable for control and protection circuits.
The device includes screw-type terminals and 90° offset mounting for DIN rail installation.
Its compact design measures 22.5 mm in length, 91.6 mm in width, and 100 mm in height.
Designed for industrial environments with an IP20 protection rating and operating temperatures from -25°C to 60°C.
The relay can handle contact currents up to 5A and switching voltages up to 300V.
Built to meet standards including EN 954-1, IEC 60068-2-27, IEC 60529, IEC 60664, and IEC 61812-1.

Product Description

Siemens 3RP2540-1BB30 is a high-quality DIN Rail Timer Relay from the SIRIUS 3RP25 series, engineered for reliable control, starting, and protective circuits in industrial automation. It features a 2-contact DPDT switch and dual supply voltage capability of 24 V DC and 24 V AC, offering flexibility for various control applications.

The relay supports a wide adjustable time range from 0.05 to 600 seconds, with a secondary selectable range of 1 to 20 seconds, allowing precise timing settings for your equipment. The OFF delay function enables delayed switching off operations essential for many timing control needs.

Its robust construction includes screw-type terminal connections and a 90° offset mounting option making it easy to install on standard DIN rails. Compact dimensions (22.5 mm length, 91.6 mm width, and 100 mm height) ensure efficient use of control cabinet space.

Rated for industrial environments, this timer relay operates within a temperature range of -25°C to +60°C and has an IP20 protection class, ensuring durability against dust and accidental contact. The relay supports a switching voltage of up to 300V and contact current of 5A, suitable for various automation tasks.

This product complies with multiple international standards including EN 954-1, IEC 60068-2-27, IEC 60529, IEC 60664, and IEC 61812-1, validating its quality and safety for industrial use.

Supports dual supply voltage: 24 V DC and 24 V AC. Time range selector switch for 0.05 to 600 seconds and 1 to 20 seconds intervals. DPDT contact configuration with OFF delay function. IP20 rated enclosure for protection against dust and touch.

Compact DIN Rail mounting with screw terminals. High durability with industrial-grade operating temperature range. Compliant with relevant IEC and EN standards.

This Siemens timer relay is ideal for use in industrial automation, control cabinets, switchgear assemblies, HVAC systems, and manufacturing processes requiring reliable timed switching operations.
