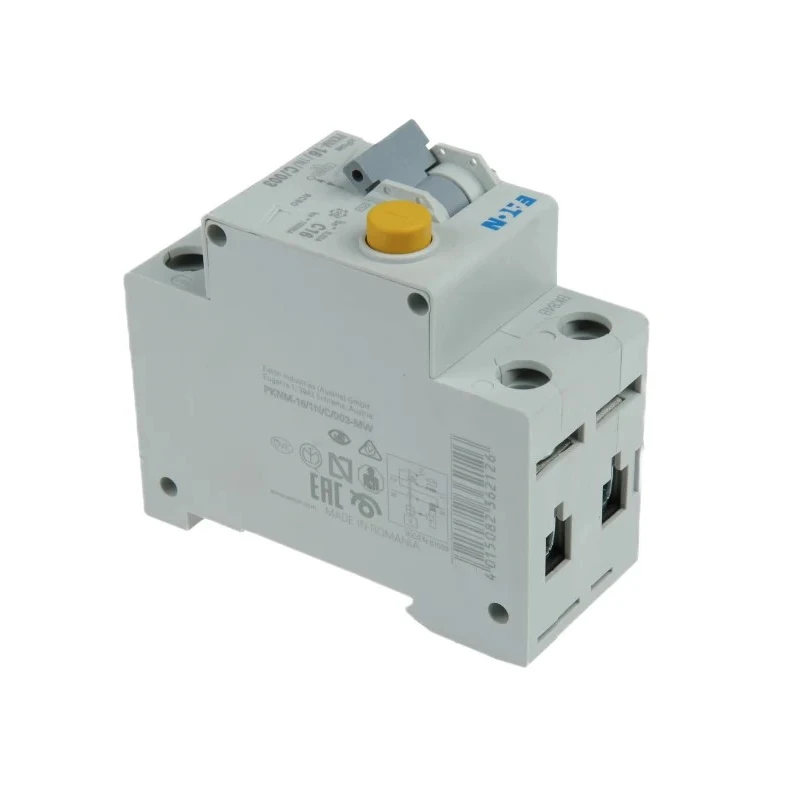

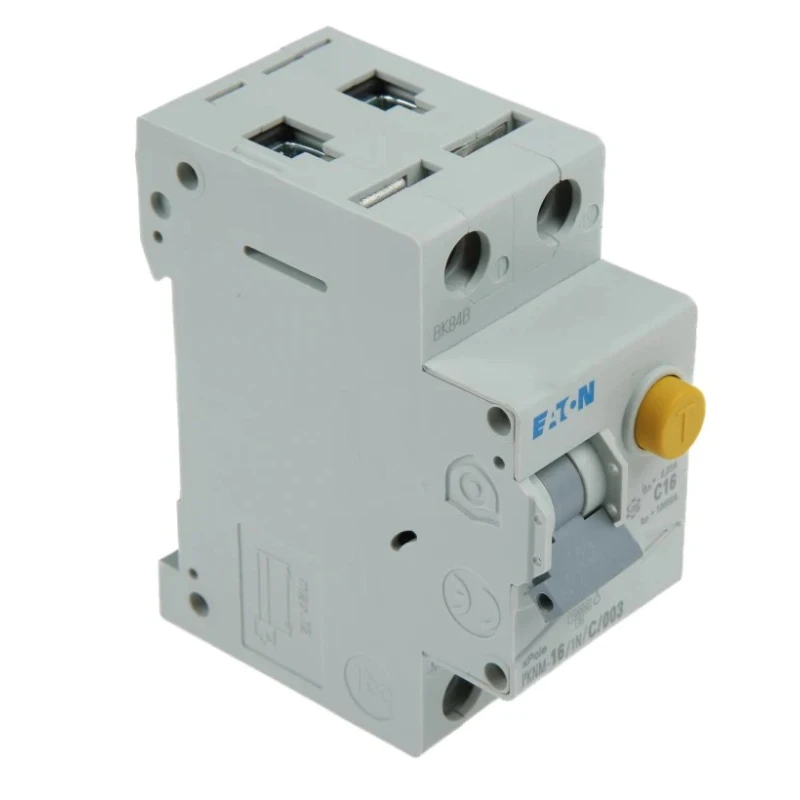

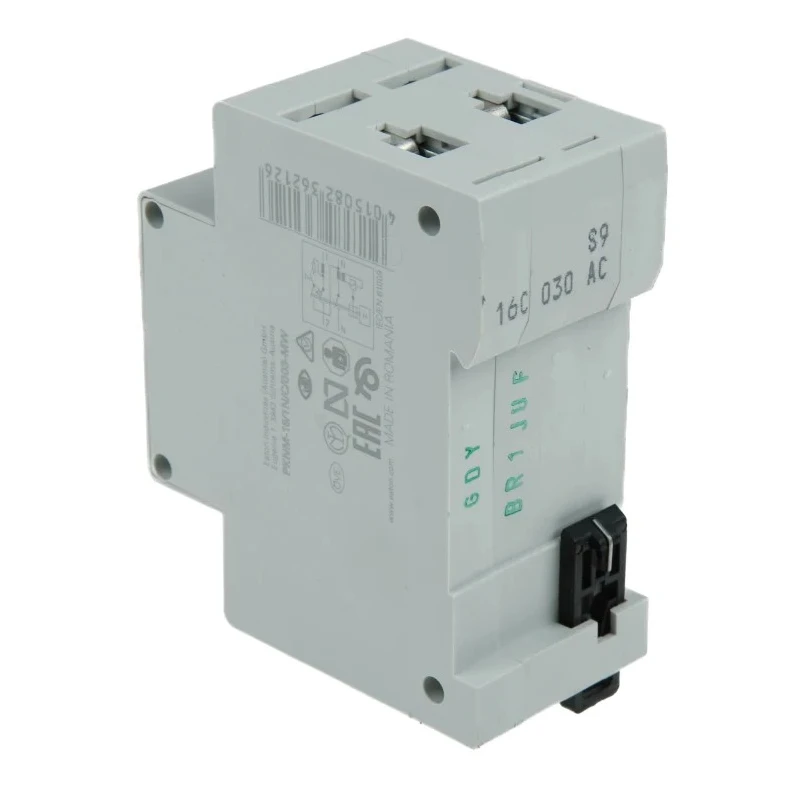

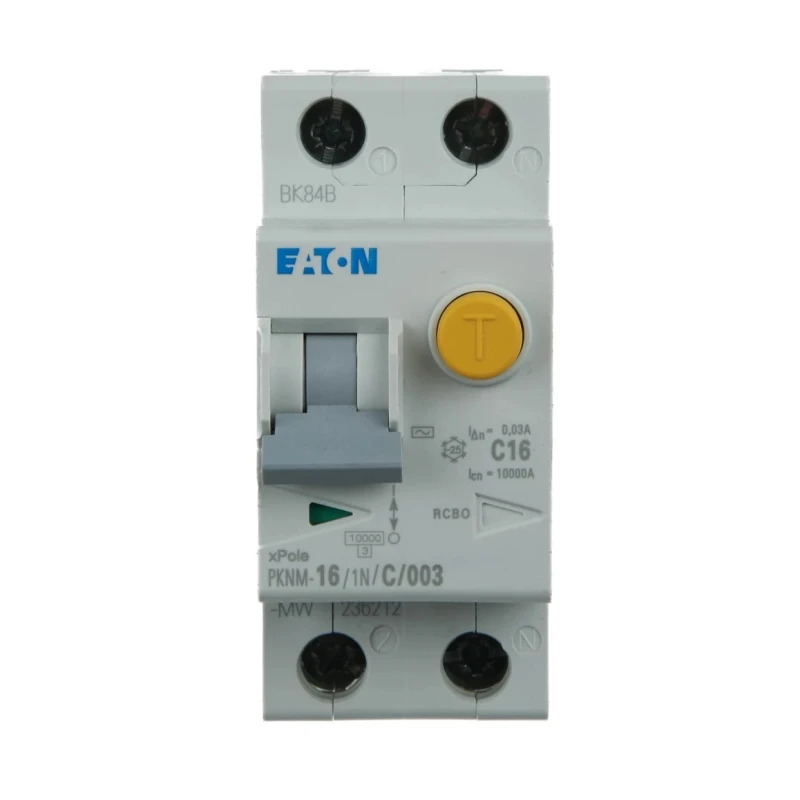

Eaton Residual Current Device 16A 2-Pole 30mA Trip Sensitivity Type C 10kA Breaking Capacity 230V 236212 PKNM-16/1N/C/003-MW

Free Delivery in India | Lowest Global Shipping Charges

Eaton Residual Current Device 16A 2-Pole 30mA Trip Sensitivity Type C 10kA Breaking Capacity 230V 236212 PKNM-16/1N/C/003-MW

Name: Eaton Residual Current Device 16A 2-Pole 30mA Trip Sensitivity Type C 10kA Breaking Capacity 230V 236212 PKNM-16/1N/C/003-MW
Brand: Eaton
SKU: 136843
Price: 208.77 USD
Availability: InStock



Category Residual Current Device Brand Eaton Condition New

Specifications

Country of Origin	Romania
Range	PKNM
Brand	Eaton
Height	80mm
Model	236212 PKNM-16/1N/C/003-MW
Depth	70.5mm
Width	70mm
Mount Type	DIN Rail
Current Rating	16A
Series	PKNM
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	2
Standards/Approvals	EN 61439
Rated AC Voltage	230V ac
Tripping Characteristics	Type C
Tripping Mechanism	Electromagnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Kopp 1 + N 16 A Instantaneous RCD Switch, Trip Sensitivity 30mABrand	Kopp
Eaton MEM 2P 16 A Instantaneous RCD, Trip Sensitivity 30mABrand	Eaton MEM

Key Features

This device uses Type C tripping characteristics for enhanced protection.
It features a 10kA breaking capacity ensuring high fault handling ability.
DIN rail mounting type allows easy and secure installation.
Screw terminal contact type provides tight and reliable electrical connections.
Instantaneous break time offers immediate disconnection to prevent hazards.
Equipped with a toggle switch as reset actuator for simple manual control.
Complies with EN 61439 standards for safety and reliability.
Compact dimensions of 80mm height, 70mm width and 70.5mm depth save space in electrical panels.

Product Description

The Eaton 236212 PKNM-16/1N/C/003-MW Residual Current Device (RCD) is designed for industrial and residential electrical safety applications, rated at 16A with 2 poles. It operates at 230V AC and features a trip sensitivity of 30mA with instantaneous break time for rapid fault clearing.

This RCD uses Type C tripping characteristics that are suitable for protecting circuits with moderate inrush currents. The device has an impressive breaking capacity of 10kA which safeguards against high fault current scenarios effectively.

Mounted on DIN rails, the unit facilitates quick and secure installation while the screw terminal contact type ensures excellent conductivity and reliable fastening.

Its compact dimensions (80mm height, 70mm width, 70.5mm depth) allow for space-saving usage in distribution boards. The toggle switch reset actuator enables user-friendly resetting after a trip occurrence.

Manufactured according to EN 61439 standards, this RCD ensures compliance with industrial and residential electrical safety norms. Eaton’s PKNM series RCDs prevent electric shocks and fire risks by tripping the electrical circuit when a fault current is detected, making it a crucial protective device in electrical installations.

This residual current device protects against electric shocks and fire hazards through rapid disconnection. It monitors the balance of current flows and trips instantly when an imbalance is detected. Suitable for industrial and residential applications with exposed wiring or risk of earth faults.

Features a red and green contact position indicator for easy status monitoring. 3-position DIN rail clip helps to prevent unauthorized removal, enhancing safety. This device originates from Romania, reflecting Eaton's commitment to high-quality electrical components.

Explore our comprehensive category of Residual Current Devices and Circuit Breakers to find more Eaton industrial electrical protection products suitable for your needs.
