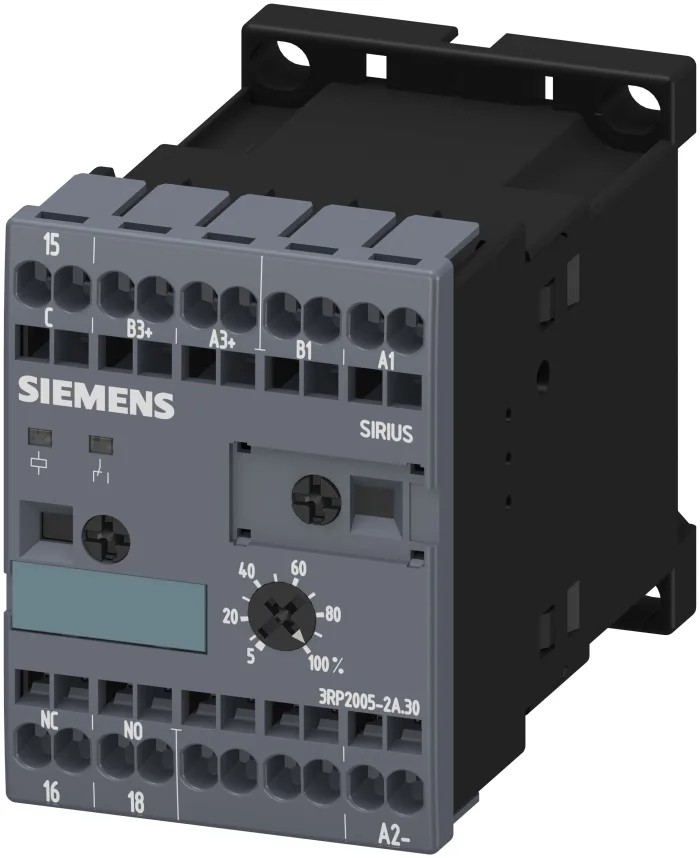

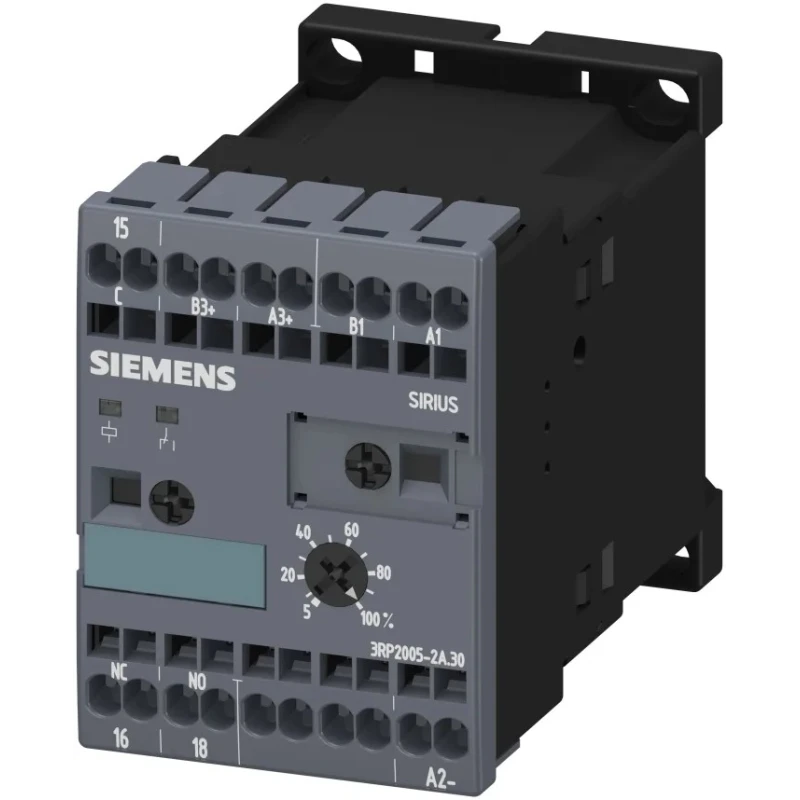

Siemens Multifunction DIN Rail Timer Relay 1-Contact SPDT 24 V dc/ac 0.05 s to 100 h 3RP2005-2AP30

Free Delivery in India | Lowest Global Shipping Charges

Siemens Multifunction DIN Rail Timer Relay 1-Contact SPDT 24 V dc/ac 0.05 s to 100 h 3RP2005-2AP30

Name: Siemens Multifunction DIN Rail Timer Relay 1-Contact SPDT 24 V dc/ac 0.05 s to 100 h 3RP2005-2AP30
Brand: Siemens
SKU: 196893
Price: 182.51 USD
Availability: InStock



Category Timer Relays Brand Siemens Condition New

Specifications

Country of Origin	Czech Republic
Brand	Siemens
Height	60mm
Function	Multifunction
Length	45mm
Model	3RP2005-2AP30
IP Rating	IP20
Mode	Multifunction
Width	73mm
Mount Type	DIN Rail
Series	3RP20
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Minimum Operating Temperature	-25°C
Time Range	0.05 s to 100 h
Terminal type	Cage Clamp
Number of Contacts	1
Number of Timer Functions	Multifunction
Switching Voltage	300V
Contact Current	5A
Supply DC Voltage	24 V dc
Supply AC Voltage	24V ac

Key Features

Designed for control, starting, and protective circuits involving time delay switching operations.
Compact 45 mm width suitable for control cabinets and switchgear.
Single changeover SPDT contact rated for 5 amperes contact current.
Supports a wide temperature range from -25°C to 60°C for reliable industrial use.
Equipped with multifunction timer functions for versatile timing applications.
Screw terminal cage clamp for secure and easy wiring.
Suitable for DIN rail mounting providing modular installation.
Complies with IEC and EN standards including IEC 61812-1 and IEC 60529 (IP20 rating).

Product Description

Siemens 3RP2005-2AP30 is a multifunction DIN rail timer relay designed for industrial automation and control applications. It features a single SPDT contact and operates at a supply voltage of 24 V dc or 24 V ac. The timer relay offers a broad time range from 0.05 seconds up to 100 hours, making it ideal for precise time delay switching tasks in control systems.

This relay is built for use in control cabinets, switchgear, and automation panels, providing reliable control functions in starting, protective, and switching circuits. The compact 45 mm width helps save panel space while delivering multifunctional timer capabilities suitable for a wide array of industrial timing requirements.

With an operating temperature range from -25°C to 60°C and IP20 ingress protection, the 3RP2005-2AP30 is built to withstand challenging industrial environments. It includes a screw terminal cage clamp design for dependable wiring connections and facilitates easy DIN rail mounting for modular and convenient installation.

The relay complies with international standards such as EN 61000-6-4, IEC 61812-1, EN 61000-6-2, and IEC 60529, ensuring top quality and safety in industrial automation scenarios. Designed for multifunction timing operations with 1 SPDT contact rated at 5 A.

Wide voltage compatibility at 24 V dc and 24 V ac supply. Compact size of 45 mm length, 73 mm width, and 60 mm height. Suitable for installation on standard DIN rails. High reliability under industrial environmental conditions.

Used extensively in industrial automation, manufacturing, electrical control, and protective relay setups. Country of origin is Czech Republic. Explore the Siemens Timer Relays category for more advanced industrial automation components at EnvMart.
