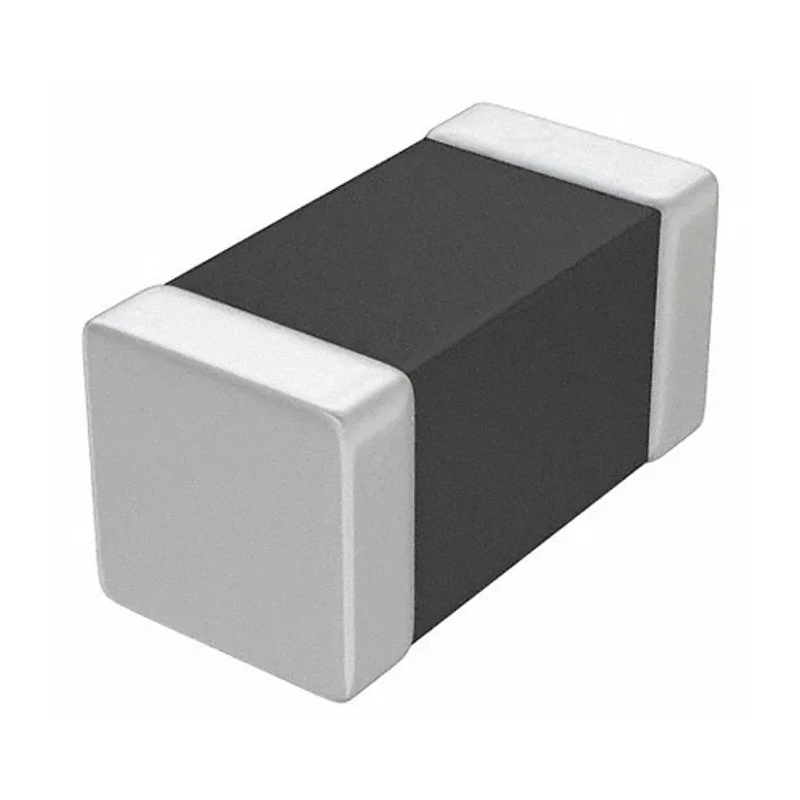

Murata 0.8 mm Solder Mount 0603 Chip Ferrite Bead 600 Ω at 100 MHz 700 Ω at 1 GHz BLM18EG601SH1D

Murata BLM18EG601SH1D chip ferrite bead is a high-quality passive electronic component designed for effective EMI noise suppression in a compact 0603 surface-mount package measuring 1.6 mm by 0.8 mm by 0.8 mm. It features a solder mount type ensuring excellent mechanical and electrical connectivity on printed circuit boards.

This ferrite bead provides an impedance of 600 ohms at 100 MHz and 700 ohms at 1 GHz, making it suitable for filtering high-frequency noise in automotive and industrial electronic circuits. The ferrite material construction ensures that noise is reduced without distortion of signal waveforms or resonance issues, maintaining signal integrity.

The component has a high current rating of 500 mA and a maximum DC resistance of 350 milliohms, which offers efficient performance with minimal power loss. It is designed to operate reliably in harsh conditions with an operating temperature range from -55°C to 125°C, adhering to the automotive-grade AEC-Q200 standard for enhanced quality and durability.

Murata’s nickel barrier external electrodes provide excellent solder heat resistance, ensuring durability during the soldering process and high assembly yields. The ferrite bead series BLM18EG/GG/HB/HD/HE/HG/HK is engineered for circuits where stable noise suppression is necessary, especially where ground lines are unstable.

This chip ferrite bead is manufactured with strict quality controls in Japan, assuring performance consistency and long product life in demanding environments. It is widely used in automotive, industrial electronics, and general electronic applications requiring reliable EMI filtering.

Provides excellent EMI filtering for automotive and general use applications. Nickel barrier electrodes ensure excellent solder heat resistance. Compact SMD 0603 size of 1.6 mm length and 0.8 mm height and depth. High current rating of 500 mA with low DC resistance of 350 mΩ.

Operates reliably from -55°C up to a maximum of 125°C. Meets automotive standard AEC-Q200 for quality and durability. Ferrite material construction reduces noise without distorting signal waveforms. Ideal for circuits with unstable ground lines requiring stable noise suppression.

Manufactured in Japan ensuring high reliability and quality. Surface mount type designed for solder mounting on PCBs for easy assembly.

For industrial electronics, automotive systems, and general PCB applications requiring robust EMI noise suppression, the Murata BLM18EG601SH1D Ferrite Bead offers a reliable and high-performance solution. Explore related Murata electronic components and join EnvMart for trusted industrial-grade electronic parts and supplies.
