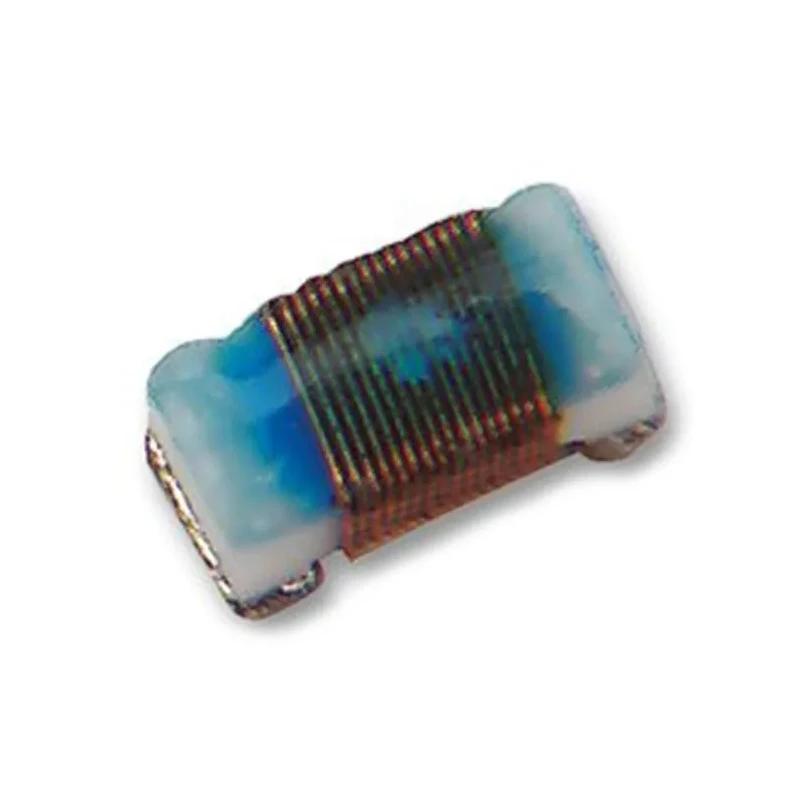

Murata Wirewound Surface Mount Inductor Non-Magnetic Ceramic Core 0.012 μH ±3% 500 mA 1005 LQW15AN12NH00D

Murata LQW15AN12NH00D Wirewound Surface Mount Inductor is engineered with a high-quality non-magnetic ceramic core, delivering a precise inductance value of 0.012 μH with a ±3 % tolerance suitable for high-frequency applications.

This Surface Mount Inductor features a compact 1005 package measuring 1 mm in length, 0.5 mm in height, and 0.6 mm in depth, making it ideal for dense PCB layouts. Supporting a maximum DC current of 500 mA and offering low maximum DC resistance of 140 mΩ, it ensures reliable performance in demanding telecommunications equipment.

The device meets RoHS standards and operates effectively within a temperature range from -55°C to 125°C, ensuring durability across varied environments. The construction is wirewound with a high minimum quality factor of 30 and a maximum self-resonant frequency of 5.5 MHz, optimized for VHF and UHF circuits.

Its packaging on paper tape enables smooth automated soldering and assembly processes. Ideal for applications including Bluetooth modules, GSM and W-LAN wireless communication devices in industrial, laboratory, and commercial settings.

High-quality wirewound construction designed for high frequency circuits. Compact dimensions with 1mm length, 0.5mm height, and 0.6mm depth. Non-magnetic ceramic core ensuring stable inductance characteristics. RoHS compliant with a maximum operating temperature of 125°C.

Offers low DC resistance of 140 mΩ and a minimum quality factor of 30. Packaging includes paper tape for efficient automated assembly. Suitable for Bluetooth, GSM, and W-LAN applications in wireless telecommunications. Surface mount design with 2 pins and solder termination style.
