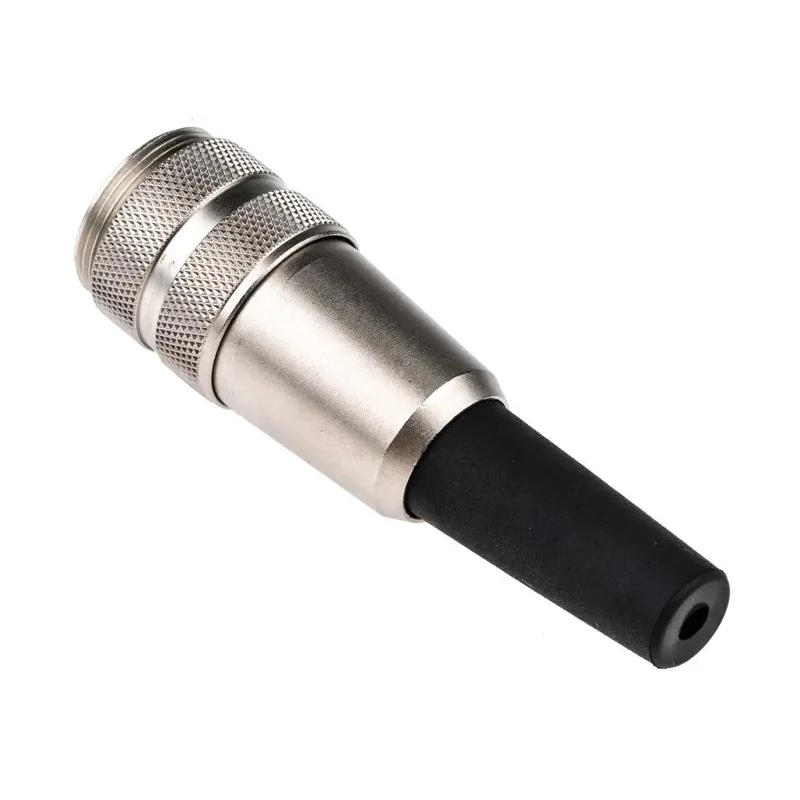

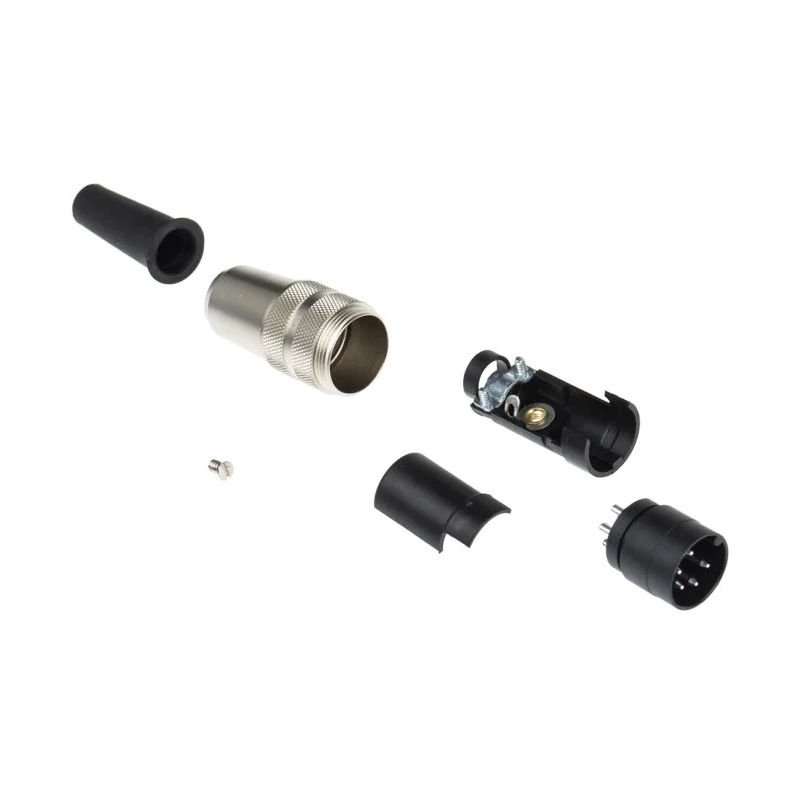

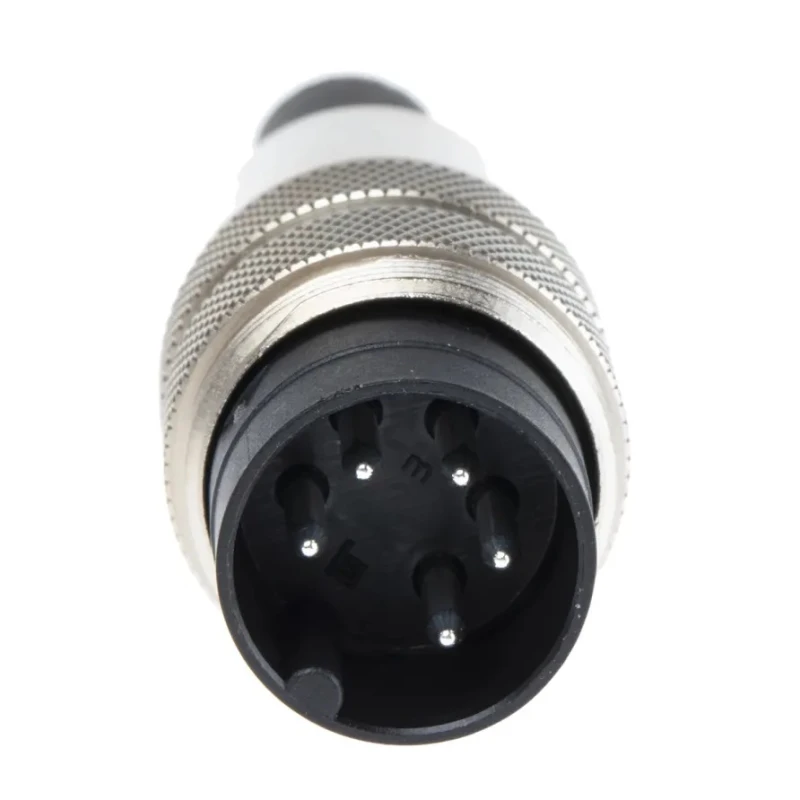

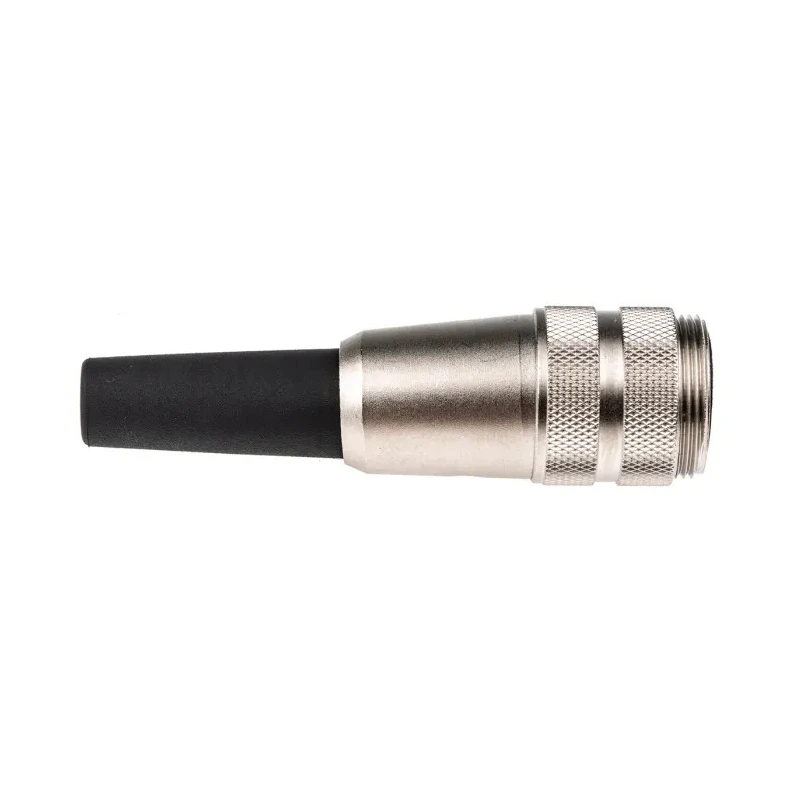

binder Circular Connector, 5 Contacts, Cable Mount, Plug Male, IP40 Protection, Polyamide Housing, 125V, 6A 09-0313-00-05
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 125V |
| Brand | binder |
| Orientation | Straight |
| Current | 6A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 5 |
| Contact Plating | Silver |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shell Size | 18.5 mm |
| Mating Type | Screw |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- The connector features five silver-plated brass contacts for excellent conductivity and corrosion resistance.
- Equipped with a durable polyamide housing that offers mechanical strength and electrical insulation.
- Screw-type mating ensures stable and secure connection with cable mounting termination.
- Rated for continuous current of 6 A and voltage up to 125 V, suitable for control and signal circuits.
- Operating temperature range from -40°C to 85°C supports diverse industrial environments.
- The compact M16 connector uses solder termination for custom cable assembly.
- Designed for industrial applications including sensor and actuator cabling, laboratory test rigs, and manufacturing machinery peripheral connections.
- Provides moderate environmental protection as per IP40 ingress rating.
Product Description
binder 09-0313-00-05 Circular Connector is a robust industrial-grade M16 size plug connector with 5 contacts designed for cable mounting applications. Rated for 125 V and 6 A current, it ensures secure and reliable transmission of power and signals in demanding environments.
Constructed with a polyamide shell, this connector combines mechanical durability with excellent electrical insulation while maintaining lightweight properties. The five contacts are brass, silver-plated for enhanced conductivity and oxidation resistance, ensuring stable contact over time.
The connector features screw-type mating providing a secure and stable mechanical and electrical connection without additional locking accessories. It utilizes solder termination enabling bespoke cable assembly for specific installation requirements.
Operating over a broad temperature range from -40°C to 85°C, it caters to various industrial settings including automation cabinets, laboratory test rigs, control panels, and manufacturing machinery. The IP40 ingress protection rating offers moderate defense against dust and accidental contact.
Typical use cases include sensor and actuator cabling, signal transmission in laboratory and test environments, and compact multi-pin power interfacing in control systems. Manufactured in Germany, this connector adheres to stringent quality and durability standards required in industrial applications.
Five silver-plated brass contacts provide consistent conductivity and corrosion resistance. Durable polyamide housing ensures mechanical strength and electrical insulation. Screw-type mating secures stable cable-mounted connections.
Rated 125 V and continuous 6 A current capacity for low-power circuits. Operating temperature from -40 to 85°C for versatile industrial use. Solder termination facilitates custom cable assembly. IP40 ingress protection for moderate environmental resistance.
Ideal for industrial automation, laboratory setups, and manufacturing equipment. Explore EnvMart for a wide range of Industrial Circular Connectors, ensuring compatibility and premium quality for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 125V.
It has a continuous current capacity of 6A.
The operating temperature range is from -40°C to 85°C.
This unit utilizes solder termination for custom cable assembly.
It has an IP40 ingress protection rating, providing moderate protection against dust and accidental contact.
This model features five contacts.
The housing is made of polyamide, and the contacts are silver-plated brass.
The shell size of this unit is 18.5 mm.
It features screw-type mating for secure connections.
This connector is manufactured in Germany.
It is designed for industrial applications such as sensor and actuator cabling, laboratory test rigs, and manufacturing machinery peripheral connections.
This model is classified as an M16 connector size.
