| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQG15HN |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQG15HN |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Ceramic |
| Inductance | 0.039μH |
| Package/Case | 1005 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1060mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1200MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |

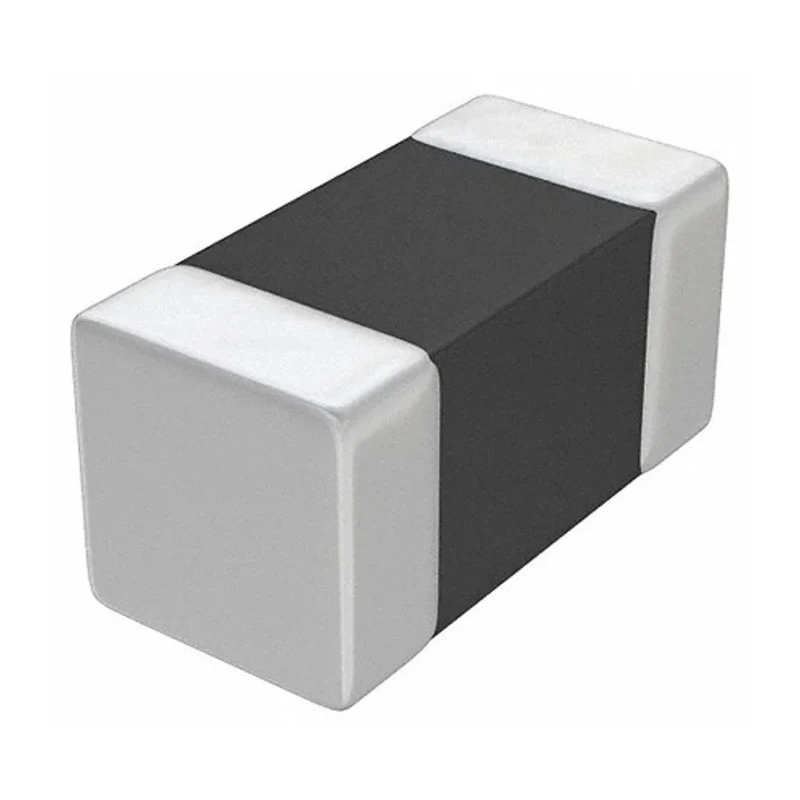

Murata LQG15HN unshielded wirewound surface mount inductor is designed with a multilayer construction and non-magnetic ceramic core, offering a 0.039 μH inductance value with ±5% tolerance. It supports a maximum DC current of 200 mA, making it ideal for various electronic applications requiring miniature inductors.
This 1005-sized inductor measures 1 mm in length, 0.5 mm in height, and 0.5 mm in depth, fitting compact circuit assemblies. Its maximum DC resistance is 1060 mΩ which ensures minimal power loss during operation.
The component features a solder termination style and is supplied in paper tape packaging suitable for automated placement during manufacturing. It can reliably operate in a temperature range of -55°C to 125°C, supporting industrial and commercial electronics operating environments.
Its maximum self-resonant frequency of 1200 MHz and minimum quality factor of 8 make it well suited for high-frequency circuits, including chokes, WLAN networks, RF circuit matching, and mobile communication devices.
The multilayer wirewound construction balances rated current, size, and inductance tolerance, providing stability and reliability for demanding applications. Features a non-magnetic ceramic core for stable inductance. Handles up to 200 mA DC current with ±5% inductance tolerance.
Compact 1005 package allows usage in space-constrained designs. Wide operating temperature range from -55°C to 125°C. High-frequency capability with 1200 MHz self-resonant frequency. Multilayer construction enhances reliability and performance.
Solder termination style ensures easy mounting and electrical contact. Packaged in paper tape for automated assembly processes.
This Murata LQG15HN inductor is produced in Japan, maintaining high manufacturing quality standards. It is a reliable choice for automotive, industrial, and communication equipment requiring precise inductive components.
Explore other Surface Mount Inductors and electronic components in the EnvMart catalog to complement your electronic design and manufacturing needs.
