| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQG15HN |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQG15HN |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Ceramic |
| Inductance | 0.039μH |
| Package/Case | 1005 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1060mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1200MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |

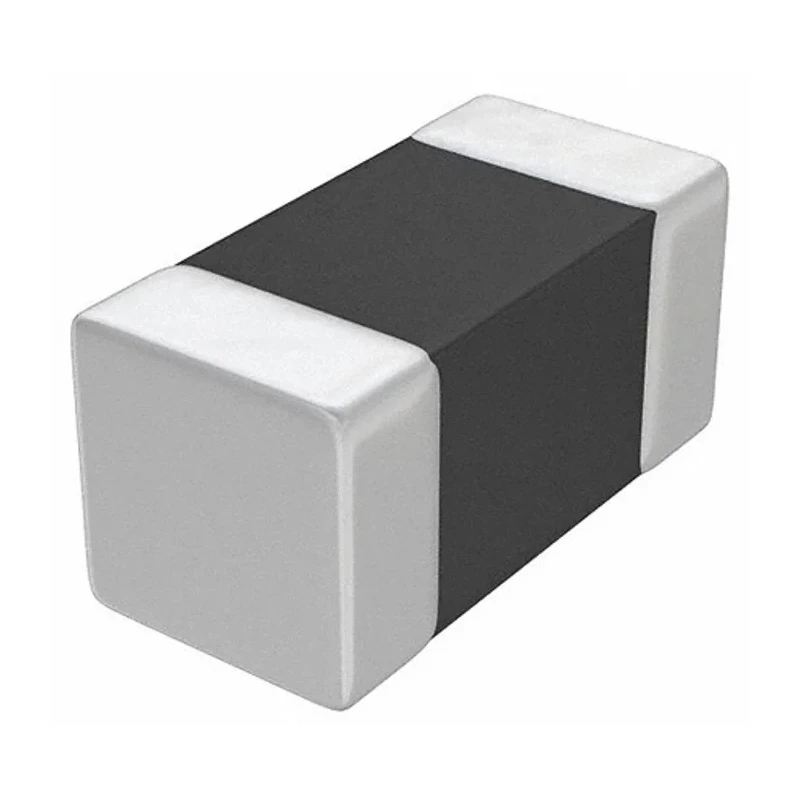

Murata LQG15HN Unshielded Wirewound Surface Mount Inductor in 1005 Package features a multilayer construction with a non-magnetic ceramic core providing stable inductance of 0.039 μH and a maximum DC current rating of 200mA. It is ideal for use in high frequency circuits reaching up to 1200MHz self-resonant frequency and operates reliably across a wide temperature range from -55°C to 125°C.
The compact 1mm length and 0.5mm height and depth dimensions enable efficient PCB space utilization. Its construction includes solder termination style for ease of assembly and integration in automated manufacturing. With an inductance tolerance of ±5 percent and a low maximum DC resistance of 1060mΩ, the component ensures precise and low-loss performance.
This inductor is widely suitable for various applications including RF circuit matching, chokes, WLAN networks, and mobile communication equipment resonance. Its multilayer build balances rated current, size, and L value tolerance.
Manufactured in Japan, the Murata LQG15HN series offers high stability at high frequencies along with monolithic structure durability. The product is moulded and designed for surface mount installation and complies with typical passive component standards though it does not carry specific automotive certifications.
Multilayer Surface Mount Inductor with non-magnetic ceramic core. 0.039 μH inductance with ±5% tolerance ensures reliable circuit performance. Maximum DC current rating of 200mA suitable for moderate current applications.
Compact 1005 package with length 1mm, height and depth 0.5mm. Maximum operating temperature of 125°C supports high temperature environments. Low DC resistance of 1060 mΩ minimizes power loss. Maximum self-resonant frequency of 1200 MHz for high frequency applications.
Inductor construction is multilayer, designed for surface mount technology. Ideal for use in chokes, WLAN, RF circuits and mobile communication equipment. Explore more passive electronic components at EnvMart to support your advanced electronic design needs.
