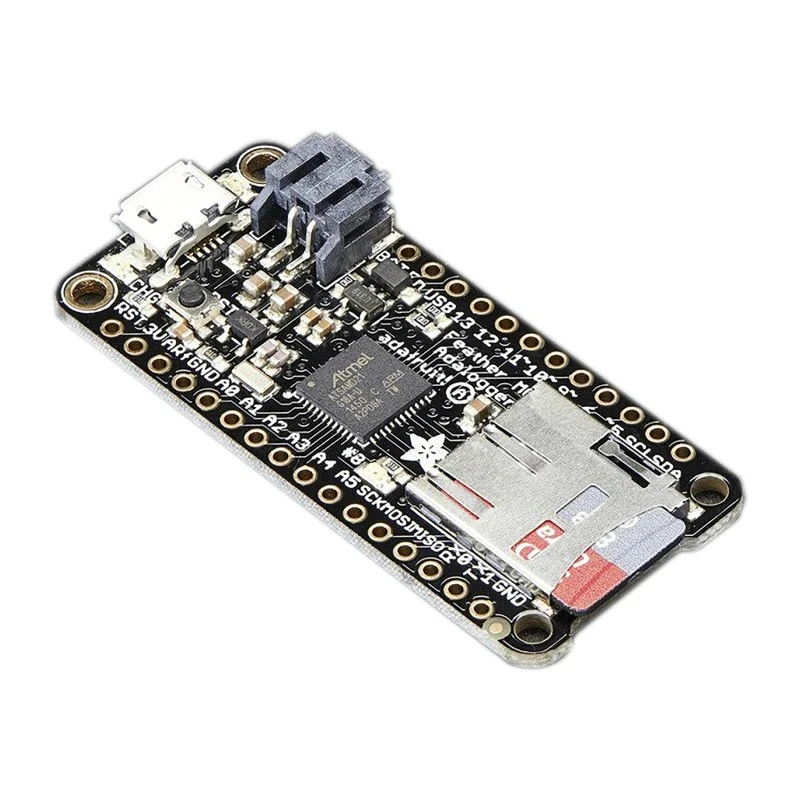

ADAFRUIT INDUSTRIES Feather M0 Adalogger MCU Development Board 3.3V 48MHz Cortex M0 ARM ATSAMD21G18 256KB FLASH 32KB RAM 2796
Specifications
| Country of Origin | United States |
|---|---|
| Size | 51 x 23 x 8 mm (without headers) |
| Brand | ADAFRUIT INDUSTRIES |
| Memory | 256KB FLASH + 32KB of RAM |
| Model | 2796 |
| Technology | MCU |
| Interfaces | USB native support, comes with USB bootloader and serial port debugging |
| GPIO | 20 pins |
| Charging | Built in 100mA LiPoly charger with charging status indicator light |
| Standards/Approvals | RoHS |
| Device Core | Cortex M0 |
| Kit Classification | Development Board |
| Kit Name | Feather M0 Adalogger |
| Processor Part Number | ATSAMD21G18 |
| Processor Type | Microcontroller |
| Processor Family Name | ARM |
| Featherweight | 5.3g |
| PWM | 8 pins |
| Analogue inputs | 10 |
| Chip | ATSAMD21G18 @ 48MHz with 3.3V logic/power |
| ADAFRUIT INDUSTRIES Feather M0 WiFi Development Board 3010Brand | ADAFRUIT INDUSTRIES |
Key Features
- This development board is powered by the ATSAMD21G18 microcontroller delivering 256 KB flash and 32 KB RAM memory.
- It supports up to 20 GPIO pins with 10 analogue inputs and 8 PWM output pins for flexible interfacing.
- The board measures 51 x 23 x 8 mm without headers, weighing only 5.3 grams for portability.
- It features a built-in 100mA LiPoly battery charger with a charging status indicator, allowing battery operation or USB power supply.
- The native USB support includes bootloader and serial debugging capabilities for fast and easy programming.
- Suitable for embedded, electronic prototyping, STEM education, and portable low power applications.
- RoHS compliant and manufactured in the United States ensuring quality and standards compliance.
Product Description
ADAFRUIT INDUSTRIES 2796 Feather M0 Adalogger MCU Development Board is a high-performance microcontroller development board with an ARM Cortex M0 core operating at 48 MHz and 3.3 V logic. It comes equipped with 256 KB of FLASH memory and 32 KB of RAM, delivering ample resources for embedded applications and prototyping.
The board's compact size of 51 x 23 x 8 mm and featherweight design at only 5.3 grams makes it ideal for portable projects. It incorporates 20 GPIO pins including 10 analog inputs and 8 PWM outputs to support diverse sensor interfacing and motor control.
For power, the Feather M0 Adalogger offers flexible options: it can be powered by a 3.7 V Lithium polymer battery with onboard charging and status indicators, or via a microUSB port for direct USB power and programming, making it highly versatile.
The integrated USB bootloader and native USB support allow serial programming and debugging without additional hardware, facilitating quick development cycles via the Arduino IDE.
This development board is RoHS compliant and manufactured in the United States, suitable for use in electronics prototyping, embedded system designs, STEM education projects, and any low-power portable device applications requiring compact high-performance MCU solutions.
Powered by ATSAMD21G18 Cortex M0 ARM MCU at 48 MHz, 3.3 V logic. Features 256 KB FLASH memory and 32 KB RAM with no EEPROM. Includes 20 GPIO, 10 analog inputs, and 8 PWM pins for flexible connectivity. Compact dimensions: 51 x 23 x 8 mm; lightweight at 5.3 grams.
Built-in 100mA LiPoly battery charger and charging status indicator light. Native USB support with bootloader and serial debugging interface. Ideal for embedded prototypes, portable applications, and STEM education.
This product belongs to the 'Development Board' category in EnvMart’s Electronics & Electricals catalog. Explore more innovative microcontroller Development Boards and prototyping tools to enhance your projects and designs.
