ADAFRUIT INDUSTRIES 2.4 in TFT LCD Resistive Touch Screen Display Module with ILI9341 Controller and MicroSD Socket 2478

Free Delivery in India | Lowest Global Shipping Charges

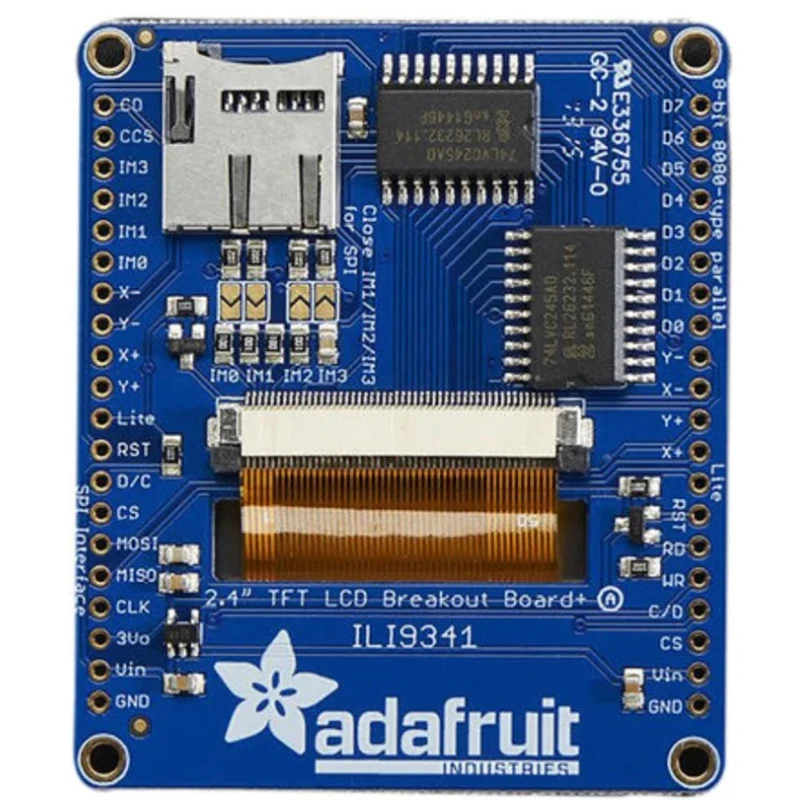

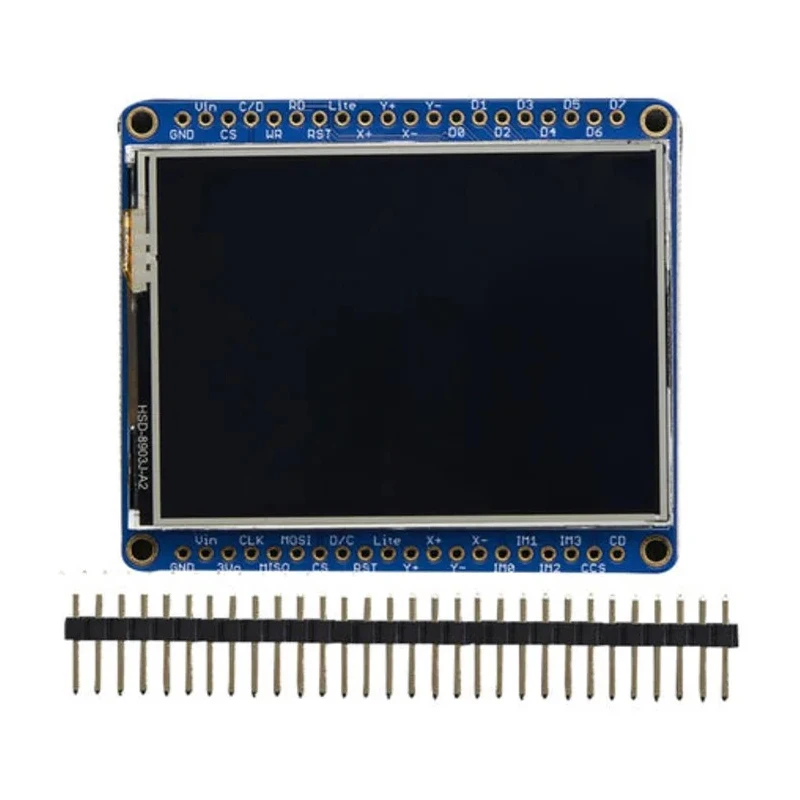

ADAFRUIT INDUSTRIES 2.4 in TFT LCD Resistive Touch Screen Display Module with ILI9341 Controller and MicroSD Socket 2478

Name: ADAFRUIT INDUSTRIES 2.4 in TFT LCD Resistive Touch Screen Display Module with ILI9341 Controller and MicroSD Socket 2478
Brand: Adafruit Industries
SKU: 195608
Price: 38.02 USD
Availability: InStock



Category Display Module Brand Adafruit Industries Condition New

Specifications

Country of Origin	United States
Display	touchscreen
Brand	ADAFRUIT INDUSTRIES
Model	2478
Gross Weight	30.5 g
Display Technology	Resistive Touch Screen
Interface Type	SPI, 8-Bit Parallel
For Use With	MicroSD Socket - ILI9341
Standards/Approvals	RoHS
Kit Classification	Display Module
Featured Device	ILI9341
Kit Name	TFT LCD Display
Diagonal Display Size	2.4in
Screen Dimensions	43 x 60 x 4 mm (1.7" x 2.4" x 0.16")
PCB Dimensions	53 x 60 x 4 mm (2.1" x 2.4" x 0.16")

Key Features

The display has a 2.4 inch diagonal size with 240 x 320 pixels resolution and individual RGB pixel control.
It uses a resistive touch screen capable of detecting finger presses anywhere on the panel.
Equipped with 4 bright white LEDs for backlighting, which can be PWM dimmed.
The module supports both 8-bit parallel and SPI interfaces for data communications.
Onboard RAM buffering reduces microcontroller workload during operation.
The compact PCB measures 53 x 60 x 4 mm, suitable for embedded development projects.
It includes a built-in microSD card socket accessible via SPI mode for external storage.
The product meets RoHS standards and is manufactured in the United States.

Product Description

ADAFRUIT INDUSTRIES 2478 is a 2.4 inch TFT LCD resistive touch screen display module featuring the widely used ILI9341 controller. Designed for embedded system developers, it provides a vibrant 240 x 320 pixel display with individual RGB control for high-quality color rendering.

The display includes a 4-wire resistive touchscreen supporting precise finger press detection. It is illuminated by 4 bright white LEDs with transistor-connected PWM dimming for backlight control, ensuring optimal visibility under varying lighting conditions.

The module offers two operation modes: an 8-bit parallel interface requiring 8 data lines and 4 - 5 control lines, and an SPI interface using only 5 pins for a simplified connection at the cost of slower data throughput.

Additionally, a microSD card socket accessible in SPI mode expands data storage capabilities for multimedia or data logging applications. The onboard RAM buffering feature offloads display driving from the host microcontroller, improving overall system performance and responsiveness.

Compact dimensions of 53 x 60 x 4 mm (2.1" x 2.4" x 0.16") make this display module well suited for use in electronic development, robotics, STEM education, and IoT device projects that require visual interfaces with touch input capability.

The display size is 2.4 inches diagonal with 240 x 320 pixel resolution. Resistive touch screen technology allows precise finger press detection. Supports 8-bit parallel and SPI interfaces for flexible connectivity. Incorporates a microSD socket enabling external data storage.

Backlight consists of four white LEDs with PWM dimming ability. RoHS compliant and made in the United States. Compact PCB dimensions of 53 x 60 x 4 mm.

This robust display module is ideal for integration into industrial, laboratory, educational, and prototyping environments requiring a responsive touchscreen interface combined with vivid color display quality.
