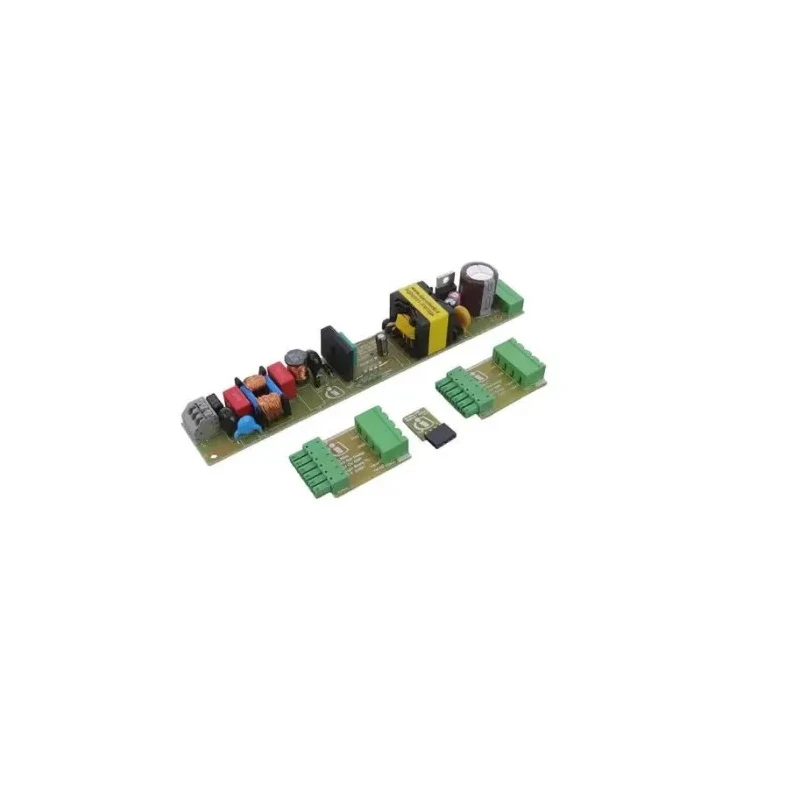

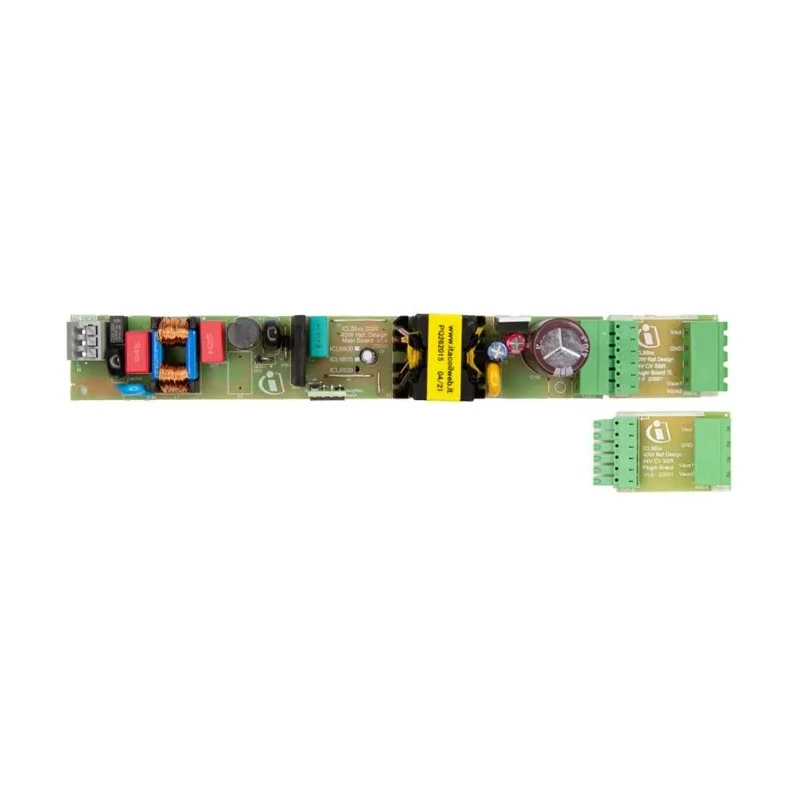

Infineon Development Board Flyback Converter for IPD80R900P7, ICL8800 LED Lighting Applications REFICL8800LED43WTOBO1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | REFICL8800LED43WTOBO1 |
| For Use With | LED Lighting Applications |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | IPD80R900P7, ICL8800 |
| Kit Name | Development Board |
Key Features
- The board is a 43 W high power factor flyback converter based on ICL8800 technology.
- It features a secondary-side regulated constant voltage (CV) system intended for use with constant current (CC) converters.
- Two regulation circuits are provided as plug-and-play solutions for ease of integration.
- Offers best fit topology for on/off LED drivers with dimming levels down to 5%.
- Combines scalability and multiple features using a two-stage topology.
- Designed for high light quality and cost-effective implementation.
- Provides flexibility and low bill of materials for various LED lighting applications.
Product Description

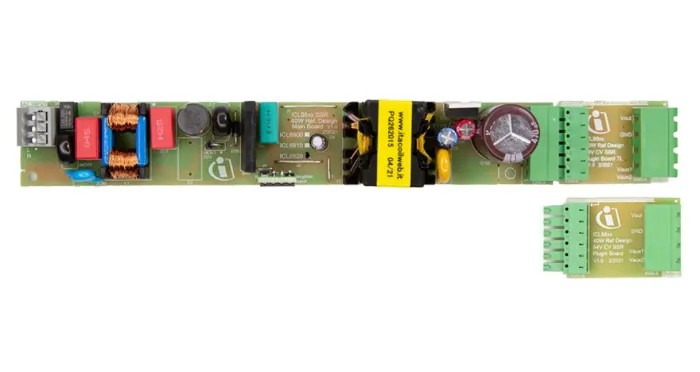

Infineon REFICL8800LED43WTOBO1 is a development board featuring a 43 W power factor correction flyback converter for LED lighting applications. It utilizes the IPD80R900P7 and ICL8800 devices to provide a constant voltage output with secondary-side regulation. This evaluation board is ideal for LED drivers, offering compatibility with constant current converters to ensure optimal lighting performance.
The board incorporates two regulation circuits that serve as plug-and-play solutions, allowing straightforward integration into LED lighting systems. One circuit must be connected to the main board to operate correctly, which ensures reliable and stable voltage control.
The design employs a two-stage topology that balances scalability and features, making it suitable for on/off LED drivers with minimum dimming capabilities down to 5%, which is critical for modern LED lighting designs requiring precise dimming control.
This development board offers a cost-effective and bottom-up design approach, delivering high-quality light output and flexibility to suit diverse application needs. Its low bill of materials further enhances its appeal for commercial and industrial LED lighting projects.
Applications include industrial, commercial, and residential LED lighting where reliable, efficient power conversion and dimming control are necessary. The board also serves well in research, development, and evaluation environments focused on power management and LED driver designs.
The board is a 43 W high power factor flyback converter based on ICL8800 technology. It features a secondary-side regulated constant voltage (CV) system intended for use with constant current (CC) converters. Two regulation circuits are provided as plug-and-play solutions for ease of integration.
Offers best fit topology for on/off LED drivers with dimming levels down to 5%. Combines scalability and multiple features using a two-stage topology. Designed for high light quality and cost-effective implementation. Provides flexibility and low bill of materials for various LED lighting applications.
Explore more Development Boards and Power Management Evaluation Kits at EnvMart to find fitting solutions for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This development board has a power rating of 43 W, designed specifically for LED lighting applications.
The board features the IPD80R900P7 and ICL8800 devices, which are integral to its operation as a flyback converter.
It provides a constant voltage output with secondary-side regulation, suitable for use with constant current converters.
This model supports dimming levels down to 5%, making it suitable for modern LED lighting applications that require precise control.
The country of origin for this development board is India.
The board complies with RoHS standards, ensuring it meets environmental regulations.
It is intended for industrial, commercial, and residential LED lighting applications, as well as for research and evaluation environments focused on power management.
It incorporates two regulation circuits that serve as plug-and-play solutions, allowing for straightforward integration into various LED lighting systems.
The board employs a two-stage topology, balancing scalability and multiple features for effective LED driver applications.
Yes, the board is classified as an Evaluation Board, specifically designed for development purposes.
The flyback converter technology used in this board is based on ICL8800 technology, which is optimized for high power factor and efficient LED lighting performance.
It offers flexibility and a low bill of materials, making it cost-effective for various LED lighting applications.
