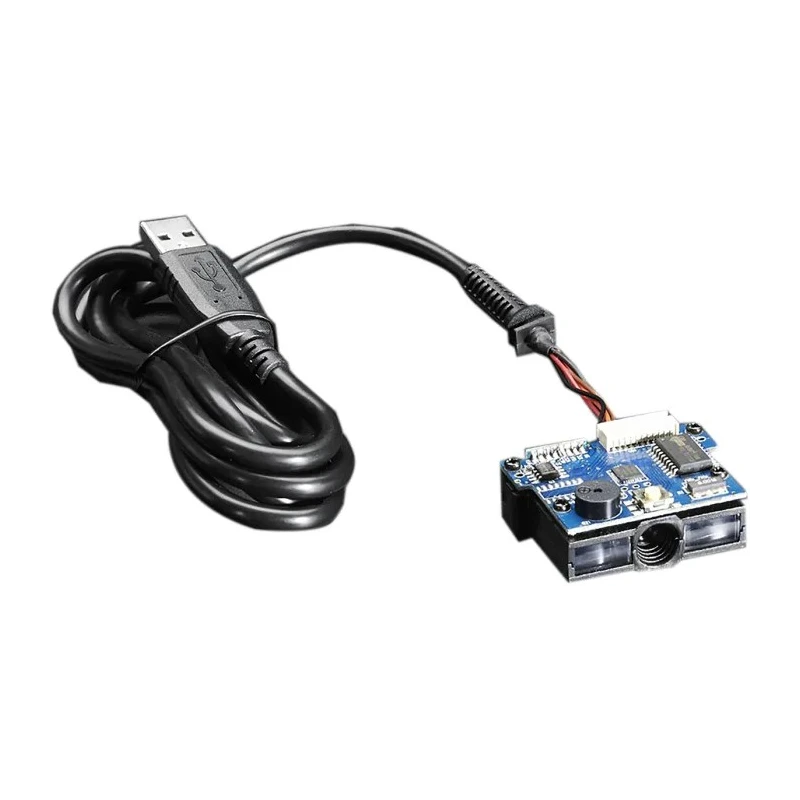

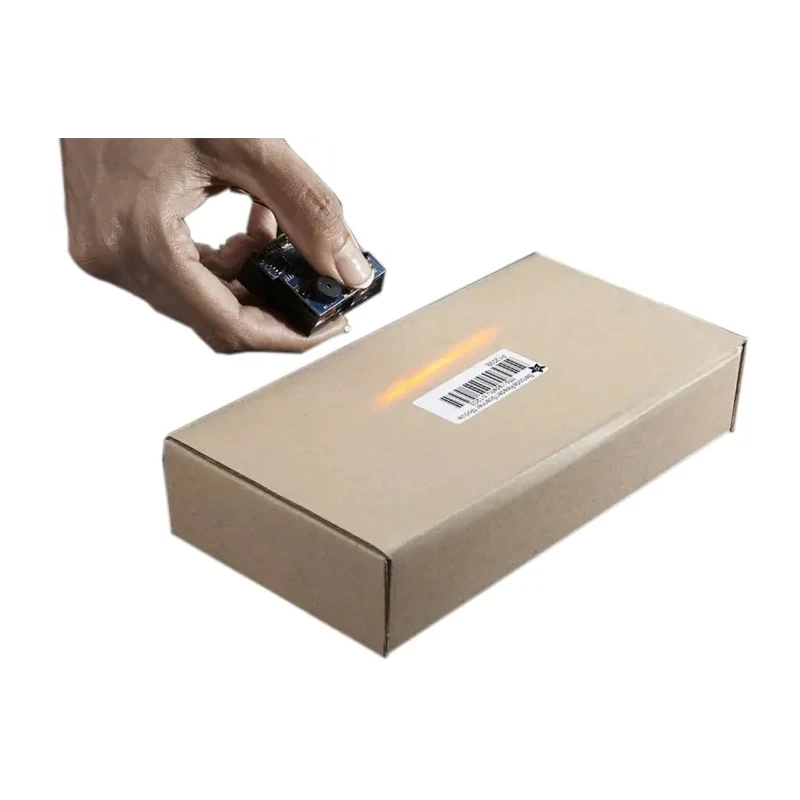

ADAFRUIT INDUSTRIES Barcode Reader/Scanner Module Light Sensor Module USB HID Interface 5 V DC 80 mA 100 Scans/Sec 1203
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 5mil/0.127mm, PCS90% |
| Voltage | DC +5 V ±5% |
| Relative Humidity | 20% to 95%(Non-condensing) |
| Brand | ADAFRUIT INDUSTRIES |
| Interface | USB HID Keyboard |
| Dimensions | 44 mm W x 30 mm D x 19.2 mm H |
| Light Source | Visible Red light 632 nm LED |
| Model | 1203 |
| Cable | Straight 5 ft |
| Operating Temp | 0°C to 50°C (32°F to 122°F) |
| Gross Weight | Approx. 0.56 oz(17 g)(without cable) |
| Connector | Molex 11P Pitch 1.25 |
| Storage Temp | -20 °C to 70°C (-4°F to 158°F) |
| Sensor Technology | Light Sensor |
| Scan Rate | 100 scans/sec ±10% |
| Depth of field | 230 mm @ 20mil/0.5mm, PCS90% |
| For Use With | Barcode Reader/Scanner |
| Standards/Approvals | RoHS |
| Kit Classification | Module |
| Kit Name | Barcode Reader/Scanner Module |
| Mechanical Shock | 2000G, 0.7 ms, 3 axes |
| Ambient Light | 5000 lux Max |
| Reading Indicator | Beeper |
Key Features
- Decodes 1D striped barcodes using a camera capturing 100 photos per second.
- Equipped with visible red light 632 nm LED for accurate scanning.
- Offers a depth of field of 230 mm at 20mil/0.5mm, with 5mil/0.127mm resolution at PCS90%.
- Operates reliably within 0°C to 50°C temperature and up to 5000 lux ambient light.
- Features USB HID keyboard interface with a Molex 11-pin 1.25 mm pitch connector.
- Low power consumption of 80 mA and includes a beeper reading indicator.
- Compact dimensions of 44 mm width, 30 mm depth, and 19.2 mm height.
- Lightweight at approximately 17 grams (without cable) with 5 ft straight cable included.
Product Description
ADAFRUIT INDUSTRIES 1203 Barcode Reader/Scanner Module is an advanced sensor development tool designed for integration with barcode reading projects. Featuring a camera-based scanner instead of conventional mechanical mirrors, it captures 100 photographs each second for rapid and accurate 1D striped barcode decoding. The module operates on a DC 5 V ±5% supply and consumes only 80 mA, suitable for embedded system applications including Raspberry Pi and BeagleBone.
This module includes a visible red light LED at 632 nm wavelength for precise illumination over a depth of field of 230 mm at 20mil/0.5mm resolution with PCS90% reliability. It achieves high resolution scanning of 5mil/0.127mm at PCS90% ensuring accuracy in barcode recognition. The device functions effectively in ambient light conditions up to 5000 lux and temperature ranges from 0°C to 50°C, with storage conditions between -20°C and 70°C.
The 1203 model implements a USB HID keyboard interface for seamless connection to computers and single-board computers via a straight 5 ft cable and Molex 11P pitch 1.25 mm connector. The reading indicator uses a beeper for user feedback during scanning operations. Mechanical durability is enhanced by a 2000G shock rating over 0.7 ms across three axes, making it suitable for industrial and laboratory environments.
This compact, lightweight module measures 44 mm in width, 30 mm in depth, and 19.2 mm in height, weighing approximately 17 grams without cable, enabling easy integration into portable or stationary equipment. The RoHS-compliant sensor development tool is ideal for electronics projects, industrial barcode scanning, automatic identification, and retail or logistics automation.
Applications include embedded development, laboratory instrumentation, industrial automation, and retail barcode systems. It provides a reliable and durable scanning solution with quick response and minimal alignment concerns due to its camera-based design.
Set contains 1 Pc ADAFRUIT INDUSTRIES 1203 Barcode Reader/Scanner Module with USB cable included for immediate deployment. Explore comprehensive Sensor Development Tools and barcode scanning solutions in EnvMart’s Electronics & Electricals category.
Decodes 1D striped barcodes rapidly by camera capture. Visible red LED light for illumination. High resolution and depth of field for precise scanning. USB HID keyboard interface for easy connectivity. Durable shock resistance and wide operating temperature range.
Discover more sensor modules and barcode readers at EnvMart for industrial and educational use.
