ADAFRUIT INDUSTRIES 2.8 Inch TFT LCD Resistive Touch Screen Display Module with MicroSD Socket ILI9341 1770

Free Delivery in India | Lowest Global Shipping Charges

ADAFRUIT INDUSTRIES 2.8 Inch TFT LCD Resistive Touch Screen Display Module with MicroSD Socket ILI9341 1770

Name: ADAFRUIT INDUSTRIES 2.8 Inch TFT LCD Resistive Touch Screen Display Module with MicroSD Socket ILI9341 1770
Brand: Adafruit Industries
SKU: 195606
Price: 38.55 USD
Availability: InStock



Category Display Module Brand Adafruit Industries Condition New

Specifications

Country of Origin	United States
Display	touchscreen
Brand	ADAFRUIT INDUSTRIES
Model	1770
Gross Weight	40 g
Display Technology	Resistive Touch Screen
Standards/Approvals	RoHS
Kit Classification	Display Module
Featured Device	MicroSD Socket-ILI9341
Kit Name	TFT LCD Display
Diagonal Display Size	2.8in
- Thickness	7.9 mm / 0.3"
Display Visions EA uniTFTs028-ATC TFT LCD Display Touch Screen, 2.8 inBrand	Display Visions

Key Features

The display features a 2.8 inch diagonal size with RGB pixel control and 240 x 320 pixel resolution.

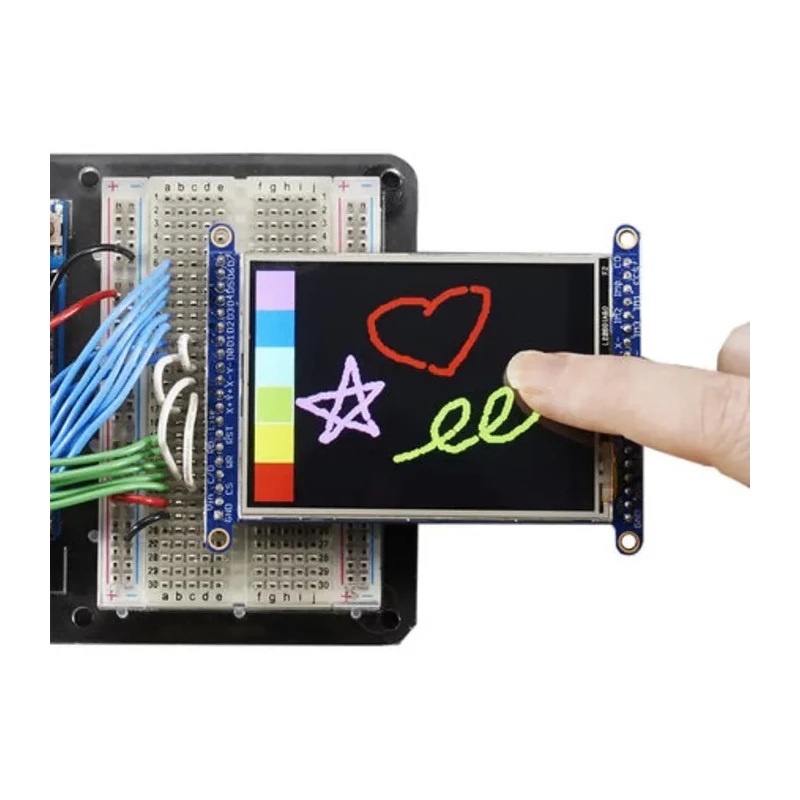

Utilizes a resistive touchscreen capable of detecting finger presses anywhere on the screen.
Compatible with 3 V to 5 V systems with high-speed level shifters for microcontroller integration.
Equipped with four white LED backlights dimmable via PWM.
Includes an onboard microSD card socket accessible in SPI mode.
Compact thickness of 7.9 mm and lightweight design suitable for embedded applications.

Product Description

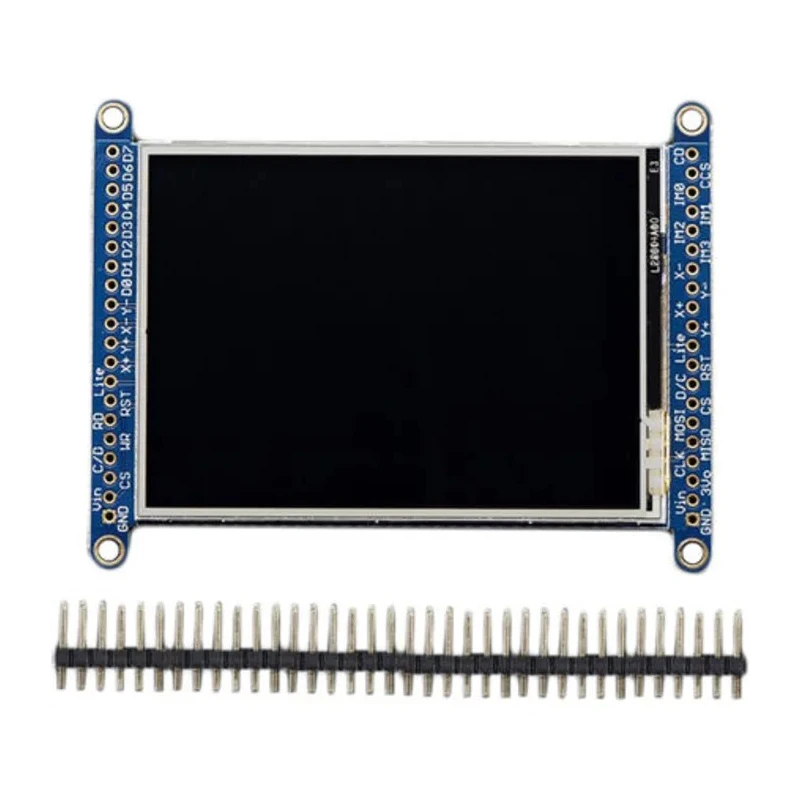

ADAFRUIT INDUSTRIES 1770 is a 2.8 inch TFT LCD display module featuring a resistive touch screen and integrated MicroSD card socket based on the ILI9341 controller.

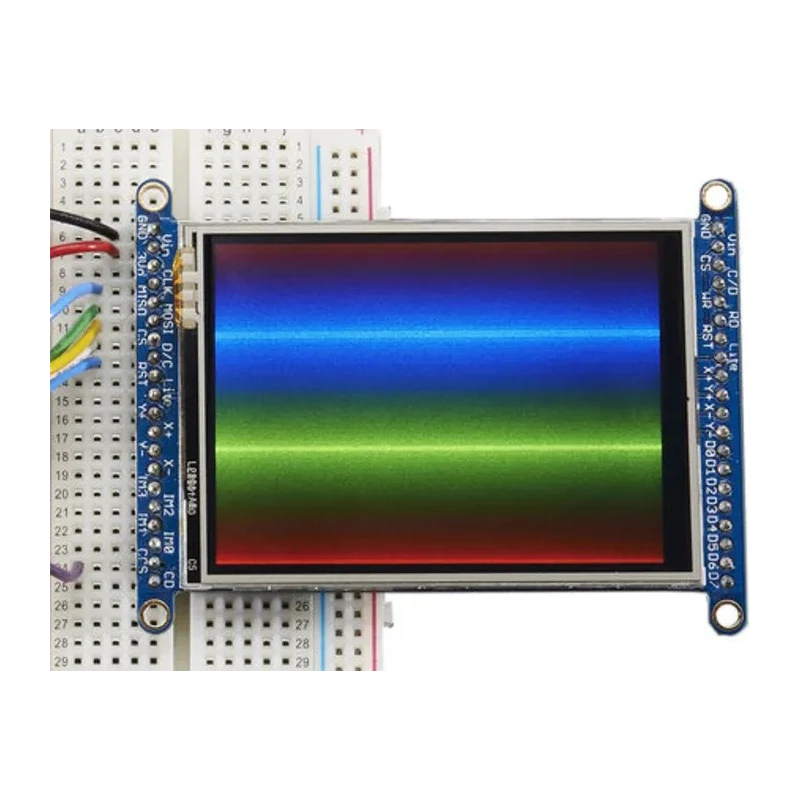

This display module offers a vibrant color output with 240 x 320 resolution and individual RGB pixel control, enhanced by a 4 white LED backlight system that supports brightness dimming through PWM control.

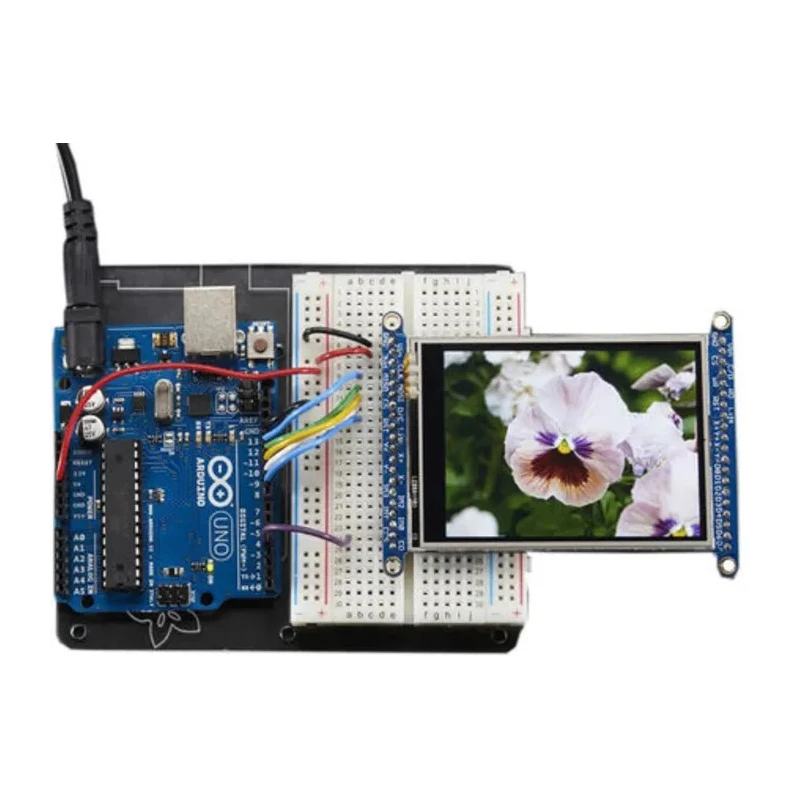

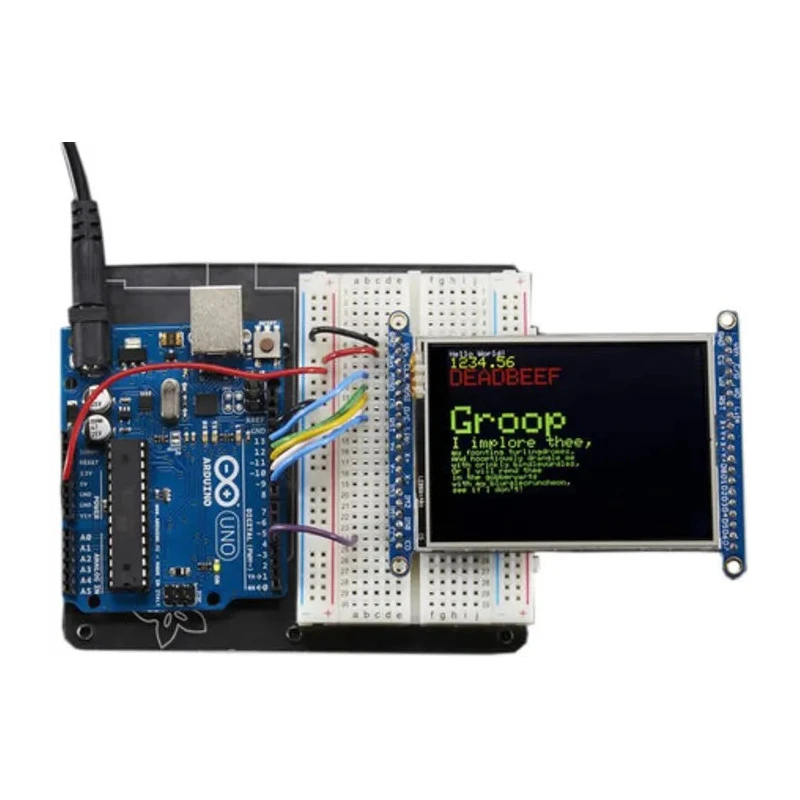

The resistive touchscreen allows precise finger press detection, making it ideal for user interfaces in embedded systems, prototyping, and development tools compatible with Raspberry Pi, Arduino, and other microcontrollers.

The module can be operated in two modes: an 8-bit parallel interface needing multiple digital lines for faster data transfer, or a slower SPI interface requiring fewer pins, along with dedicated pins for the touchscreen functionality.

Power requirements range from 3 V to 5 V, supported by onboard high-speed level shifting, making it adaptable across various microcontrollers. The inclusion of a microSD card socket enables extended data storage capabilities for multimedia and logging applications.

The module has a slim form factor with a thickness of 7.9 mm and weighs approximately 40 grams, facilitating integration into compact designs for industrial, educational, and hobbyist projects.

The display comes with RoHS compliance, adhering to safety and environmental standards. It is manufactured in the United States, ensuring high quality and reliability.

This ADAFRUIT TFT LCD Display Module is suitable for electronics development, embedded system interfacing, educational STEM projects, and industrial control panel prototypes. Explore EnvMart’s Electronics Components section for compatible display accessories and development tools.
