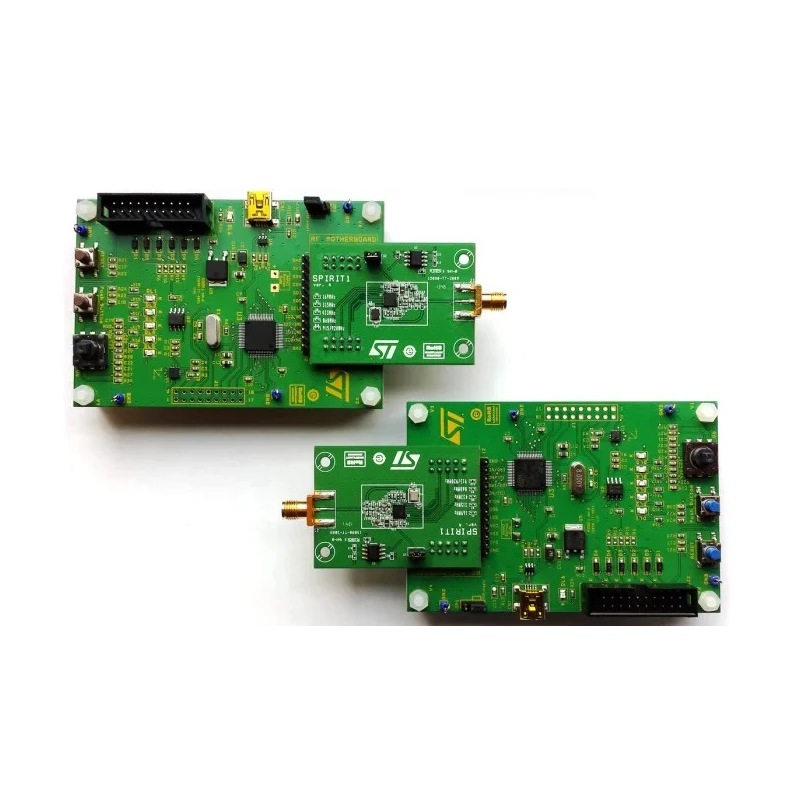

STMicroelectronics SPIRIT1, STM32L RF Transceiver Development Kit 868 MHz STEVAL-IKR002V4

STMicroelectronics STEVAL-IKR002V4 RF Transceiver Development Kit 868 MHz features a low-power, sub-1GHz transceiver based on the SPIRIT1 RF chip paired with STM32L 32-bit Cortex-M3 microcontrollers. This development platform is optimal for engineers and developers designing wireless communication applications operating in the 868 MHz ISM frequency band. The kit is engineered for performance and flexibility with two RF daughterboards and two motherboards included for comprehensive prototyping.

The kit’s motherboards feature STM32L microcontrollers which provide powerful control and programming capabilities. Connectivity options include a USB connector for PC GUI interaction and firmware updates, along with a JTAG debug connector for development efficiency. User interfaces comprise 5 LEDs, a 5-position thumb joystick, a reset pushbutton, and a user pushbutton to support various control schemes.

Integrated sensors such as the STLM75 I²C temperature sensor and LIS3DH 3-axis SPI accelerometer enable sensor data processing and environmental interaction within wireless applications. The RF daughterboards house the SPIRIT1 RF transceiver chip and include antenna matching components and SMA antenna socket to ensure optimal signal integrity and ease of antenna integration.

This kit is engineered to serve industrial, laboratory, manufacturing, and commercial use cases demanding robust RF wireless connectivity solutions. It supports rapid development of embedded wireless devices for IoT, remote sensing, telemetry, and communication system integration.

The kit contains 2 RF motherboards and 2 RF daughterboards for a complete development setup. Supports 868 MHz RF operating frequency tailored for global ISM band usage. Designed around SPIRIT1 RF transceiver and STM32L Cortex-M3 microcontroller cores.

Equipped with comprehensive onboard user interface controls including LEDs and joysticks. Features USB and JTAG connectivity for firmware development and debugging. Includes temperature and accelerometer sensors for integrated system development.

Facilitates antenna integration with SMA socket and matching components. Ideal for wireless communication prototyping in industrial and commercial applications. Supports firmware upgradeability for ongoing enhancements and customization.
