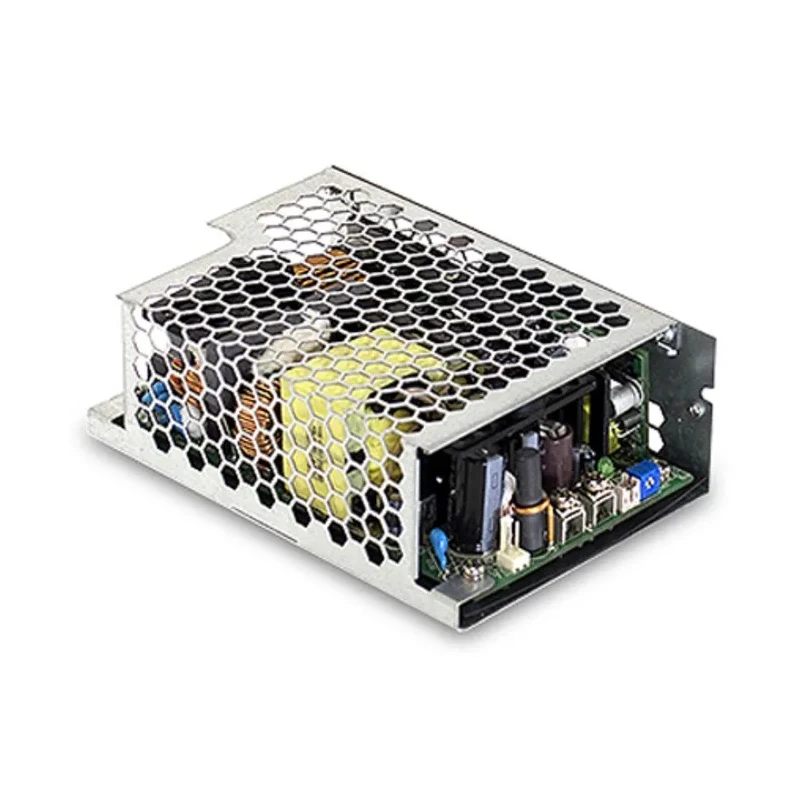

MEAN WELL Medical Grade Switching Power Supply 12V DC 249.6W High Efficiency RPS-400-12-C

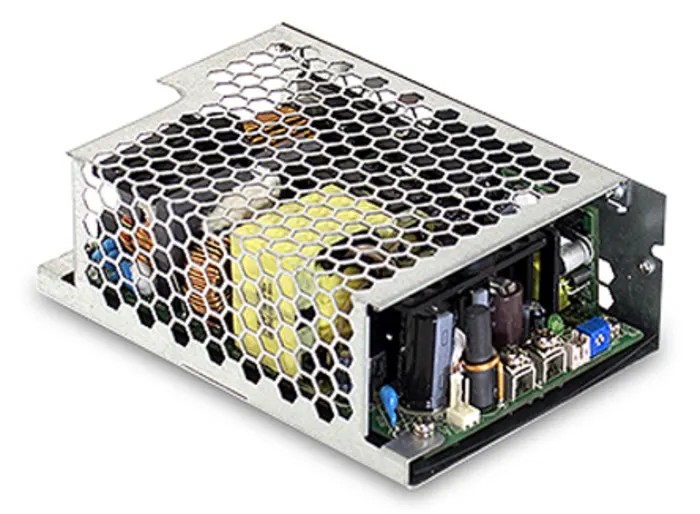

MEAN WELL RPS-400-12-C model switching power supply provides a stable 12V DC voltage output with a maximum power capacity of 249.6W. It is specifically engineered for medical applications, complying with international medical safety regulations, including ANSI/AAMI ES60601-1 and IEC60601-1 standards. The power supply features chassis mounting and a compact design measuring 130mm (length) x 43mm (width) x 43mm (depth), weighing approximately 510g, suitable for space-constrained industrial and medical installations.

This unit offers a universal AC input range with a minimum input voltage of 80V AC and supports high DC input up to 370V. Its built-in active Power Factor Correction (PFC) enhances electrical efficiency and reduces energy losses. The device integrates multiple safety protections, such as short circuit, overload, over voltage, and over temperature safeguard, assuring system reliability.

The RPS-400-12-C is qualified for BF (Body Floating) rated patient contact applications with low leakage current, making it suitable for sensitive medical equipment like hemodialysis machines, medical monitors, and electric beds. It includes a standby 5V output with integrated fan supply output for cooling and remote sense capability for voltage regulation.

Its efficiency reaches up to 91.5%, contributing to energy saving during continuous operation. The operating temperature range from -30°C to 70°C allows for versatility in various environmental conditions. The power supply has passed multiple international approvals including CCC, CSA, EAC, TUV, UL, and BSMI certifications, ensuring global compliance and safety.

Supports universal AC input with full range operation. Built-in PFC enhances power factor and energy efficiency. Medical safety rating with 2 x MOPP isolation for patient contact. Compact chassis mount design with lightweight form factor.

Comprehensive protection features for stable and safe operation. High efficiency of 91.5% for reduced power loss. Suitable for use in medical devices and patient care equipment. Wide operating temperature range from -30°C to 70°C.

Integral fan supply output for effective cooling management. Compliance with multiple international safety certifications.

This switching power supply is ideal for industrial, medical, and laboratory applications requiring reliable DC power with stringent safety standards. For further selection and related products, browse MEAN WELL Switching Power Supplies at EnvMart.
