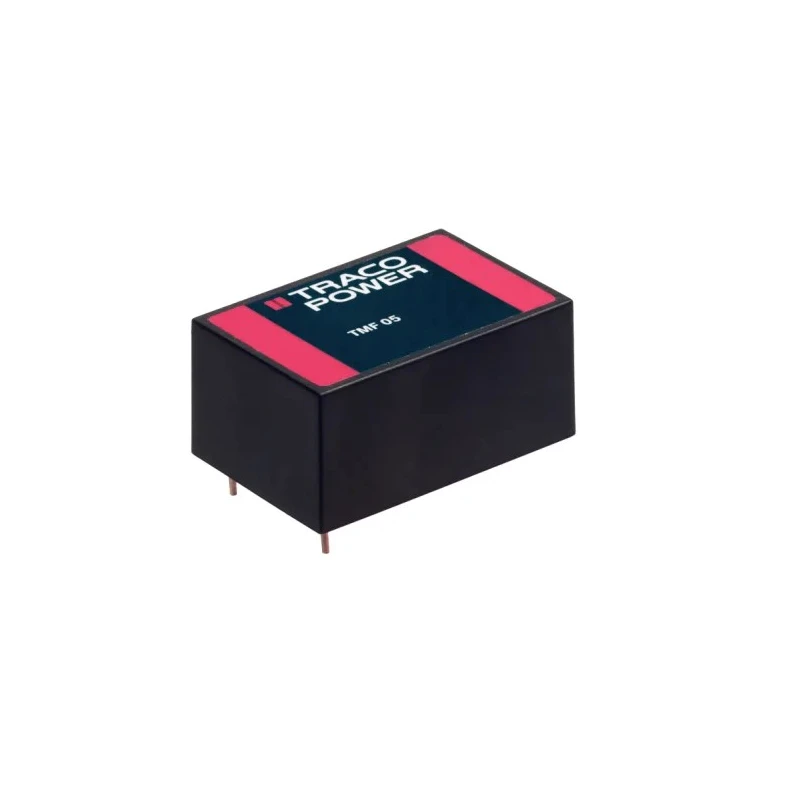

TRACOPOWER TMF 05124 Switching Power Supply 24V 5W PCB Mount 208mA Output, Medical Grade TMF 05124
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Power | 5W |
| Efficiency | 82% |
| Length | 41.2mm |
| Model | TMF 05124 |
| Depth | 19.1mm |
| Gross Weight | 30g |
| Width | 27.2mm |
| Mount Type | PCB |
| Series | TMF |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V |
| Maximum Output Voltage | 24V |
| SMPS Output Current | 208mA |
| Minimum Input Voltage | 90V ac |
| Standards/ApprovalsANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1 | 14, IEC/EN/ES 60601-1, ISO 14971, RoHS |
Key Features
- Compact PCB mount design with plastic casing for easy integration.
- Wide operating temperature range from -25°C to 70°C.
- Compliant with medical safety standards including IEC/EN/ES 60601-1 and ISO 14971.
- High efficiency of 82% ensuring energy savings.
- Includes short circuit, overload, and overvoltage protection.
- Supports input voltage range of 90V ac to 264V ac for versatile use.
- Low leakage current and Class II protection for enhanced safety.
- Fully encapsulated module providing EMC resilience.
Product Description
TRACOPOWER TMF 05124 is a switching power supply module designed for high reliability and safety in medical and industrial environments. This fully encapsulated SMPS offers a maximum output voltage of 24V and power of 5W, with a single output channel delivering 208mA current. Its compact PCB mount form factor with plastic casing facilitates easy integration in electronic devices.
The TMF series complies with critical standards such as IEC/EN/ES 60601-1, ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 No.60601-1:14, and ISO 14971 risk management, reflecting suitability for medical equipment applications. Additional features include low leakage current, Class II protection, and robust protections against short circuit, overload, and overvoltage conditions.
This power supply operates efficiently across a wide input voltage range from 90V ac up to 264V ac, with an efficiency rating of 82%. It maintains stable operation over a temperature range of -25°C to 70°C, suitable for both stationary and portable medical devices or other industrial electronics requiring reliable power conversion.
Compact fully encapsulated design ensures compactness and electromagnetic compatibility. Class II insulation and low leakage current enhance user safety in sensitive environments. Wide input voltage range supports global electrical standards and reduces design complexity.
Multiple built-in protections increase device longevity and user safety. Meets stringent medical safety and quality certifications for regulated applications. Small footprint: length 41.2mm, width 27.2mm, depth 19.1mm; weight approximately 30 grams.
The power supply is manufactured in Taiwan, Province Of China, and adheres to RoHS directives restricting hazardous substances. Ideal for integration in medical instrumentation, laboratory equipment, industrial controllers, and other applications demanding high reliability power conversion.
Discover more power supply solutions and industrial electronics in EnvMart’s comprehensive catalogue.
Explore more products in our Switching Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a maximum output voltage of 24V and a maximum output current of 208mA.
The efficiency rating of the TMF 05124 is 82%, ensuring effective energy use.
It operates efficiently within a temperature range of -25°C to 70°C.
This power supply supports an input voltage range from 90V AC to 264V AC.
The dimensions of this model are 41.2mm in length, 27.2mm in width, and 19.1mm in depth.
It complies with IEC/EN/ES 60601-1, ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 No.60601-1:14, and ISO 14971.
This model is designed for PCB mounting, making it suitable for integration into electronic devices.
It includes protections against short circuit, overload, and overvoltage conditions.
The weight of this power supply is approximately 30 grams.
This power supply is manufactured in Taiwan, Province Of China.
Yes, this model features Class II protection, enhancing safety in sensitive environments.
