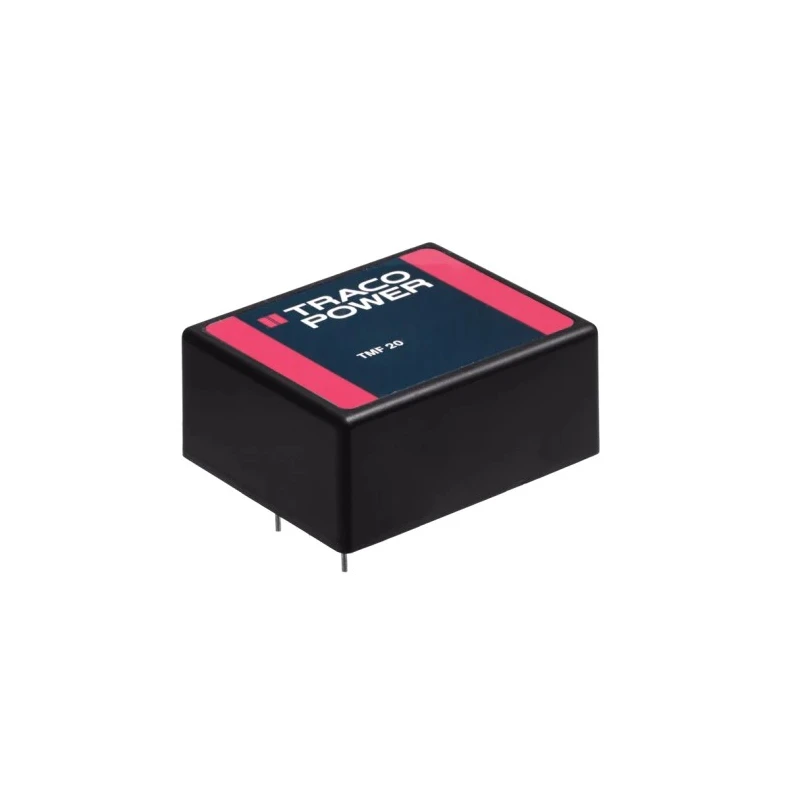

TRACOPOWER TMF 20115 Switching Power Supply PCB Mount 15 V 20 W 1.33 A TMF 20115

TRACOPOWER TMF 20115 switching power supply is a PCB-mounted module designed specifically with medical equipment safety, reliability, and quality in mind. Delivering a stable 15 V output voltage at 20 W with an output current of 1.33 A, this power supply supports a wide input voltage range from 90 V AC to a maximum of 264 V AC. Its fully encapsulated plastic casing offers robust protection and compactness, making it ideal for stationary and transportable medical devices.

The TMF series is characterized by high efficiency of 84%, low leakage current, and Class II protection, enhancing safety standards compliance. The unit operates reliably in extreme temperature conditions, from -25°C to +70°C, and incorporates short circuit, overload, and overvoltage protections for operational security and longevity.

Certified to meet key medical safety standards such as ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1:14, IEC/EN/ES 60601-1, and ISO 14971 risk management, the TMF 20115 is a dependable solution for critical healthcare equipment requiring reliable power without compromise.

This lightweight and compact power supply module, measuring 54.7 mm in length, 44.9 mm in width, and 23.5 mm in depth with a weight of approximately 100 grams, integrates seamlessly onto PCBs, reducing overall system footprint.

Its fully encapsulated design provides excellent electromagnetic compatibility (EMC) for noise-sensitive environments, making it suitable for industrial, laboratory, medical, HVAC, and manufacturing applications.

Compact fully encapsulated design suitable for PCB mounting applications. Wide operating temperature range from -25°C to 70°C ensures reliable performance. High efficiency of 84% minimizes energy loss during operation. Equipped with short circuit, overload, and overvoltage protection for safety.

Complies with medical safety standards including IEC 60601-1 and ISO 14971 risk management. Input voltage range from 90 V AC up to 264 V AC for flexible use. Low leakage current and Class II protection make it suitable for medical equipment.

Lightweight unit at approximately 100 g with compact dimensions (54.7mm x 44.9mm x 23.5mm). Manufactured in Taiwan, Province Of China with high-quality standards. Explore our extensive range of Switching Power Supplies and power management solutions at EnvMart for advanced industrial and medical power needs.
