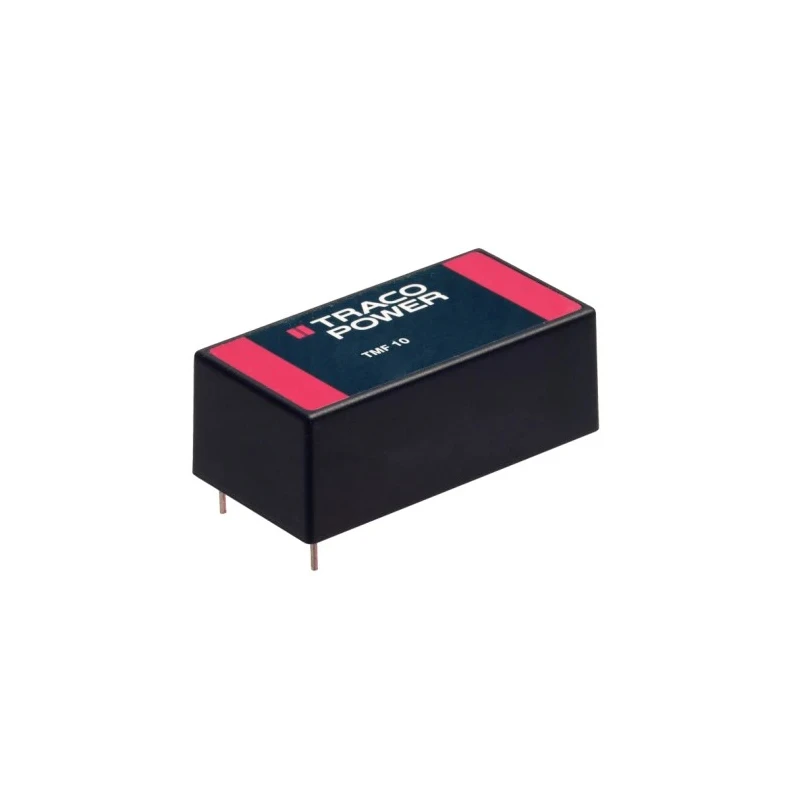

TRACOPOWER TMF 10124 Switching Power Supply 24V 10W PCB Mount Medical Grade TMF Series TMF 10124

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER TMF 10124 Switching Power Supply 24V 10W PCB Mount Medical Grade TMF Series TMF 10124

Name: TRACOPOWER TMF 10124 Switching Power Supply 24V 10W PCB Mount Medical Grade TMF Series TMF 10124
Brand: TRACOPOWER
SKU: 195429
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	10W
Efficiency	84%
Length	52.2mm
Model	TMF 10124
Depth	19mm
Gross Weight	47g
Width	26.8mm
Mount Type	PCB
Series	TMF
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	264V
Maximum Output Voltage	24V
SMPS Output Current	417mA
Minimum Input Voltage	90V ac
Standards/ApprovalsANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1	14, IEC/EN/ES 60601-1, ISO 14971, RoHS

Key Features

Fully encapsulated power supply ensuring safety and reliability.
Designed for medical equipment with compliance to IEC 60601-1 standards.
Wide operating temperature range from -25°C to 70°C.
Low leakage current with built-in short circuit, overload, and over voltage protection.
High efficiency of 84% minimizing energy loss during operation.
Supports input voltage range from 90V AC to a maximum of 264V AC.
Output current rating of 417mA suitable for stationary and transportable devices.
Plastic casing provides Class II protection with 2 x MOPP isolation.

Product Description

TRACOPOWER TMF 10124 Switching Power Supply is a high-quality AC/DC power supply designed primarily for medical equipment applications. It delivers a stable 24V output voltage at a power rating of 10 watts and is engineered for excellent reliability and safety. The unit features a fully encapsulated plastic casing for PCB mounting, offering compact dimensions of 52.2mm in length, 26.8mm width, and 19mm depth, making it ideal for space-constrained industrial and medical device installations.

With compliance to stringent medical safety standards including IEC 60601-1 and related certifications such as ANSI/AAMI ES 60601-1 and CSA CAN/CSA-C22.2, this power supply ensures risk management adherence per ISO 14971 guidelines. The wide operating temperature range from -25°C to 70°C suits both stationary and transportable medical devices, while the high efficiency rating of 84% optimizes power usage.

The supply supports a broad input voltage range from 90V AC to 264V AC, enabling versatile deployment globally. It offers a single output with 417mA current capacity, equipped with protections against short circuits, overloads, and over voltage to enhance operational safety. Its low leakage current and plastic Class II insulation with dual Means of Patient Protection (MOPP) make it compliant with rigorous medical safety requirements.

Fully encapsulated power supply module suitable for medical devices. Compliant with IEC 60601-1 and international medical safety standards. Compact and lightweight design for PCB mounting. Wide input voltage range of 90-264V AC for global usage.

High efficiency at 84% reduces energy consumption. Operating temperature range from -25°C to 70°C allows versatile application. Built-in short circuit, overload, and overvoltage protection for safety. Low leakage current with Class II plastic casing and 2 x MOPP protection.

Ideal for stationary and transportable medical equipment.

This switching power supply is suitable for industrial, medical, laboratory, and electronics manufacturing environments requiring a reliable low power 24V DC source. It is part of the TMF series by TRACOPOWER, known for quality and safety in power supply solutions.

Explore more power supply solutions and certified industrial electronics components at EnvMart to meet diverse operational needs.

Explore more products in our Switching Power Supplies category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has compact dimensions of 52.2mm in length, 26.8mm in width, and 19mm in depth.

The TMF 10124 has an efficiency rating of 84%, which minimizes energy loss during operation.

It complies with IEC 60601-1 and related certifications such as ANSI/AAMI ES 60601-1 and CSA CAN/CSA-C22.2, ensuring adherence to medical safety requirements.

The operating temperature range is from -25°C to 70°C, making it suitable for various applications including stationary and transportable medical devices.

It has an output current rating of 417mA, which is suitable for various medical and industrial applications.

This power supply is designed for PCB mounting, making it ideal for compact installations.

It includes built-in protections against short circuits, overloads, and overvoltage to enhance operational safety.

The gross weight of this model is 47g, contributing to its lightweight design for easy integration.

It features a fully encapsulated plastic casing that provides Class II protection with dual Means of Patient Protection (MOPP).

This switching power supply is suitable for use in medical equipment, laboratory settings, and industrial electronics requiring a reliable 24V DC source.
