Legrand DIN Rail Transformer 160 VA, 230 to 400 V ac Primary, 230 V ac Secondary, Screw Mount, 113x94x112mm, 2.6kg 0 442 64

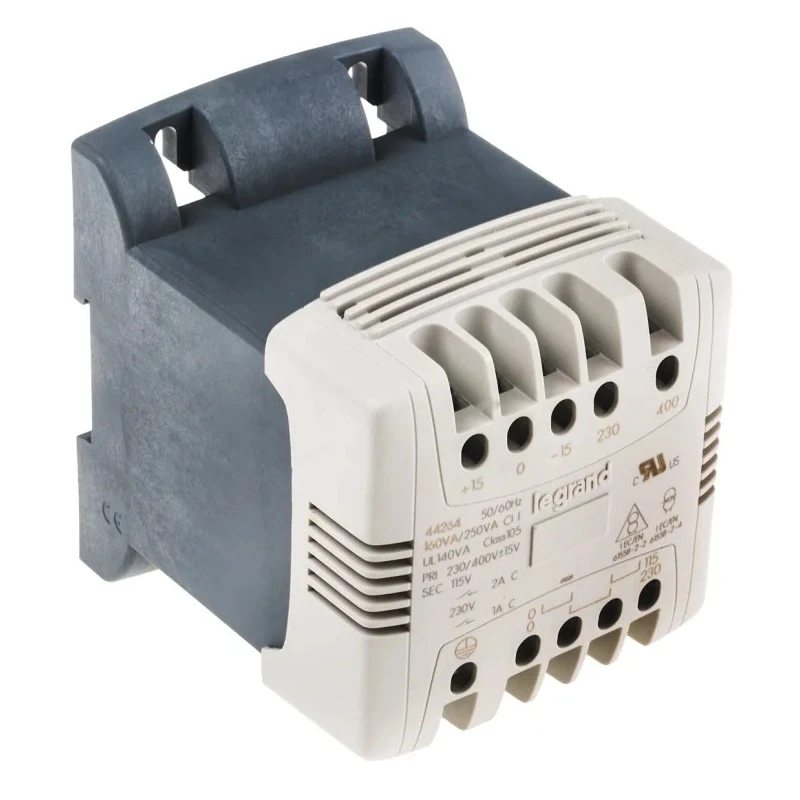

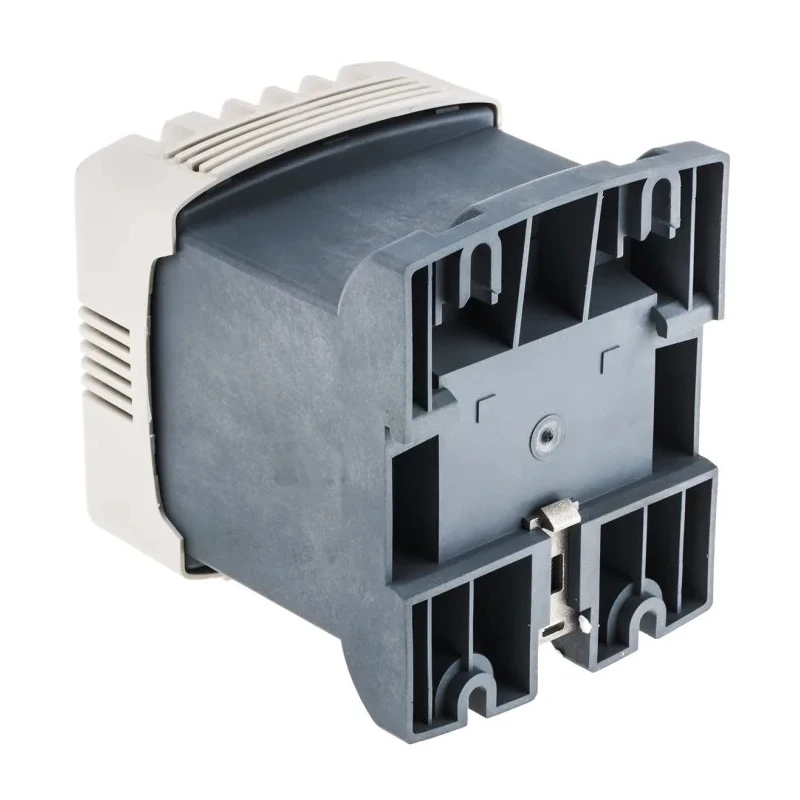

Legrand 0 442 64 DIN Rail Transformer 160 VA is a control transformer designed for industrial, commercial, and electrical distribution use. It operates with a wide primary voltage input from 230 to 400 V ac and provides a stable secondary output of 230 V ac. This device is specifically engineered for DIN rail mounting using screw-type installation, ensuring secure and straightforward integration into electrical panels.

With dimensions measuring 113 mm in length, 94 mm in width, and 112 mm in depth, this transformer offers a compact form factor suitable for space-constrained environments. It supports operating frequencies from 50 Hz to 60 Hz and is rated for continuous operation at ambient temperatures up to 50°C without requiring de-rating, making it reliable in varied environmental conditions.

The transformer includes finger-safe terminals with protection rated IP2x or xxB up to 400 V, enhancing operator safety during installation and maintenance. The new design incorporates an interference filter between windings to minimize electromagnetic disturbances, improving performance in sensitive electrical environments.

Designed for screw and DIN rail mounting. Primary voltage range from 230 to 400 V ac, secondary output of 230 V ac. Dimensions of 113 x 94 x 112 mm provide compact installation. Weight of 2.6 kg for easy handling while maintaining durability.

Operating temperature maximum of 50°C for consistent performance. Compliance with CSA C22-2-N°66, UL506, EN 60204-1, and other relevant standards. Terminals with finger protection rated IP2x or xxB up to 400 V. Includes 0V/earth connection link for grounding.

Interference filter between windings for noise reduction.

Manufactured in France, this transformer meets stringent European quality standards. It is suitable for use across industrial, commercial, and HVAC electrical systems where reliable voltage transformation and safety are paramount.

For detailed technical drawings, certifications, and further information, please refer to Legrand documentation resources. Explore more power supply and transformer products within EnvMart for your specific industrial requirements.
