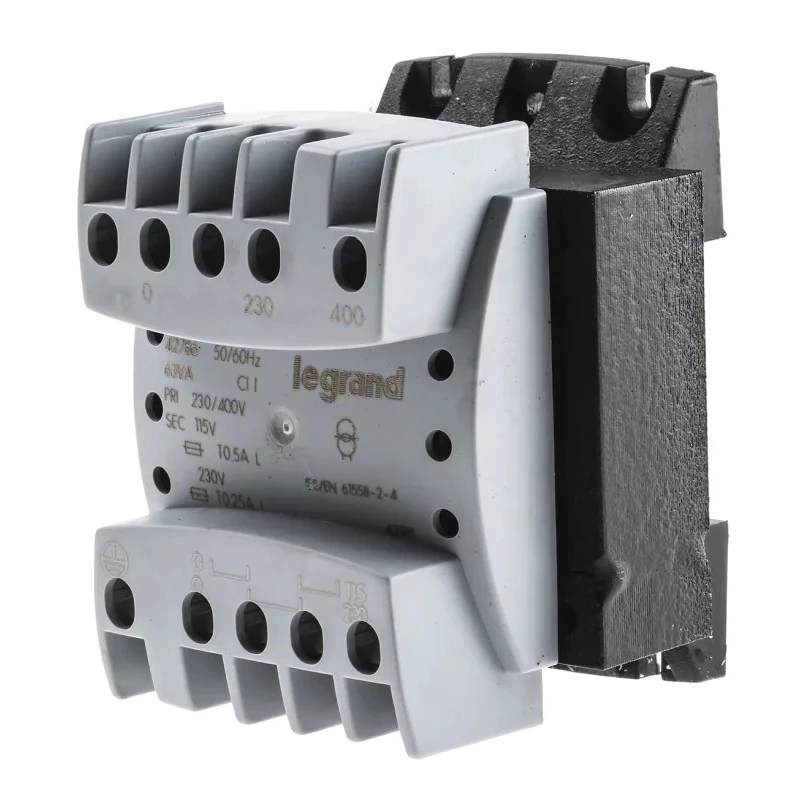

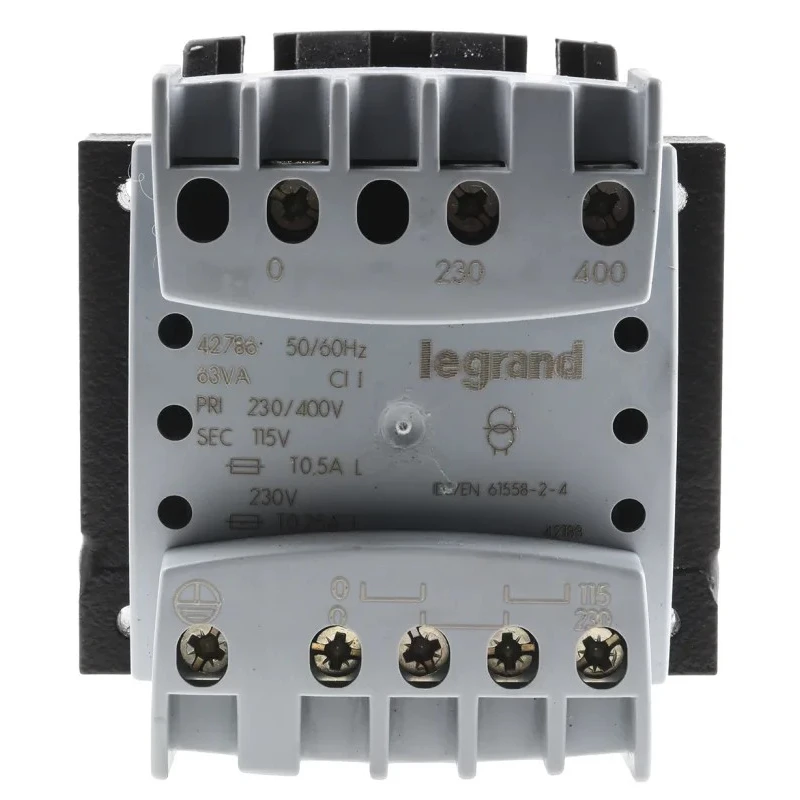

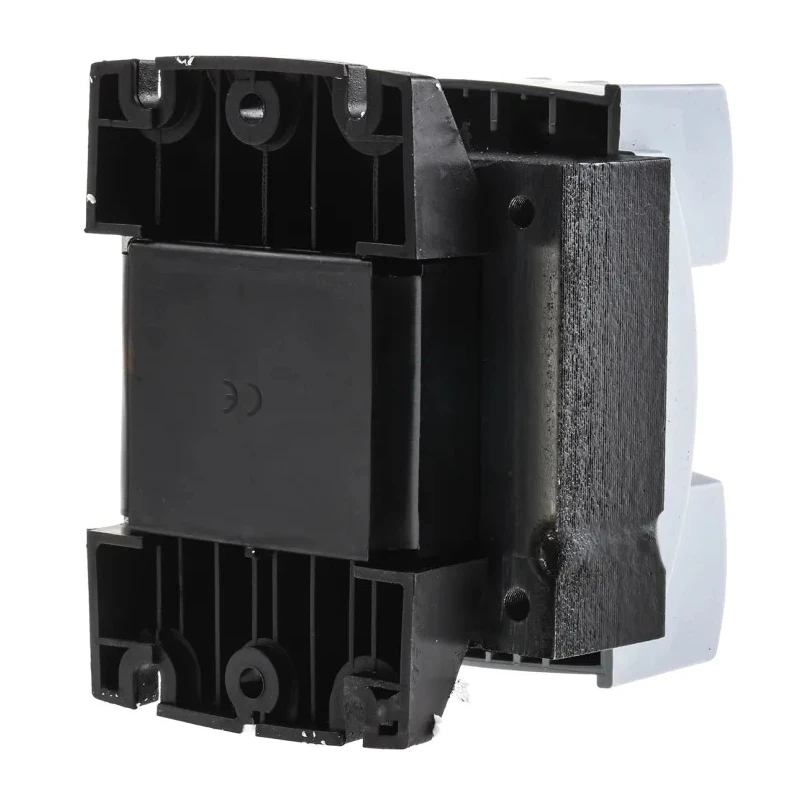

Legrand 63 VA DIN Rail Transformer, 230 to 400 V Primary, 115/230 V Secondary, Screw Mount DIN Rail, EN 60439-1, UL506 UL506

Legrand UL506 63 VA DIN Rail Transformer features a 230 to 400 V primary voltage and a 115/230 V secondary voltage, making it ideal for various industrial, laboratory, control panel, and power distribution applications. This screw mount DIN rail transformer has a compact open design with a fully shrouded terminal block featuring permanent markings on the front of the unit for easy identification and safe connection.

Designed to meet stringent international standards including EN 60439-1, UL506, IEC/EN 61558-2-2, IEC/EN 61558-2-4, IEC/EN 61558-2-6, CSA C22-2 No. 66, EN 60204-1, and EN 61131-2, this transformer ensures compliance with safety and performance requirements vital for industrial control systems and electronic components.

The transformer supports a frequency range of 50 to 60 Hz and a maximum operating temperature of 50°C, making it reliable for use in environments with variable electrical loads and moderate ambient temperatures. Its dimensions of 98 mm length, 84 mm width, and 77 mm depth allow it to fit easily within standard DIN rail assemblies and enclosures. Weighing only 1.3 kg, it is lightweight and easy to handle for installation and maintenance.

The unit provides a single output and dual standard primary windings that support 230 Vac or 400 Vac input voltages, offering flexibility in different electrical systems. Although mounting clips are not included, accessories are available for DIN rail mounting, suitable for transformers up to 160 VA, while higher ratings require direct screw fixing via provided points. The transformer is manufactured in France, ensuring quality production standards.

63 VA power capacity for control panel and power supply applications. Fully shrouded screw terminals with permanent marking for secure installation. Certified to multiple international safety standards including EN 60439-1 and UL506.

Dual primary voltage winding compatible with 230 V or 400 V inputs. Compact form factor with 98x84x77 mm dimensions for easy mounting. Lightweight construction at 1.3 kg ideal for DIN rail installations. Suitable for a broad frequency range from 50 Hz to 60 Hz applications.

Designed for reliable operation up to 50°C ambient temperature. Manufactured in France ensuring high quality and durability.

This Legrand DIN Rail Transformer is perfect for industrial electrical distribution, machinery control panels, manufacturing equipment, and other electronic applications requiring stable step-down voltages. Browse EnvMart for more Legrand transformers and electronic components suitable for your industrial needs.
