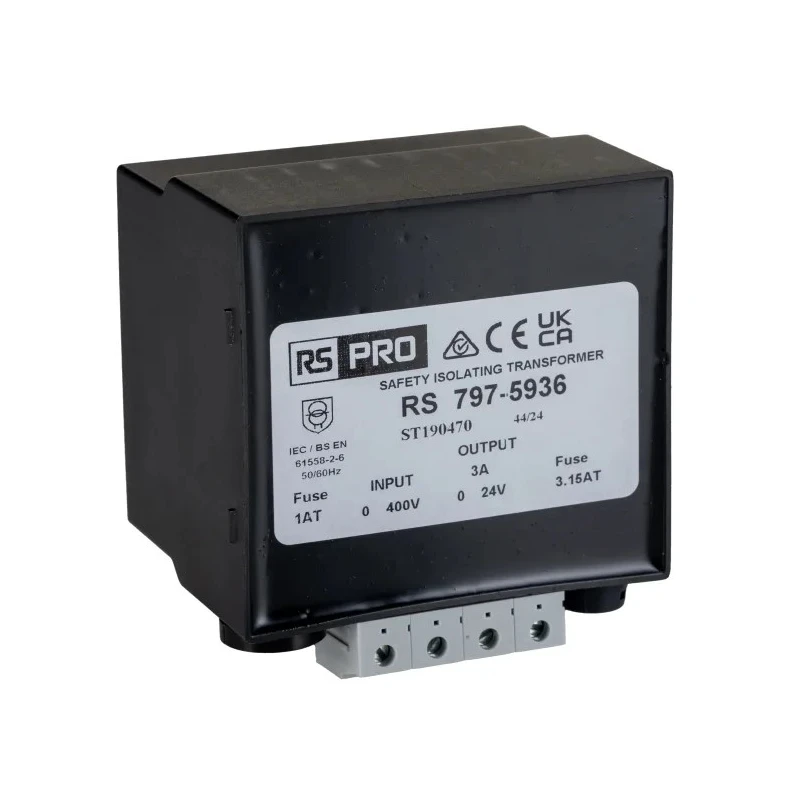

RS PRO 100 VA DIN Rail Isolation Transformer 115 to 400 V AC Primary, 24 V AC and 12 V Secondary, Molded Resin 797-5936

RS PRO 797-5936 DIN Rail Isolation Transformer is a single-phase, moulded safety and isolation transformer designed for DIN rail installation. It features encapsulation in a resin molded case that protects against environmental conditions and provides electrical insulation.

This model supports a wide primary voltage range from 115 to 400 V AC and dual secondary voltages of 24 V AC and 12 V, making it versatile for various electrical applications. The screw-type terminations provide strong and reliable connectivity, suitable for industrial setups.

Its compact size with 89.5 mm length, 82.5 mm width, and 82 mm depth enables easy mounting on a 35 mm DIN rail, while its weight of 1.3 kg makes it manageable for installation and maintenance. The transformer is rated for operation with frequencies between 50 Hz and 60 Hz and rated to withstand a maximum operating temperature of 130°C with insulation class B, ensuring safe function under demanding electrical loads.

Certified under CE and IEC/BS/EN 61558-1 and 61558-2-6 standards, this product adheres to international safety and quality benchmarks. It also complies with RoHS and AS/NZS standards, emphasizing environmental compliance and electrical safety.

With features like fused input and output, temperature class max. ta = 40°C, and an insulation class B rating, this transformer is engineered to provide reliable isolation and power supply in industrial, laboratory, HVAC, manufacturing, and commercial environments.

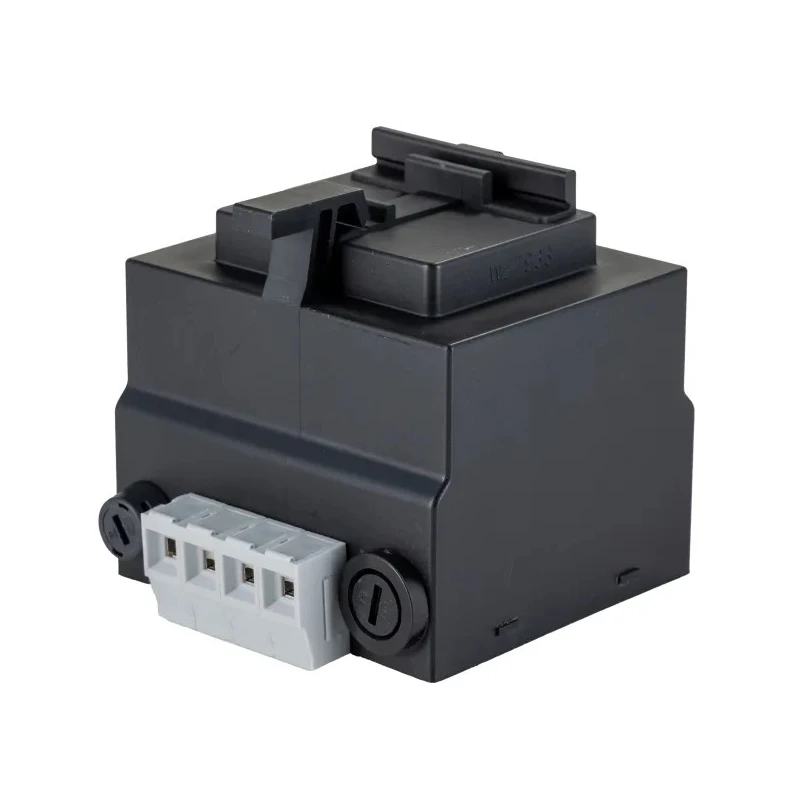

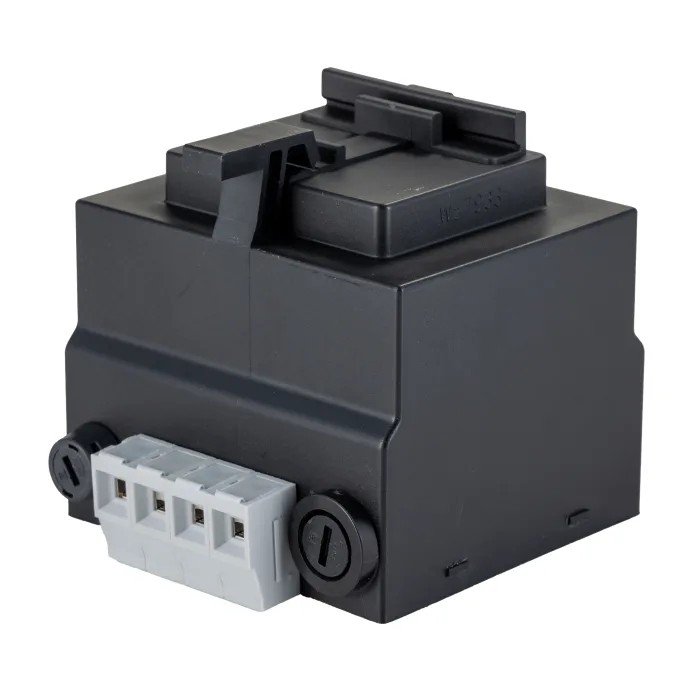

Single-phase molded with screw terminals for secure installation. Mounts on 35 mm DIN rail (TS35) ensuring compatibility with standard industrial frameworks. Fused input and output provide protection against electrical faults.

Fully encapsulated in resin for high safety and durability. Temperature class maximum ambient 40°C with insulation class B withstands high temperature. Nominal power rating 72 VA with short-term rating up to 100 VA. Complies with multiple standards: CE, IEC/BS/EN 61558-1, IEC/BS/EN 61558-2-6, RoHS, AS/NZS 61558.2.6, AS/NZS 61558.1.

This RS PRO transformer is ideal for general electrical isolation tasks, ensuring safety and performance in diverse industrial sector applications. Explore more from the RS PRO range in the Transformers & Transformer Parts category at EnvMart for quality and reliability.
