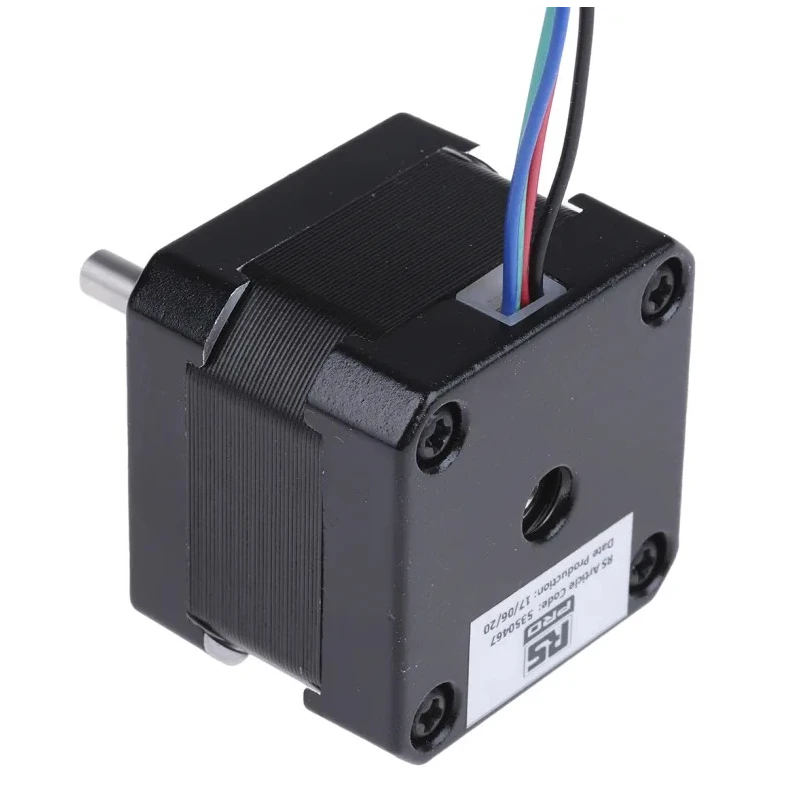

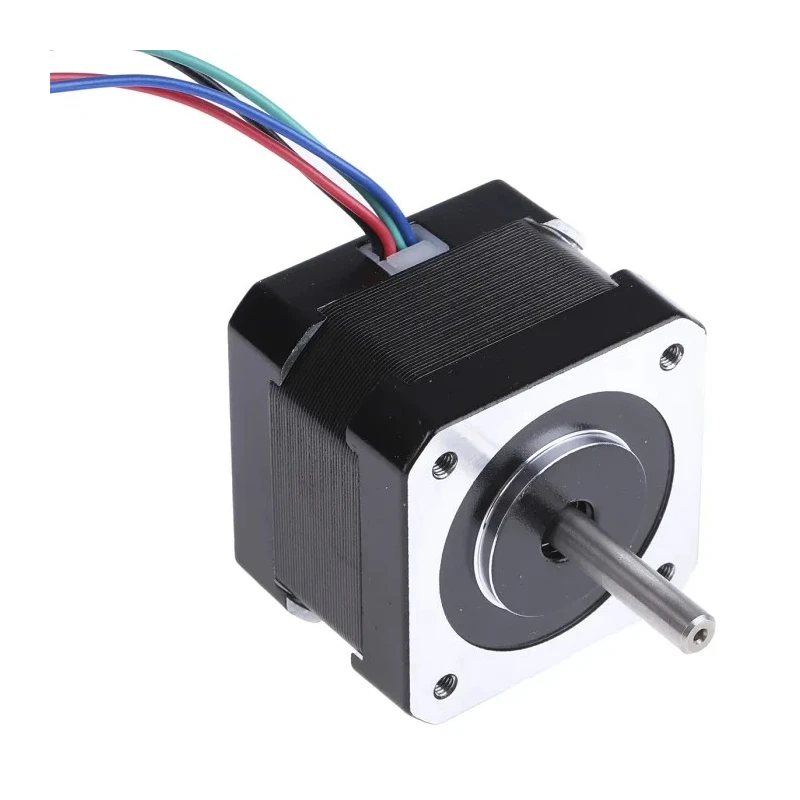

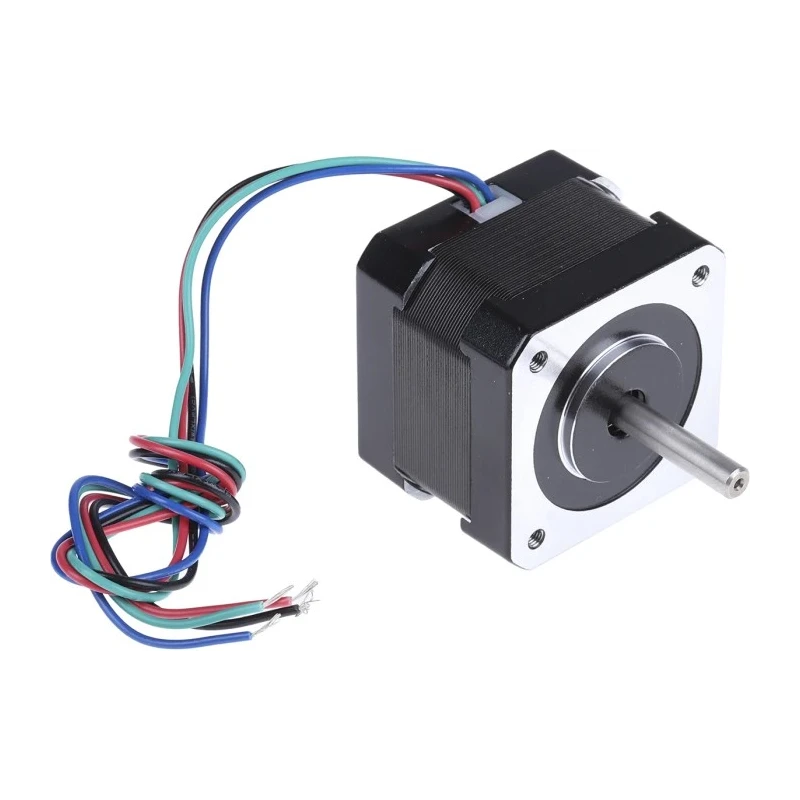

RS PRO Stepper Motor 2.8V, 0.22Nm Torque, 1.8° Step Angle, 42.3 x 42.3 mm Frame, 5 mm Shaft 535-0467

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Stepper Motor 2.8V, 0.22Nm Torque, 1.8° Step Angle, 42.3 x 42.3 mm Frame, 5 mm Shaft 535-0467

Name: RS PRO Stepper Motor 2.8V, 0.22Nm Torque, 1.8° Step Angle, 42.3 x 42.3 mm Frame, 5 mm Shaft 535-0467
Brand: RS PRO
SKU: 195107
Price: 48.9 USD
Availability: InStock



Category Stepper Motors Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	2.8V
Brand	RS PRO
Model	535-0467
Depth	33mm
IP Rating	IP54, IP65
Current Rating	1.33A
Frame Size	42.3 x 42.3 mm
Output Speed	186rpm
Shaft Diameter	5mm
Shaft Length	22mm
Standards/Approvals	RoHS Compliant
Step Angle	1.8°
Holding Torque	0.22Nm
Winding Arrangement	Unipolar, Bipolar
Number of Pole Pairs	1
Detent Torque	72mNm
RS PRO Unipolar Hybrid Stepper Motor 1.8°, 70mNm, 5 V dc, 500 mA, 6 WiresBrand	RS PRO

Key Features

The step angle of 1.8° allows fine motor positioning accuracy.
Holding torque is 0.22 Nm, suitable for moderate load tasks.
Designed with a 42.3 x 42.3 mm frame size and 5 mm shaft diameter for compact installations.
Incorporates hybrid stepper technology with unipolar and bipolar winding configurations.
The shaft length is 22 mm with a motor depth of 33 mm.
Provides output speed of 186 rpm and detent torque of 72 mNm.
IP54 and IP65 ratings ensure protection against dust and water ingress.
Compliance with RoHS standards guarantees environmentally safe materials and manufacturing processes.

Product Description

RS PRO 535-0467 Stepper Motor is a high-quality hybrid stepper motor with a step angle of 1.8°, holding torque rated at 0.22 Nm, and voltage rating of 2.8V. This 42.3 x 42.3 mm frame motor features a 5 mm diameter shaft, 22 mm shaft length, and 33 mm depth, designed for precise positioning and controlled motion in automation and industrial equipment.

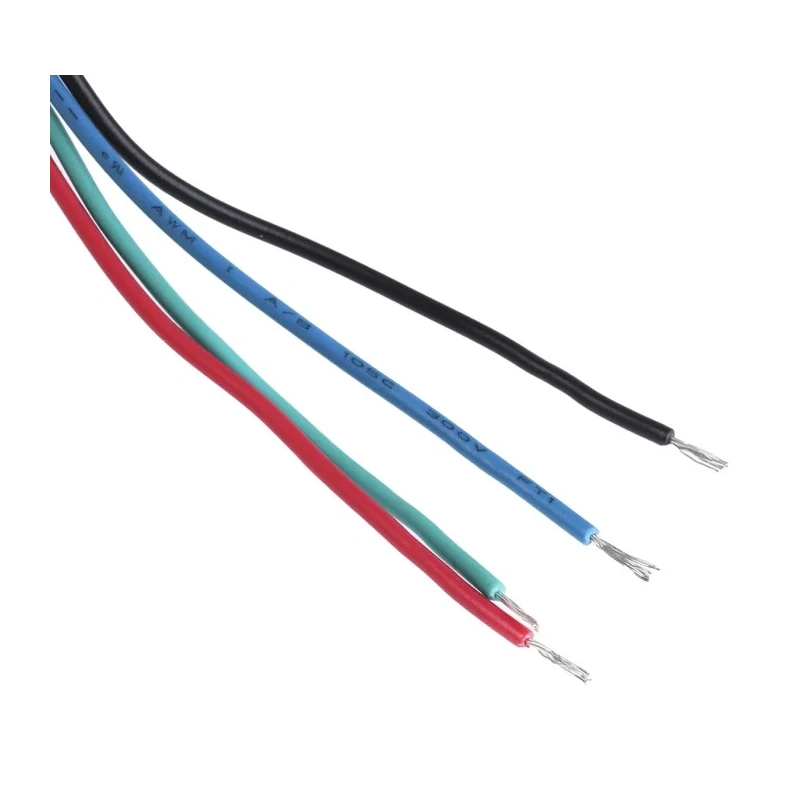

This stepper motor integrates permanent magnet and variable reluctance motor technologies, enabling efficient power usage and detailed control especially at slower speeds. The motor’s four-wire bipolar winding arrangement provides flexible connectivity options for various motor driver configurations.

Constructed to meet RoHS compliance, it ensures reduced hazardous substances, supporting environmental safety. Thanks to an IP54 and IP65 ingress protection rating, the motor resists ingress of dust and splashing water, making it suitable for industrial and commercial environments including manufacturing, laboratory automation, and HVAC systems.

Typical applications include use in precision devices such as linear actuators, goniometers, rotation stages, optics equipment, camera lenses, DVD players, and 3D printers, where controlled and repeatable movements are critical.

The step angle of 1.8° ensures fine positioning accuracy. Holding torque of 0.22 Nm supports moderate mechanical loads. Voltage rating is 2.8V with a current rating of 1.33 A. Compact 42.3 x 42.3 mm frame accommodates tight installation spaces.

IP54 and IP65 rated for water and dust resistance. Four-wire bipolar winding supports versatile motor control schemes. Manufactured under RoHS compliance for safer environmental use. Output speed of 186 rpm delivers smooth operation.

Detent torque of 72 mNm enhances motor stability when unpowered. Designed and tested for consistency and quality under RS PRO brand standards.

This RS PRO Stepper Motor 535-0467 is a reliable solution for industrial, laboratory, automation, and commercial applications requiring precise motion control. Explore more products in the RS PRO range with guaranteed quality and tested performance.
