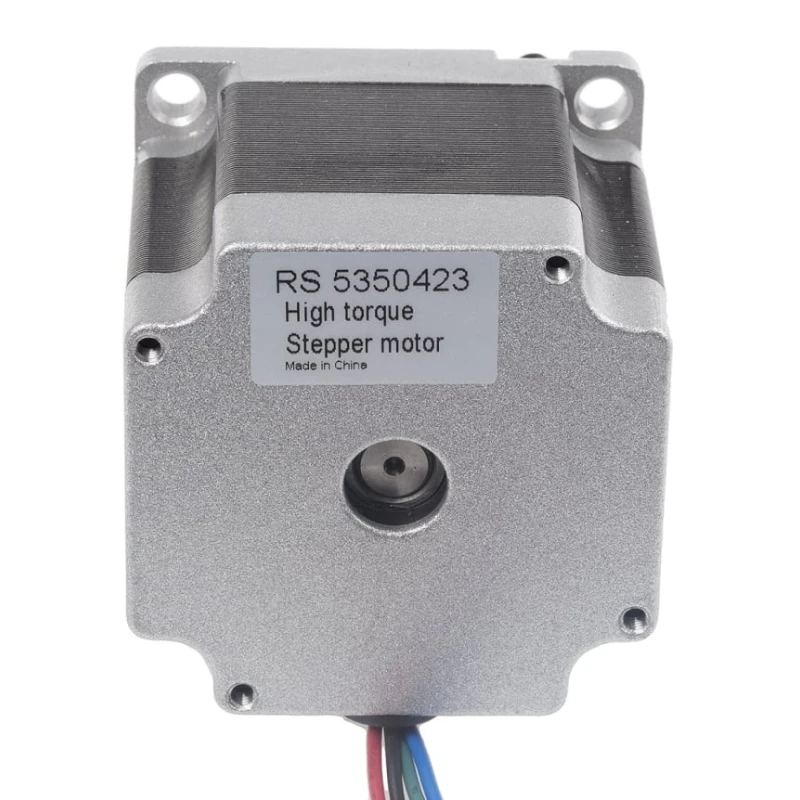

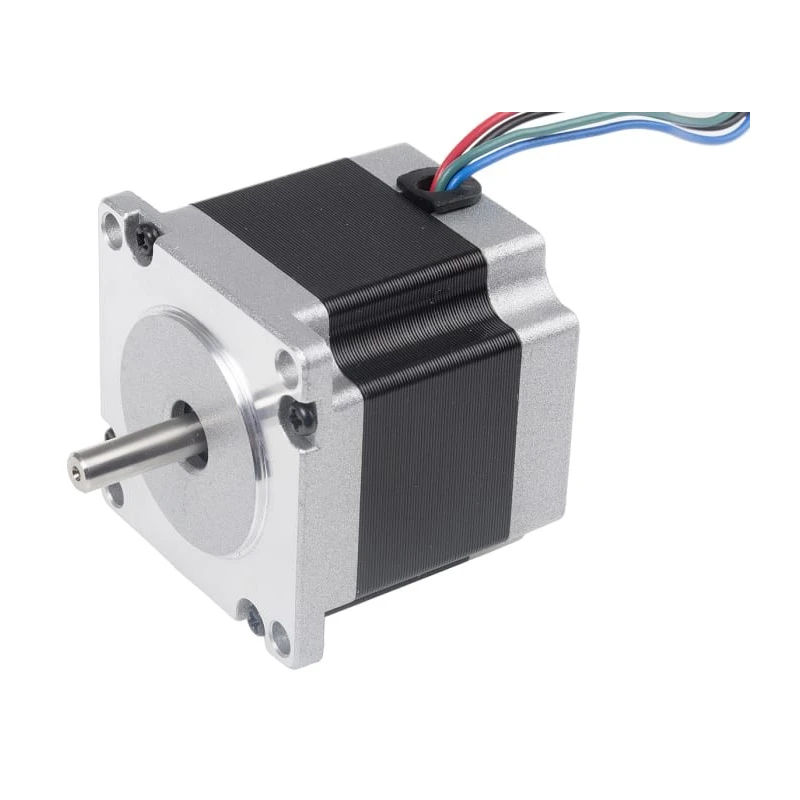

RS PRO Hybrid Permanent Magnet Stepper Motor 2.3V, 1Nm Holding Torque, 1.8° Step Angle, 56.4 x 56.4 mm Frame Size 535-0423

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Hybrid Permanent Magnet Stepper Motor 2.3V, 1Nm Holding Torque, 1.8° Step Angle, 56.4 x 56.4 mm Frame Size 535-0423

Name: RS PRO Hybrid Permanent Magnet Stepper Motor 2.3V, 1Nm Holding Torque, 1.8° Step Angle, 56.4 x 56.4 mm Frame Size 535-0423
Brand: RS PRO
SKU: 195101
Price: 69.29 USD
Availability: InStock



Category Stepper Motor Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	2.3V
Brand	RS PRO
Model	535-0423
Depth	51mm
Current Rating	2.8A
Frame Size	56.4 x 56.4 mm
Shaft Diameter	6.35mm
Shaft Length	19mm
Standards/Approvals	RoHS Compliant
Step Angle	1.8°
Holding Torque	1Nm
Detent Torque	35mNm

Key Features

This hybrid permanent magnet stepper motor delivers a step angle of 1.8 degrees.
The frame size measures 56.4 x 56.4 mm suitable for compact applications.
Equipped with a 6.35 mm diameter shaft and 19 mm shaft length for robust mechanical coupling.
Rated current of 2.8 A and resistance per phase of 0.83 ohms ensure efficient operation.
Detent torque of 35 mNm reduces unwanted movement when unpowered.
Depth of the motor is 51 mm enabling easy integration in devices.
Features four wires for electrical connections supporting precise digital control.
Compliant with RoHS standards ensuring reduced environmental impact.

Product Description

RS PRO 535-0423 is a hybrid permanent magnet stepper motor engineered for precise and efficient position control in industrial automation. Operating at a supply voltage of 2.3 volts, it provides a holding torque of 1 newton meter and a fine step angle of 1.8 degrees, ensuring reliable operation in applications demanding high accuracy.

The motor’s frame size is 56.4 by 56.4 millimeters, with a shaft diameter of 6.35 millimeters and shaft length of 19 millimeters, allowing robust mechanical coupling and easy installation in compact assemblies. Its rated current is 2.8 amperes with a phase resistance of 0.83 ohms, providing efficient electrical performance while limiting energy loss.

This stepper motor features a 51 mm depth, making it suitable for integration in tight spaces within CNC machinery, 3D printers, fluid dispensing pumps, laboratory instruments, and packaging equipment. The detent torque of 35 millinewton meters helps maintain position stability when unpowered, reducing unwanted drift.

Equipped with four electrical wires, the motor supports precise open-loop digital control, essential for applications requiring exact positioning without feedback systems. The RoHS compliance underscores its environmentally friendly production, limiting hazardous substances.

Manufactured in China, the RS PRO 535-0423 combines durability with performance, making it a reliable choice for engineers and technicians in automation, robotics, and manufacturing industries.

This hybrid stepper motor supports accurate positioning with a 1.8° step angle. Offers 1 Nm holding torque for stable operation. Compact frame size of 56.4 x 56.4 mm fits diverse equipment. 6.35 mm diameter shaft ensures mechanical strength.

Low resistance per phase (0.83 Ω) improves electrical efficiency. Detent torque of 35 mNm aids in holding position when unpowered. Four-wire design enables straightforward electrical integration. RoHS compliant for reduced environmental impact.

Manufactured in China, ensuring quality production standards. Explore comprehensive Stepper Motor solutions in the Motors & Pumps category at EnvMart for various industrial, laboratory, and manufacturing applications.
