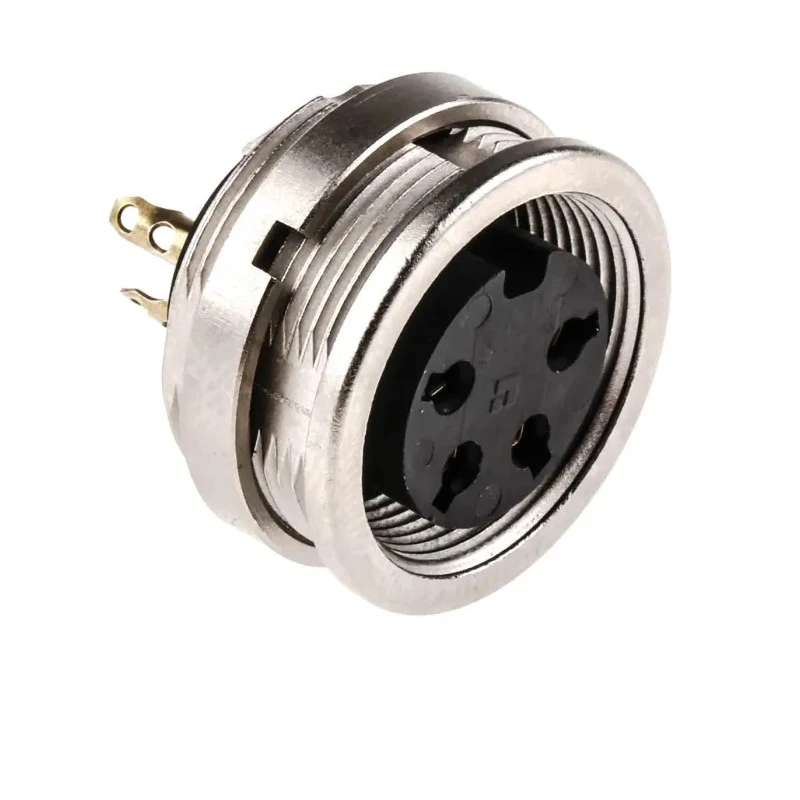

Lumberg 304 4 Pole Straight Standard DIN Socket 250V AC 5A IP68 Threaded Panel Mount Female 0304 04

Free Delivery in India | Lowest Global Shipping Charges

Lumberg 304 4 Pole Straight Standard DIN Socket 250V AC 5A IP68 Threaded Panel Mount Female 0304 04

Name: Lumberg 304 4 Pole Straight Standard DIN Socket 250V AC 5A IP68 Threaded Panel Mount Female 0304 04
Brand: LUMBERG
SKU: 194887
Price: 8.63 USD
Availability: InStock



Category DIN Socket Brand LUMBERG Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Brand	Lumberg
Orientation	Straight
Current	5A
Model	0304 04
IP Rating	IP68
Mount Type	Panel Mount
Housing Material	Die Cast Zinc
Contact Material	Brass
Series	304
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Pole Format	4
Contact Plating	Gold over Silver
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female
Mating Type	Threaded
Connector Size	Standard
DIN Number	DIN EN 60529

Key Features

Features a durable die cast zinc housing for robust protection.
Contacts are brass with gold over silver plating ensuring excellent conductivity.
Operates reliably between -40°C and 85°C temperature range.
Front mount with threaded joint and solder termination for secure connection.
Complies with DIN EN 60529 standard for IP68 waterproof protection.
Suitable for automation, control engineering, and medical instrumentation applications.
Provides long bend protection and low contact resistance ≤5mohm.
Designed as a panel mount female connector with 4 poles arranged in a circular pattern.

Product Description

Lumberg 0304 04 4 Pole Straight Standard DIN Socket operates at 250V AC voltage with 5A current rating and meets DIN EN 60529 standards offering IP68 waterproof protection. This panel mount female socket features a threaded mating design and solder termination, optimized for robust industrial and electronic applications.

The housing is constructed from die cast zinc for durability in harsh environments while the brass contacts plated with gold over silver ensure excellent electrical conductivity and resistance to corrosion. Engineered to operate effectively within temperature ranges from -40°C to 85°C, this connector provides reliable performance.

Ideal for automation technology, control engineering, medical instrumentation, MIDI instruments, and portable video devices, this DIN socket supports secure and reliable connections in demanding settings. The front mount with threading allows easy panel installation and long bend protection enhances mechanical durability.

The connector features four poles arranged in a standard circular pattern, female contact gender, and complies with relevant IEC standards such as IEC 61076-2-106 and IEC60130-9. It is manufactured in China ensuring consistent quality.

Durable die cast zinc housing for enhanced protection. Brass contacts with gold over silver plating for superior conductivity. Temperature range suitability from -40°C to 85°C. Front panel mount design with threaded mating and solder terminations.

IP68 rated protection against dust and water ingress. Compliant with DIN EN 60529 and IEC standards. Applications include automation, control systems, medical devices, and multimedia instruments. Four Pole configuration supporting 250V AC and 5A current.
