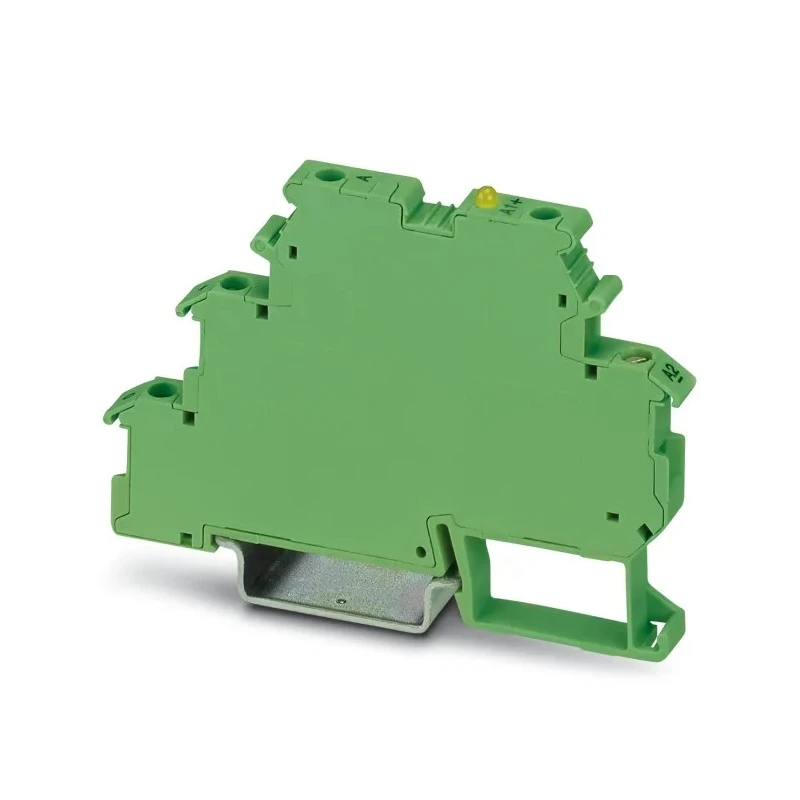

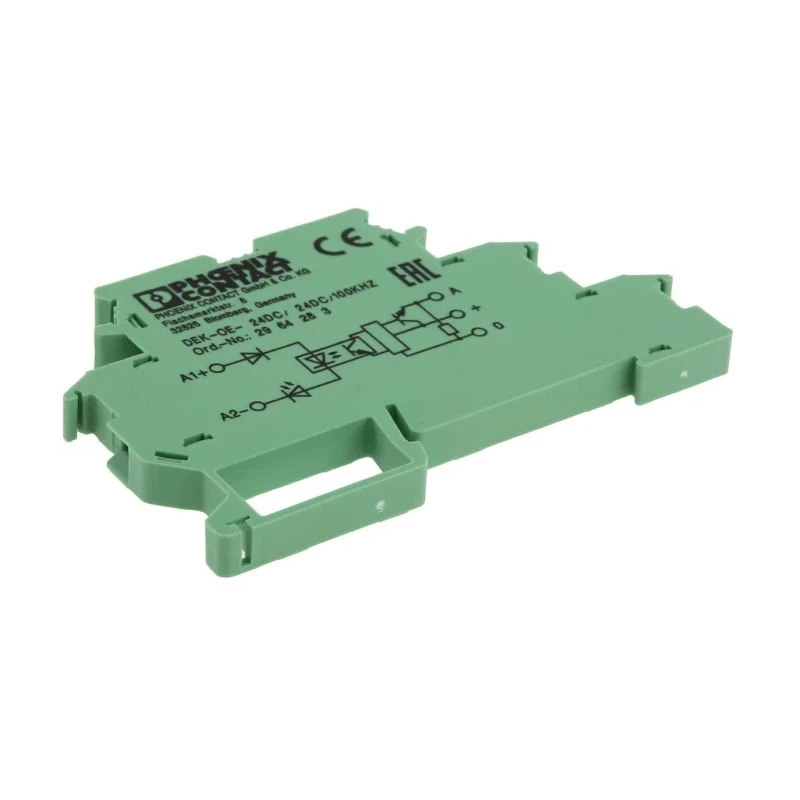

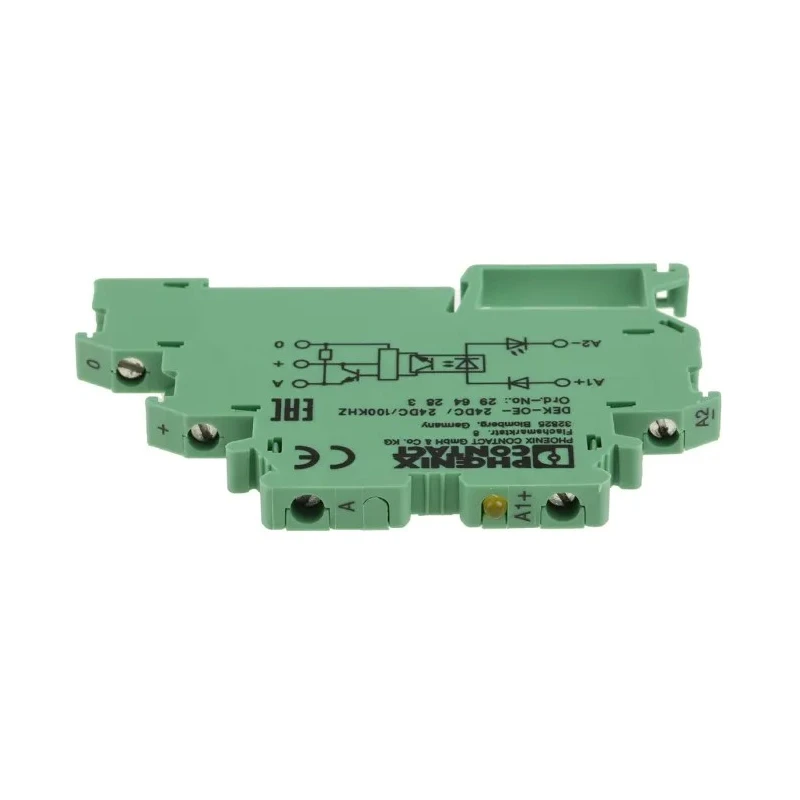

Phoenix Contact Solid State Relay DEK-OE- 24DC/24DC/100KHZ, DIN Rail Mount, 300V Control and Load Voltage, 100kHz 2964283
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Height | 80mm |
| Length | 6.2mm |
| Model | 2964283 |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Series | DEK-OE- 24DC/24DC/100KHZ |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 300V |
Key Features
- Compact DIN rail mount design with versatile installation options.
- High maximum load and control voltage of 300V suitable for various applications.
- 100kHz transmission frequency ensures fast switching performance.
- SPST contact configuration with screw terminal type for secure connections.
- Wide operating temperature range from -20°C to 60°C for harsh environments.
- Equipped with built-in LED indicator for operational status monitoring.
- Compliance with IEC 60947-5-1 standards ensuring quality and safety.
- Robust construction with overvoltage category II testing at 2.5kV AC.
Product Description
Phoenix Contact 2964283 DEK-OE- 24DC/24DC/100KHZ series solid state relay offers advanced control functionality with a high maximum load and control voltage of 300V, mounted easily on DIN rails.
The relay features a low current rating of 6mA, making it energy efficient and equipped with a built-in LED indicator for simple operating voltage monitoring. It is designed to perform reliably within an extended temperature range of -20°C to +60°C, suitable for industrial and commercial environments.
This model complies with IEC 60947-5-1 standards, ensuring international acceptance for control-circuit devices and switching elements. Its robust construction includes an overvoltage category II rating and 2.5kV AC test voltage for enhanced electrical surge protection.
The compact form factor of 6.2mm width and 80mm height allows installation in constrained spaces, and the screw terminal type supports a wide conductor cross-section from 0.2 to 2.5mm², including both rigid and flexible wiring. The single-pole single-throw (SPST) contact configuration offers straightforward switching functionality.
Typical applications include industrial automation, signal conditioning, building automation, and control subsystems. The relay's solid state design avoids moving parts, ensuring long service life and reduced maintenance.
Compact DIN rail mount design with versatile installation options. 300V maximum load and control voltage for demanding applications. High-frequency switching at 100kHz transmission frequency for rapid control. SPST contact configuration with reliable screw terminals.
Wide operation temperature range supports extreme environmental conditions. Built-in LED for easy monitoring of relay status and health. Compliance with IEC 60947-5-1 for quality and safety assurance. Robust electrical surge protection with 2.5kV AC test voltage rating.
Supports a broad conductor cross-section range from 0.2 to 2.5mm². Compact and space-saving physical dimensions suitable for dense installations. Package contains one Phoenix Contact DEK-OE- 24DC/24DC/100KHZ solid state relay. This product is manufactured in China and shipped new in its original packaging.
Explore our Electronics & Electricals category for a wide selection of Solid State Relays and related industrial automation products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load voltage for this solid state relay is 300V.
This model operates within a temperature range of -20°C to +60°C.
It features a single-pole single-throw (SPST) contact configuration.
The relay is designed for DIN rail mounting, allowing for easy installation.
The relay has a width of 6.2mm and a height of 80mm.
It uses screw terminals that support a conductor cross-section from 0.2 to 2.5mm².
The relay operates at a transmission frequency of 100kHz.
This model complies with IEC 60947-5-1 standards, ensuring quality and safety.
The product is manufactured in China.
Typical applications include industrial automation, signal conditioning, building automation, and control subsystems.
Yes, it is equipped with a built-in LED indicator for operational status monitoring.
The relay has an overvoltage category II rating with a test voltage of 2.5kV AC.
