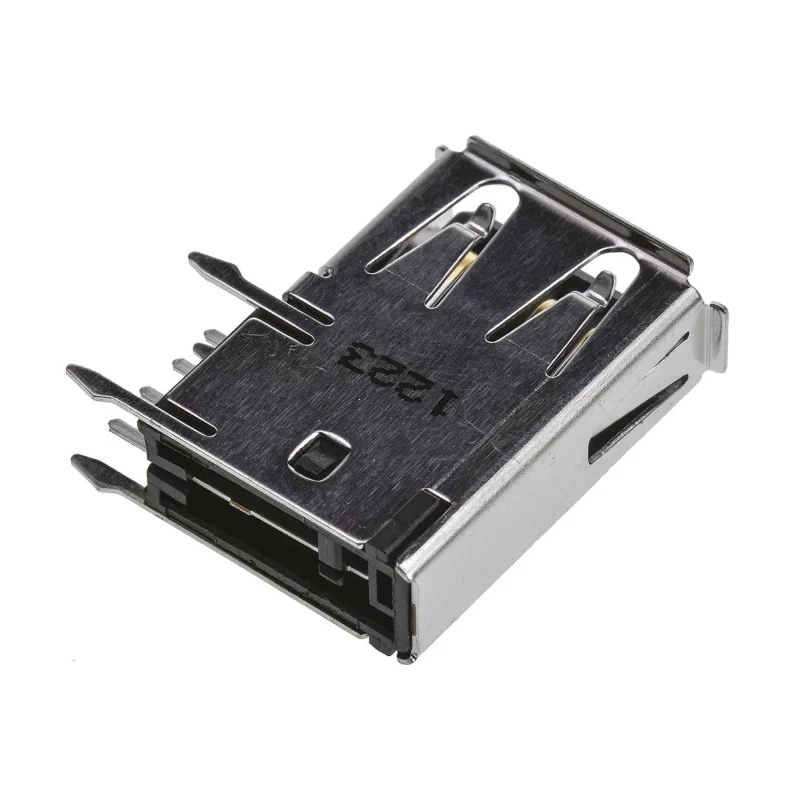

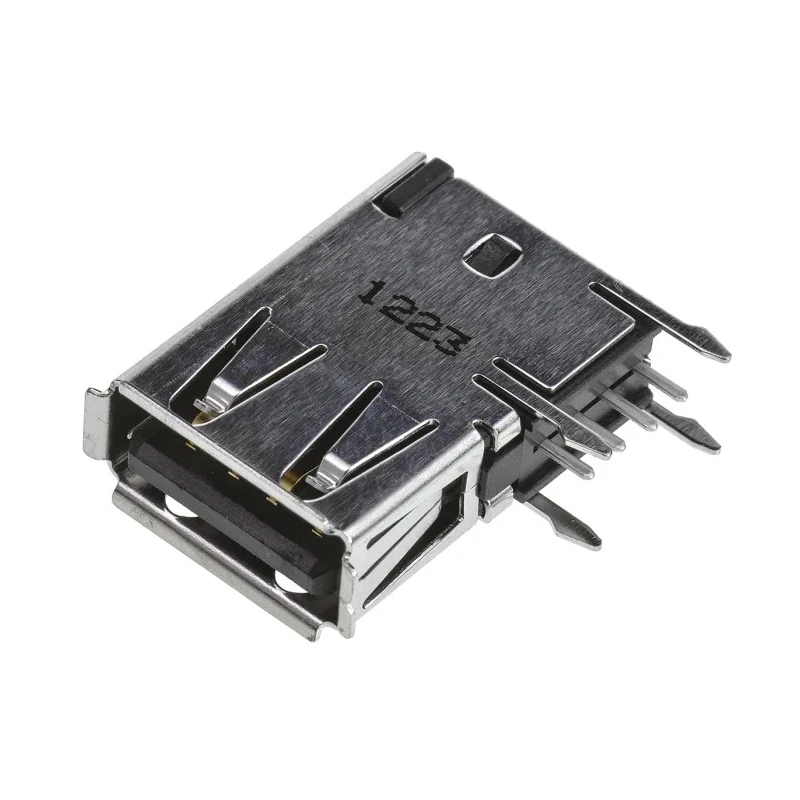

TE Connectivity Right Angle Through Hole Female 1 Port USB Type A USB 2.0 Connector 292336-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Model | 292336-1 |
| Mount Type | Through Hole |
| Contact Material | Phosphor Bronze |
| Series | 2923 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | USB 2 |
| USB Type | USB Type A |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Supports USB 2.0 for data transfer speeds up to 480 Mbps.
- Right angle orientation provides space-efficient PCB mounting.
- Through hole mount type ensures stable soldered connection.
- Contact material is phosphor bronze for reliable conductivity.
- Operates reliably between -55°C and 85°C temperature range.
- Rated for 1A current and 30V voltage maximum.
- Integrated locking mechanism provides enhanced retention force of 40 N.
- Compact and robust glass filled thermoplastic housing.
Product Description
TE Connectivity 292336-1 USB Type A right angle female connector is a high-quality USB 2.0 compliant component designed for reliable electronic connectivity. It features a through hole mount type that allows stable soldering onto PCBs, ideal for industrial and commercial electronic equipment.
The connector is constructed with a glass filled thermoplastic housing, making it compact and robust for various demanding environments. Its right angle orientation saves board space, and the phosphor bronze contact material ensures excellent electrical conductivity and corrosion resistance.
Operating temperature ranges from -55°C to 85°C ensure durability in varied climates and conditions. The connector supports a maximum current of 1A and voltage of 30V. It incorporates an integrated locking mechanism that delivers a strong retention force of 40 N to maintain secure connections under vibration or movement.
Supports USB 2.0 standard with transfer rates up to 480 Mbps. Right angle design enhances PCB layout flexibility. Phosphor bronze contacts for durability and conductivity. Through hole mount provides strong mechanical stability.
Wide operating temperature range ensures versatile industrial use. Robust glass filled thermoplastic construction. Locking mechanism prevents accidental disconnects. Rated for 1A current and 30V voltage. Ideal for machine vision, human machine interface, printers, barcode readers, and mass storage devices.
The product is made in China and belongs to the 2923 series of USB Connectors. Explore more connectors and related electronic components to support your industrial or laboratory applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports data transfer speeds of up to 480 Mbps, compliant with the USB 2.0 standard.
The connector operates reliably between -55°C and 85°C, making it suitable for various environments.
It is rated for a maximum current of 1A and a maximum voltage of 30V.
This model features a through hole mount type, ensuring a stable soldered connection on PCBs.
The contacts are made of phosphor bronze, which provides reliable conductivity and corrosion resistance.
Yes, it incorporates an integrated locking mechanism that provides a strong retention force of 40 N to prevent accidental disconnects.
The connector has a right angle orientation, which helps save space on the PCB layout.
This model features one port, specifically designed as a female USB Type A connector.
The housing is made of glass filled thermoplastic, providing robustness for demanding environments.
It belongs to the 2923 series of USB connectors.
This connector is made in China.
It is suitable for applications such as machine vision, human machine interfaces, printers, barcode readers, and mass storage devices.
