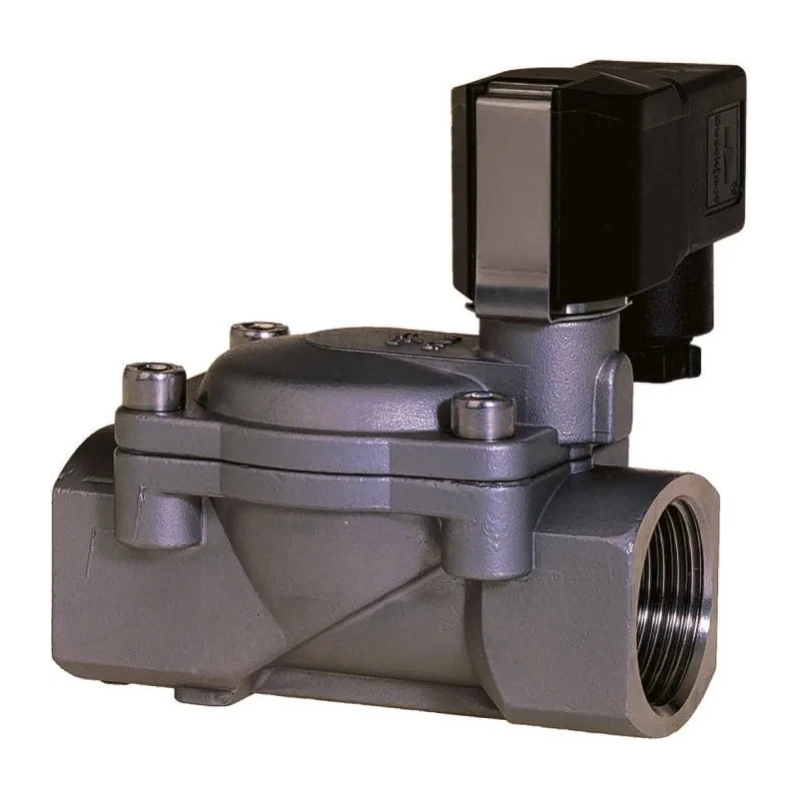

Buschjost Solenoid Valve 2 Port NC G1/2 Threaded Inlet and Internal Thread Outlet Stainless Steel Body 8273200.9136.02400
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Buschjost |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 16 bar |
| Inlet Connection Type | Threaded |
| Outlet Connection Type | Internal Thread |
| Series | 82730 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 12mm |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | Class x II 2 GD EEx m II T4 T 130 °C |
| Standards/Approvals | UL Listed, EN 60529:IP65, CSA, DIN VDE 0580 |
| Inlet Port Size | G1/2 |
| Default Valve Position | NC |
| Flow Factor Kv | 3.8m³/h |
| Standards/ApprovalsUL Listed, EN 60529 | IP65, CSA, DIN VDE 0580 |
Key Features
- Features a stainless steel body for enhanced durability and corrosion resistance.
- Equipped with G1/2 threaded inlet and internal thread outlet connections.
- Operates under a maximum pressure of 16 bar and temperature range from -10°C to 50°C.
- Orifice diameter is 12 mm, providing efficient flow control with a Kv factor of 3.8m³/h.
- Includes servo assist for improved valve operation and performance.
- Certified for hazardous area use with Class x II 2 GD EEx m II T4 T 130 °C rating.
- Designed primarily for controlling slightly aggressive gases in industrial applications.
Product Description
Buschjost 8273200.9136.02400 is a high-quality solenoid valve designed for precise control of fluid flow in industrial environments. This 2-port valve operates normally closed (NC) and features a robust stainless steel body, making it suitable for handling slightly aggressive gases with durability and long service life.
It supports a supply voltage of 24V DC and is engineered for operational reliability with a maximum pressure rating of 16 bar and temperature tolerance from -10°C up to 50°C. The valve’s G1/2 inlet and outlet ports utilize threaded and internal thread connections, facilitating secure and leak-proof installation in piping systems.
The valve features a 12 mm orifice diameter, providing a flow factor Kv of 3.8m³/h, enabling efficient fluid control and regulation. The integrated servo assist mechanism enhances valve responsiveness and operational performance.
Certified to meet stringent safety and quality standards, including UL Listed, EN 60529:IP65, CSA, and DIN VDE 0580, this valve is also suitable for hazardous area installation with a Class x II 2 GD EEx m II T4 T 130 °C hazardous area certification.
Common applications for this solenoid valve include a variety of industrial, manufacturing, HVAC, laboratory, and fluid power systems requiring reliable valve actuation for slightly aggressive gases.
Features a stainless steel body for enhanced durability and corrosion resistance. Equipped with G1/2 threaded inlet and internal thread outlet connections. Operates under a maximum pressure of 16 bar and temperature range from -10°C to 50°C.
Orifice diameter is 12 mm, providing efficient flow control with a Kv factor of 3.8m³/h. Includes servo assist for improved valve operation and performance. Complies with standards including UL Listed, EN 60529:IP65, CSA, and DIN VDE 0580 to ensure safety and quality.
Certified for hazardous area use with Class x II 2 GD EEx m II T4 T 130 °C rating. Designed primarily for controlling slightly aggressive gases in industrial applications.
Explore the full range of Buschjost Solenoid Valves and industrial valves on EnvMart for reliable fluid control solutions tailored to demanding industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 16 bar.
This model operates within a temperature range of -10°C to 50°C.
It features a G1/2 threaded inlet and an internal thread outlet connection.
The orifice diameter of the valve is 12 mm.
The flow factor Kv for this solenoid valve is 3.8 m³/h.
This valve requires a supply voltage of 24V DC for operation.
Yes, it is certified for hazardous area use with a Class x II 2 GD EEx m II T4 T 130 °C rating.
It complies with several standards including UL Listed, EN 60529:IP65, CSA, and DIN VDE 0580.
The default valve position of this model is normally closed (NC).
This solenoid valve is designed primarily for controlling slightly aggressive gases in various industrial applications.
The country of origin for this solenoid valve is Germany.
The body of this valve is made from stainless steel, enhancing its durability and corrosion resistance.
