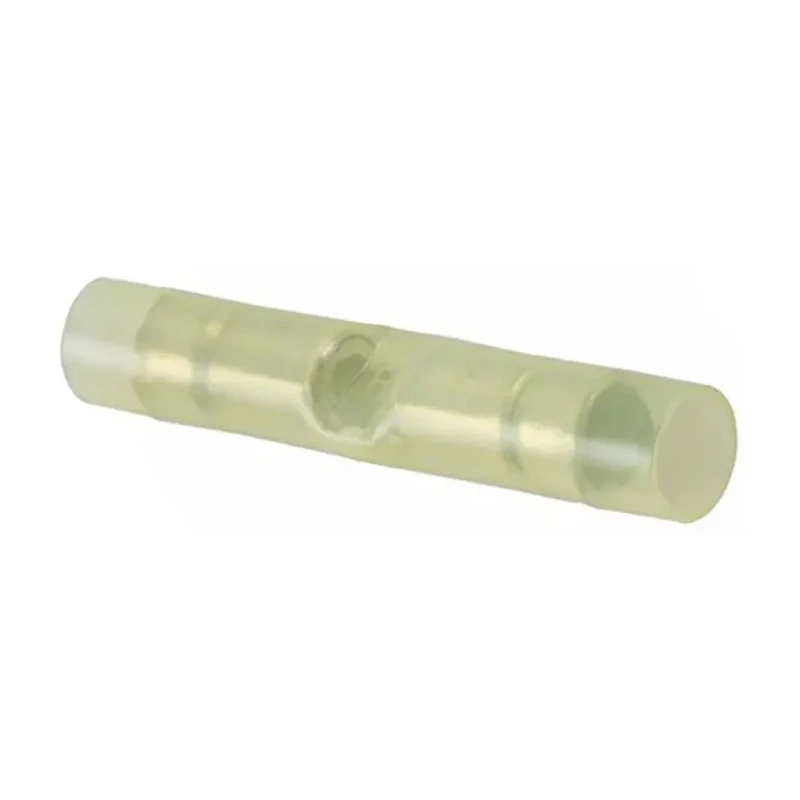

TE Connectivity PIDG Butt Splice Connector Yellow, Insulated Nylon, Copper Tin Plated, 10 AWG, Overall Length 42.06mm 320570

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG Butt Splice Connector Yellow, Insulated Nylon, Copper Tin Plated, 10 AWG, Overall Length 42.06mm 320570

Name: TE Connectivity PIDG Butt Splice Connector Yellow, Insulated Nylon, Copper Tin Plated, 10 AWG, Overall Length 42.06mm 320570
Brand: TE Connectivity
SKU: 194570
Price: 2.14 USD
Availability: InStock



Category Splice Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Diameter	5.59mm
Brand	TE Connectivity
Colour	Yellow
Model	320570
Insulation	Insulated
Overall Length	42.06mm
Contact Material	Copper
Series	PIDG
Insulation Material	Nylon
Standards/Approvals	RoHS
Contact Plating	Tin
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	10AWG
Splice Type	Butt
BUT SPLICE YELLOWBrand	TE Connectivity
Yel PIDG butt splice terminal2.7-6.6sqmmBrand	TE Connectivity

Key Features

Constructed with high conductivity copper and tin plating for enhanced contact and reliability.
Features nylon insulation in yellow color for easy wire size identification.
Overall connector length is precisely 42.06 mm with a diameter of 5.59 mm.
Serrated wire barrel ensures maximum tensile strength and uniform crimping.
Suitable for demanding applications in instrumentation, panel wiring, aerospace, and automotive sectors.
Complies with RoHS standards for environmental safety and quality assurance.
Copper sleeve provides improved wire insulation support and durability after crimping.

Product Description

TE Connectivity 320570 PIDG Butt Splice Connector is a pre-insulated diamond grip wire crimp splice terminal engineered for reliable electrical connections in challenging environments.

The connector features a high conductivity copper body with a tin-plated contact surface, enhancing electrical performance and corrosion resistance. It includes a nylon yellow insulation sleeve that is color-coded for quick wire size recognition, compatible with wire sizes from 22 AWG minimum to 10 AWG maximum.

The overall length of the connector measures 42.06 mm, with a diameter of 5.59 mm, ensuring a compact form factor suitable for tight wiring installations. Serrations inside the wire barrel provide maximum electrical contact and tensile strength after crimping.

The copper sleeve surrounding the barrel supports insulation integrity by allowing wire bending without insulation damage or conductor breakage. This design ensures uniform crimping pressure, resulting in strong and consistent terminal connections.

This PIDG splice connector complies with RoHS environmental standards and meets or exceeds MIL-T-7928 Type II Class 1 and 2 specifications, making it suitable for industrial, aerospace, automotive, instrumentation, lighting, power supply, and panel box applications.

High conductivity copper body with tin plating. Nylon insulation sleeve with yellow color coding for 10 AWG wires. Serrated barrel for reliable and strong electrical connections. Copper sleeve enhances insulation support after crimping.

Meets RoHS compliance for environmental safety. Compact dimensions suitable for various wiring applications.

This Splice Connector is part of the TE Connectivity PIDG series, known for precision and durability in electrical connection solutions. It is ideal for professional electrical wiring installations requiring dependable, uniform crimps and long-lasting performance.

Explore more high-quality electronic and power connectors in the Power Connectors category on EnvMart for a range of applications from industrial equipment to commercial electrical systems.
