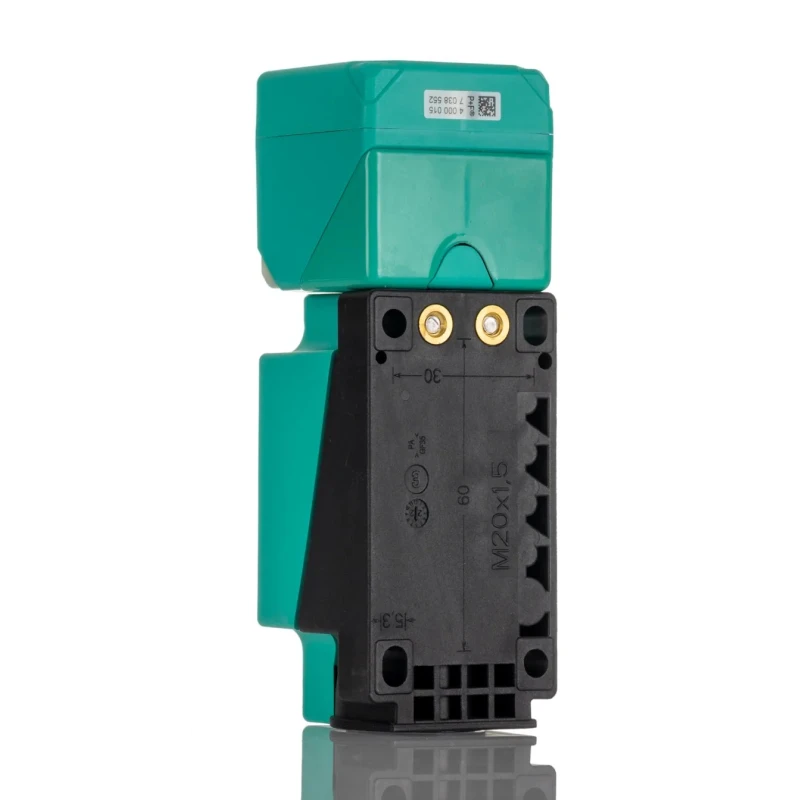

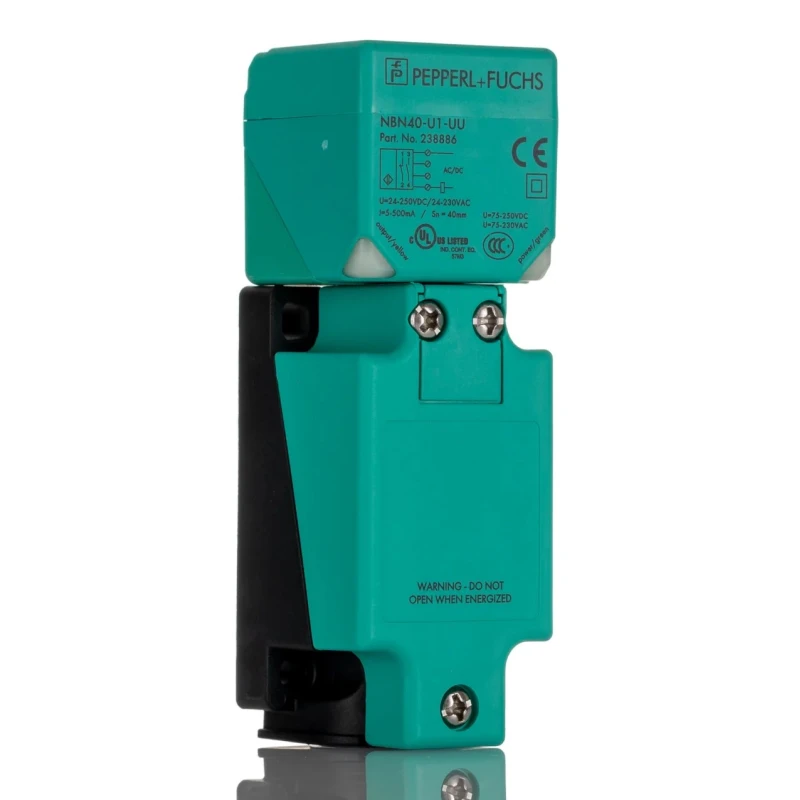

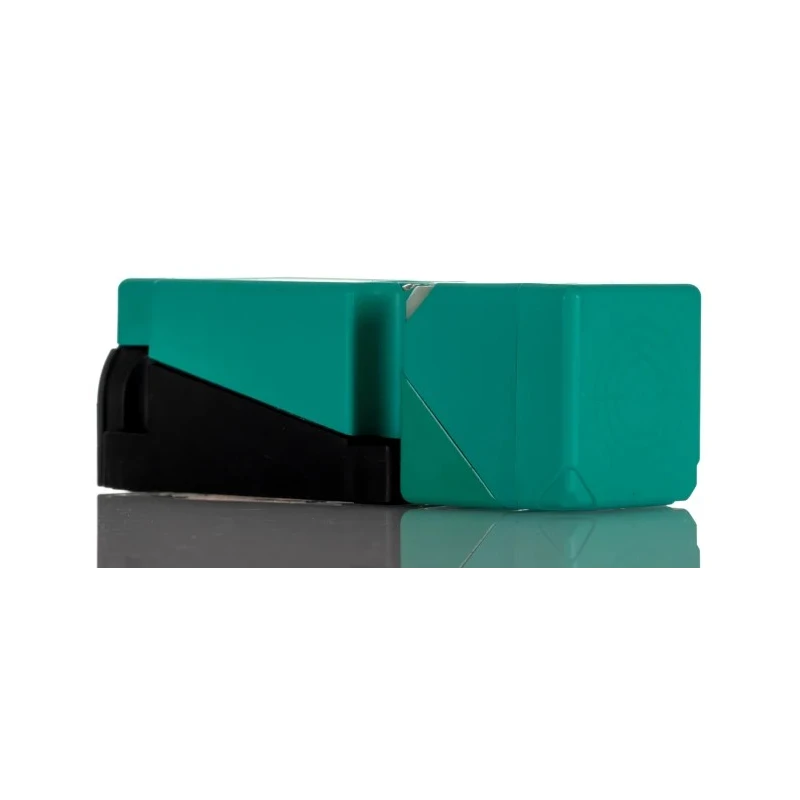

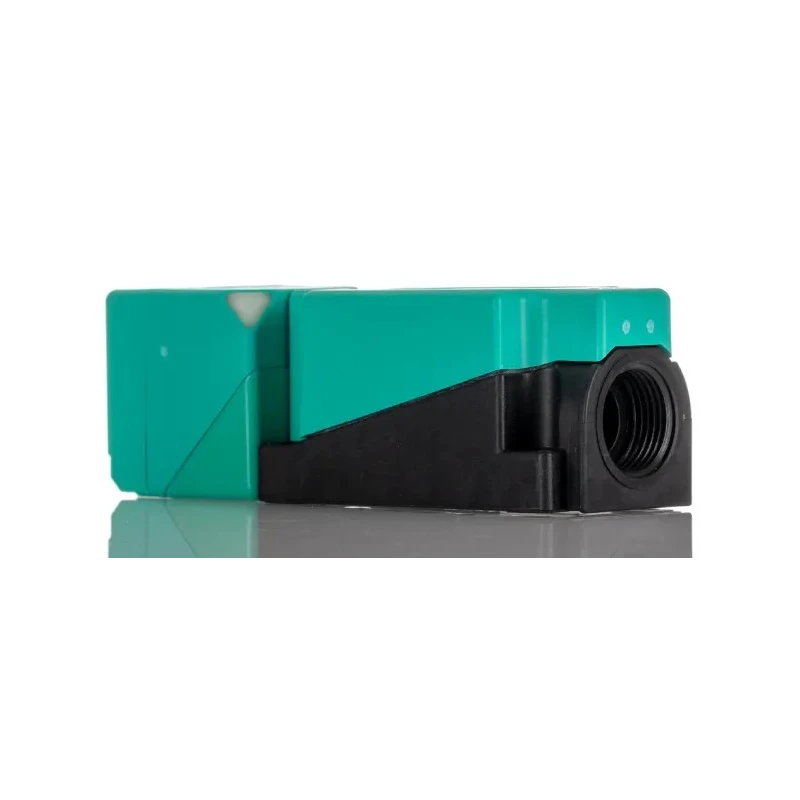

Pepperl + Fuchs Block Inductive Proximity Sensor M20 x 1.5 2-Wire 300V AC 253V AC 300V DC 500mA NBN40-U1-UU

Pepperl + Fuchs NBN40-U1-UU Block Inductive Proximity Sensor features a robust polyamide 66 and metal block body with M20 x 1.5 thread size, providing a reliable 40mm maximum detection range for automation and control systems. This sensor operates on a 2-wire principle, supporting a maximum supply voltage of 300V AC and 300V DC, with a switching current rated up to 500mA and a switching frequency of 100Hz.

Its IP67 rating ensures durable protection against dust and water, making it suitable for demanding industrial environments. The sensor's non-flush mounting design and terminal base connections enable straightforward installation and maintenance. The multi-positional sensor head and visible LED status display facilitate easy monitoring during operation. Designed according to stringent standards like CCC, CE, cULus, EN 60947-5-2, and IEC 60947-5-2, this unshielded sensor ensures accurate proximity detection within a temperature range of -25°C to 85°C.

The Varikont series to which this sensor belongs is known for its versatility and compact design, ideal for use in sectors such as industrial automation, manufacturing, material handling, and control systems. This block-style Inductive Proximity Sensor is a dependable component for detecting metal objects in process lines, robotics, and machine safety interlocks.

The sensor features a block-style body with polyamide 66 and metal construction. It operates with a 2-wire output type and supports a maximum supply voltage of 300V AC. Provides unshielded detection with a maximum detection distance of 40mm.

IP67 rated housing ensures protection against dust and water ingress. Capable of switching currents up to 500mA with a maximum switching frequency of 100Hz. Designed for non-flush mounting with terminal base connections for easy installation.

Operational temperature range from -25°C to 85°C withstands industrial environments. Equipped with LED status display and multi-positional sensor head for versatile applications. Conforms to standards including CCC, CE, cULus, EN 60947-5-2, and IEC 60947-5-2.

Explore more Pepperl + Fuchs proximity sensors and automation products on EnvMart to enhance your industrial control systems.
