Lascar PanelPilot Digital Panel Multifunction Meter TFT Display Current Measurement SGD 24-M-IP420

Free Delivery in India | Lowest Global Shipping Charges

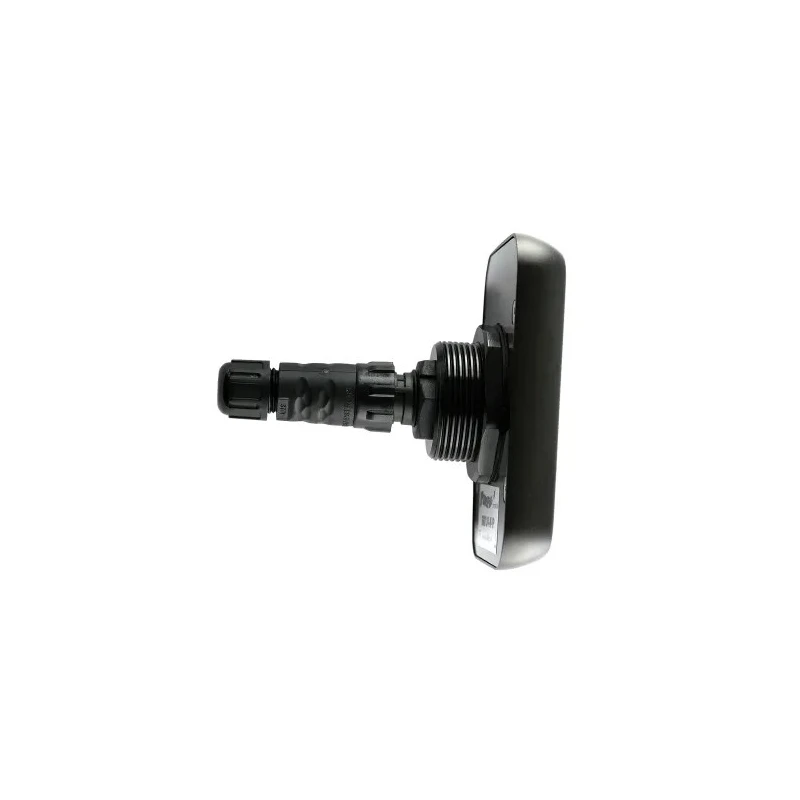

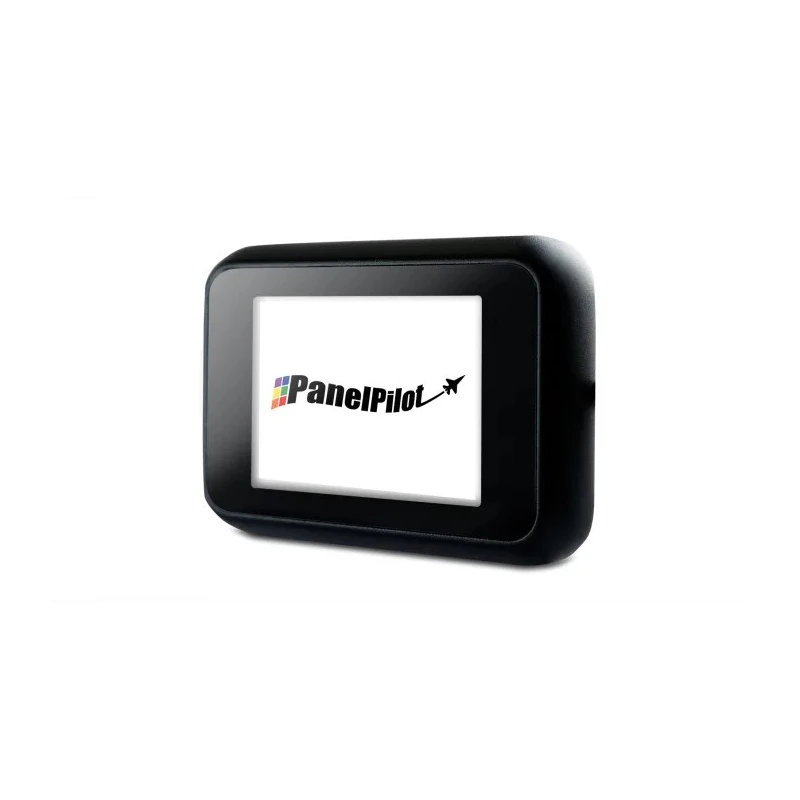

Lascar PanelPilot Digital Panel Multifunction Meter TFT Display Current Measurement SGD 24-M-IP420

Name: Lascar PanelPilot Digital Panel Multifunction Meter TFT Display Current Measurement SGD 24-M-IP420
Brand: Lascar
SKU: 194108
Price: 236.39 USD
Availability: InStock



Category Multi-Function Panel Meter Brand Lascar Condition New

Specifications

Country of Origin	China
Display Type	TFT
Display	2.4" colour TFT screen
Brand	Lascar
Model	SGD 24-M-IP420
Depth	41.9mm
Series	PanelPilot
Maximum Operating Temperature	40°C
Meter Type	Digital
Minimum Operating Temperature	0°C
Interfaces	USB interface
Properties Measured	Current
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Minimum Measurement	0 V dc, 4 mA
Maximum Measurement	40 V

Key Features

Features a programmable 2.4" color TFT screen for clear multi-parameter display.
Operates within a 0°C to 40°C temperature range suitable for varied environments.
Provides 4-20mA analogue inputs with 0-40V DC measurement capability.
Enclosure is rated IP67 and NEMA 6, ensuring water and dust resistance.
Includes USB interface for programming and configuration with PanelPilot software.
Offers two analogue inputs along with alarm outputs for versatile control.
Compatible with Windows 7, 8.1, and 10 for easy software integration.
Applications include marine, industrial, test and measurement, and energy sectors.

Product Description

Lascar SGD 24-M-IP420 Digital Panel Multifunction Meter is designed for precise current measurement and control, featuring a 2.4" waterproof, programmable TFT color display housed in a robust IP67 and NEMA 6 rated enclosure. It supports 4-20mA analogue inputs and alarm outputs, ensuring flexibility and reliability in industrial, marine, energy, and test & measurement applications.

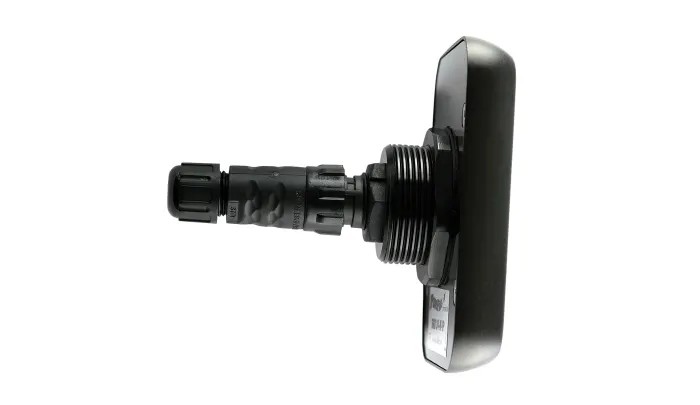

The meter operates within a temperature range of 0°C to 40°C and accommodates voltage measurements from 0 to 40V DC. The rugged design includes a scratch-resistant window to withstand harsh environments, making it ideal for demanding industrial automation tasks.

Users can utilize the PanelPilot software via the USB interface to customize display configurations including bar graphs, tank levels, analogue styles, and trend graphs with configurable colors, labels, and units for optimal monitoring.

This product complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring its suitability in environments requiring electrostatic discharge control. Programmable with USB interface for versatile customizations.

2 analogue inputs and alarm outputs for enhanced monitoring. Waterproof IP67 and NEMA 6 rated enclosure for durability. 2.4" TFT color display provides clear, customizable measurement visualization. Wide application range including marine, industrial automation, energy, and test & measurement.

The SGD 24-M-IP420 reflects Lascar's commitment to robust and user-configurable industrial instrumentation. Explore the Industrial Automation Systems category at EnvMart for more precision control devices suitable for your application needs.
